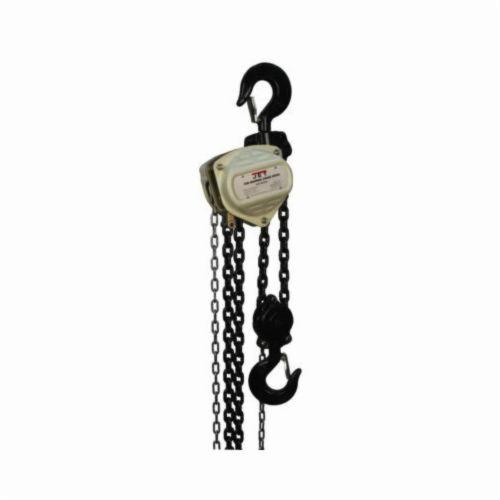

5-TON 20'-LIFT HAND CHAIN HOISTS JET101952
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
-
BrandJET®
-
UPC731325219012
-
Manufacturer Part NumberJT9-101952
-
CountryUSA
-
Load Capacity5 ton
-
Pull to Lift Rated Load90 lbf
-
TypeContractor Grade
-
SeriesS90
-
Brake TypeDual Pawl Weston
-
Lifting Height20 ft
- Durability, Weston style dual pawl brake system double pawl design increases safety
- Alloy steel hooks industrial rated hooks rotate 360 degrees for easy rigging, hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 80 black oxide coated load chain for durability
- Impact resistant covers that provide durability and protection
- Needle bearing design promotes long hoist life with low wear reducing downtime
- Smaller body and lightweight design for low headroom applications and use in confined areas
- 178 ft hand chain overhaul to lift load 1ft
- 2 falls
- 23-1/2 in headroom
- 10 x 30 mm load chain
-
Alternative Part Number101952
-
UNSPSC24101600
-
Standards/ApprovalsANSI/ASME B30.16 and HST-2 Standards|OSHA Regulations
