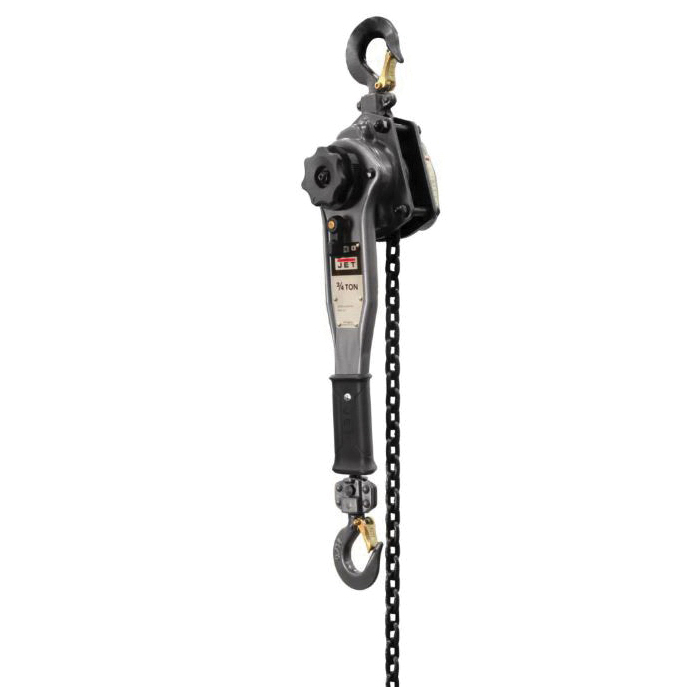

3/4-TON 20'-LIFT PULLERS JET187710
JET® JLP-A series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium duty industrial applications. The patented brake wear indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in 0.25 ton to 6 ton capacities with standard lifts of 5 ft, 10 ft, 15 ft and 20 ft. The JET® JLP-A series is the perfect choice for a contractor grade lever hoist.
-
BrandJET®
-
UPC731325473094
-
Manufacturer Part NumberJT9-287303
-
CountryUSA
-
Load Capacity3/4 ton
-
Pull to Lift Rated Load31 lb
-
Minimum Between Hooks12.79 in
-
TypeMini-Puller Safety
-
SeriesJLP-A
-
Hook Opening1-1/2 in
-
Dimensions5-5/6 in W
-
Brake TypeDouble Ratchet Pawl
-
Lever Length11.02 in
-
Lifting Height20 ft
- New innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
- New JET's improved easy free chain design is a two step, no load, free chaining system
- The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
- Industrial rated alloy steel hooks rotate 360 deg for easy rigging and slowly stretch to indicate an overload situation
- New redesigned ergonomic grip allows for greater operator control and increased comfort
- Secured with allen screws and lock nuts, the cast steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Optional shipyard hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
- Grade 80 black oxide coated load chain for added durability
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Impact resistant all steel construction for added durability and protection
- Load tested to 125% of capacity with certificate
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0576965 |
-
Alternative Part Number287303
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.21|HST-3
-
WarrantyLifetime
-
Specification Sheet
