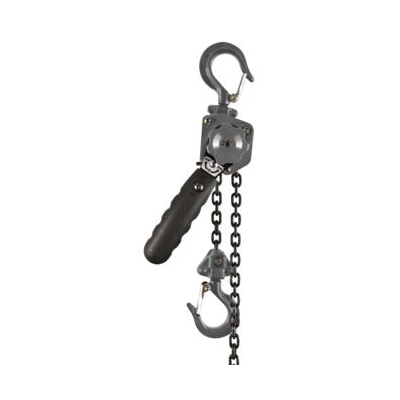

Jet Tools 1/2-TON 10'-LIFT HAND LEVER HOISTS JET 287201
JET® JLP-A series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium duty industrial applications. The patented brake wear indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in 0.25 ton to 6 ton capacities with standard lifts of 5 ft, 10 ft, 15 ft and 20 ft. The JET® JLP-A series is the perfect choice for a contractor grade lever hoist.
-
BrandJET®
-
UPC731325473049
-
Manufacturer Part NumberJT9-287201
-
CountryUSA
-
Load Capacity1/2 ton
-
Pull to Lift Rated Load86 lb
-
Minimum Between Hooks10.04 in
-
TypeMini-Puller Safety
-
SeriesJLP-A
-
Hook Opening1-3/8 in
-
Dimensions3-3/4 in W
-
Brake TypeDouble Pawl
-
Lever Length8.46 in
-
Lifting Height10 ft
- Weston style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Cast steel safety latches are secured with allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact design - smaller body and lightweight design for low headroom applications and use in confined areas
- Load tested to 125% of capacity with certificate
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0576960 |
-
Alternative Part Number287201
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.21|HST-3
-
WarrantyLifetime
-
Specification Sheet
