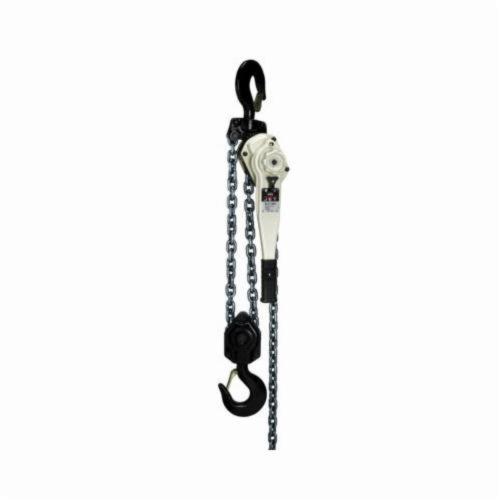

JET® 360005 JLH Lever Chain Hoist With Overload Protection, 6 ton Load, 5 ft H Lifting, 84 lb Rated
-
BrandJET®
-
UPC662755109508
-
Manufacturer Part Number360005
-
CountryUSA
-
Load Capacity6 ton
-
Chain MaterialGrade 100 Alloy
-
Pull to Lift Rated Load84 lb
-
SeriesJLH
-
Brake TypeDual Pawl Weston
-
Lever Length16-5/16 in
-
Lifting Height5 ft
- Weston style dual pawl brake system double pawl design increases safety
- Alloy steel hooks industrial rated hooks rotate 360 degrees for easy rigging, hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Safety, reliability and durability heavy duty construction for operation in severe industrial environments
- Caged needle bearing design- increases efficiency and promotes smooth operation extending the work life of the hoist
- Cast steel safety latches increased durability with heavy duty safety latches secured with Allen screws and lock nuts
- Load plates are heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
- All steel construction with impact resistant covers that provide durability and protection
- Patented fused brake design has proven durability that increases safety with a lifetime replacement warranty
- 2 falls
- 3/8 in lift per turn
- 21-1/5 in headroom
- 10 x 28 mm load chain
- Certification load tested to 125% of capacity with certificate
- Overload protection prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity
- Compact design- smaller body and lightweight design for low headroom applications and use in confined areas
-
Alternative Part NumberJLH-630WO-5
-
UNSPSC31162604
-
Standards/ApprovalsANSI/ASME B30.21 and HST-3 Standards|OSHA regulations
