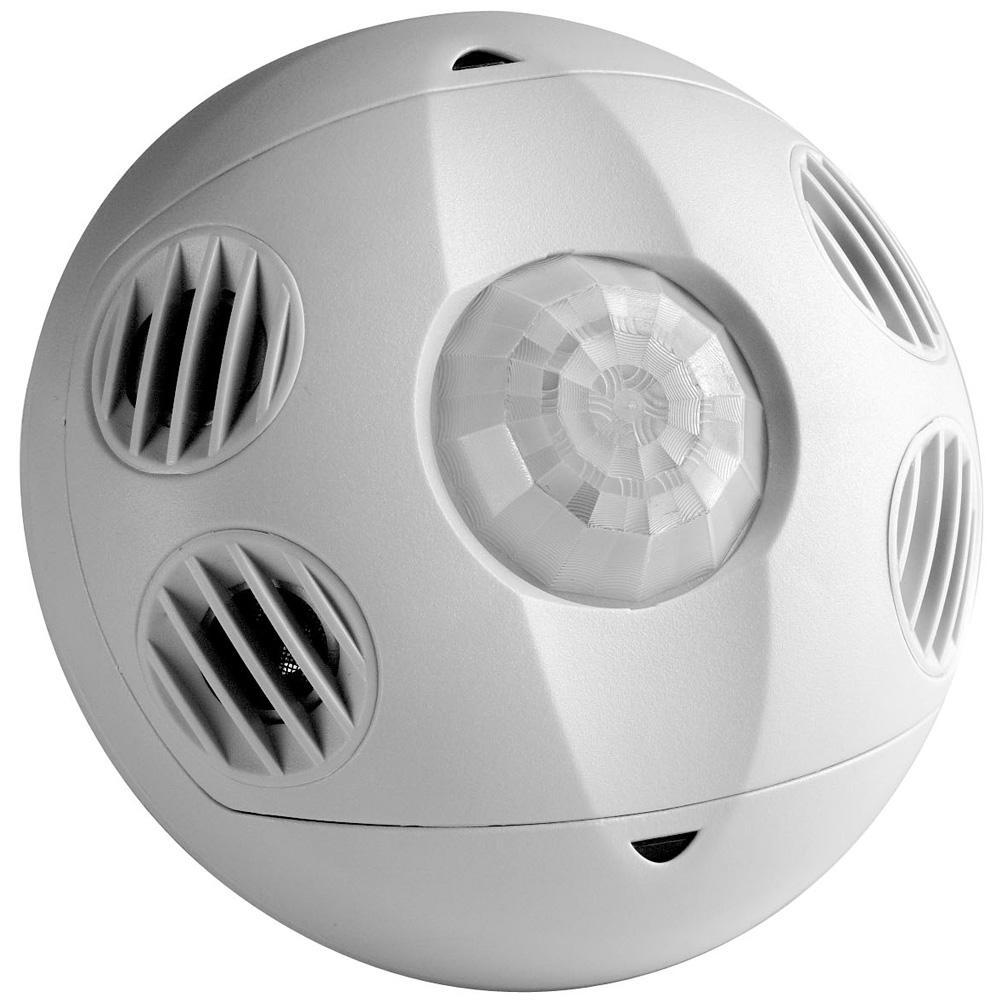

Leviton® OSC10-M0W Low Voltage Occupancy Sensor, 24 V DC, PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg Viewing, Ceiling Mounting
The most advanced sensor available. Combines multi-technology with all digital architecture. Eliminates false triggering. The result is a trouble free, install and forget solution for lighting control.
-
BrandLeviton®
-
UPC078477180570
-
Manufacturer Part NumberOSC10-M0W
-
CountryCanada
-
Temperature Rating32 to 104 deg F
-
MaterialPlastic
-
Time Delay30 s to 30 min
-
ColorOff-White
-
Response Frequency40 kHz
-
TypeLow Voltage
-
Connection TypeWired
-
Viewing Angle360 deg
-
Control OutputAutomatic On/Automatic Off
-
Voltage Rating24 V DC
-
Amperage Rating25 mA
-
Coverage1000 sq-ft
-
Sensor TypePIR/Ultrasonic
-
Dimensions4.2 in Dia x 1.571 in D
-
Lamp TypeLED
-
Mounting TypeCeiling
- Small size installed sensor appears almost invisible
- Fast simple installation easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
- Accurate, consistent switching occupant complaints are eliminated, lights are on when room is occupied, off when empty, annoying false Offs are minimized and lights on at night is eliminated
- Self-adapting an internal microprocessor continually analyzes, evaluates and adjusts settings, performance is kept at a maximum and user complaints are eliminated
- Maximum reliability, low cost all digital circuitry uses a minimum of components
- Non-volatile memory learned and adjusted settings saved in protected memory, power outages will not cause status loss
- Ambient light recognition the photocell prevents lights from turning on when room is adequately lit by natural light
-
Alternative Part Number12168443
-
UNSPSC41111961
-
IDEA Index ID12168443
-
Package DescriptionEACH
-
Standards/ApprovalsANCE Compliant|ASHRAE Standard 90.1 Compliant|CEC Title 20/24, cULus 9034, FCC Compliant|NOM 057
-
Warranty5 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
