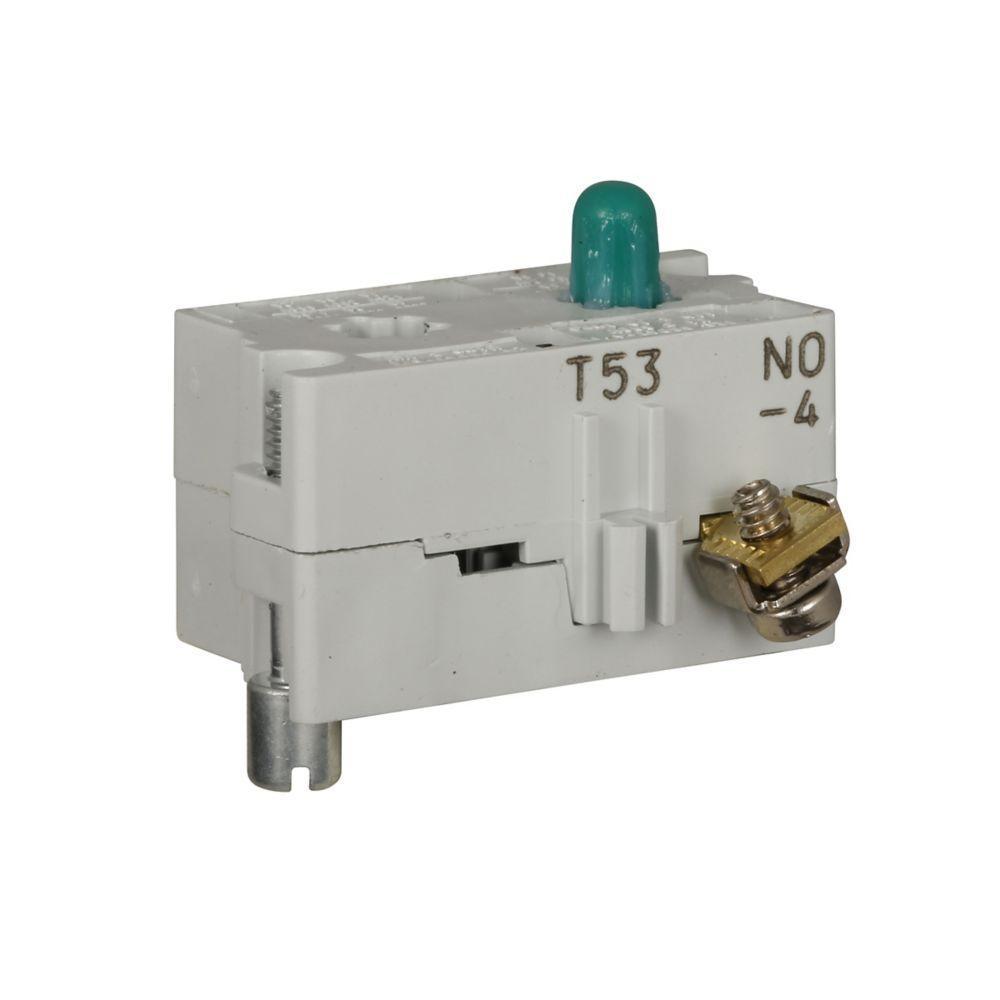

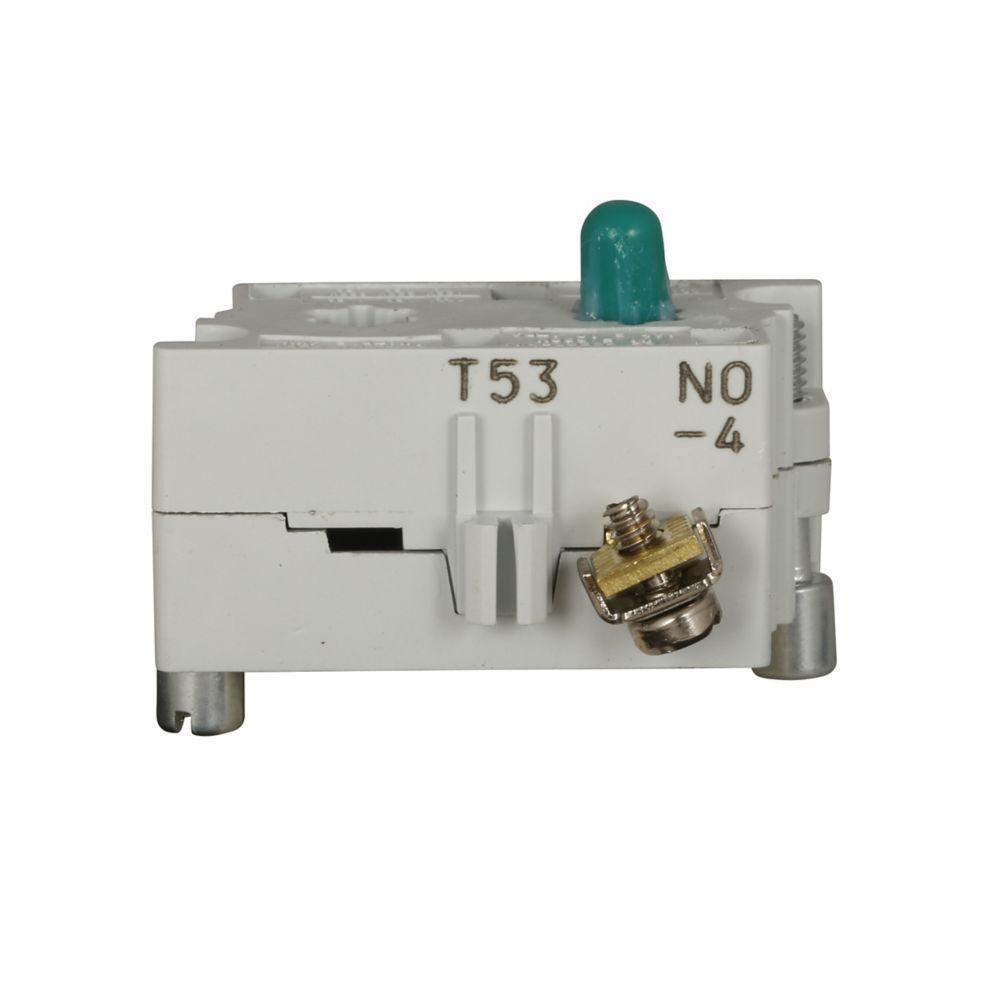

EATON 10250T53 Heavy Duty Contact Block, 30.5 mm, 1NO Contact, 10 A at 600 V AC, 5 A at 250 V DC Contact, Silver Contact, Momentary Action, Green/Red
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113203508
-
Manufacturer Part Number10250T53
-
CountryUSA|Canada
-
Terminal TypePressure
-
MaterialDie-Cast Zinc
-
ColorGreen/Red
-
TypeHeavy Duty
-
Contact Configuration1NO
-
Mounting TypeStackable
-
Contact Rating10 A at 600 V AC, 5 A at 250 V DC
-
NEMA RatingNEMA 3/3R/4/4X/12/13
-
ActionMomentary
-
Series10250T
-
Dimensions1.9 in L x 1.3 in W x 2.1 in H
-
Size30.5 mm
-
Enclosure TypeIP65
- Eaton's contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- The same durable construction is also available with the corrosive-resistant E34 line of pushbuttons
- Stack up to 6-blocks (6-circuits) unless otherwise noted
- For pushbutton control station
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 39R024 |
-
Alternative Part Number7342402
-
UNSPSC39122221
-
IDEA Index ID7342402
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA Certified,CE Marked
-
Specification Sheet
-
Technical Bulletin
