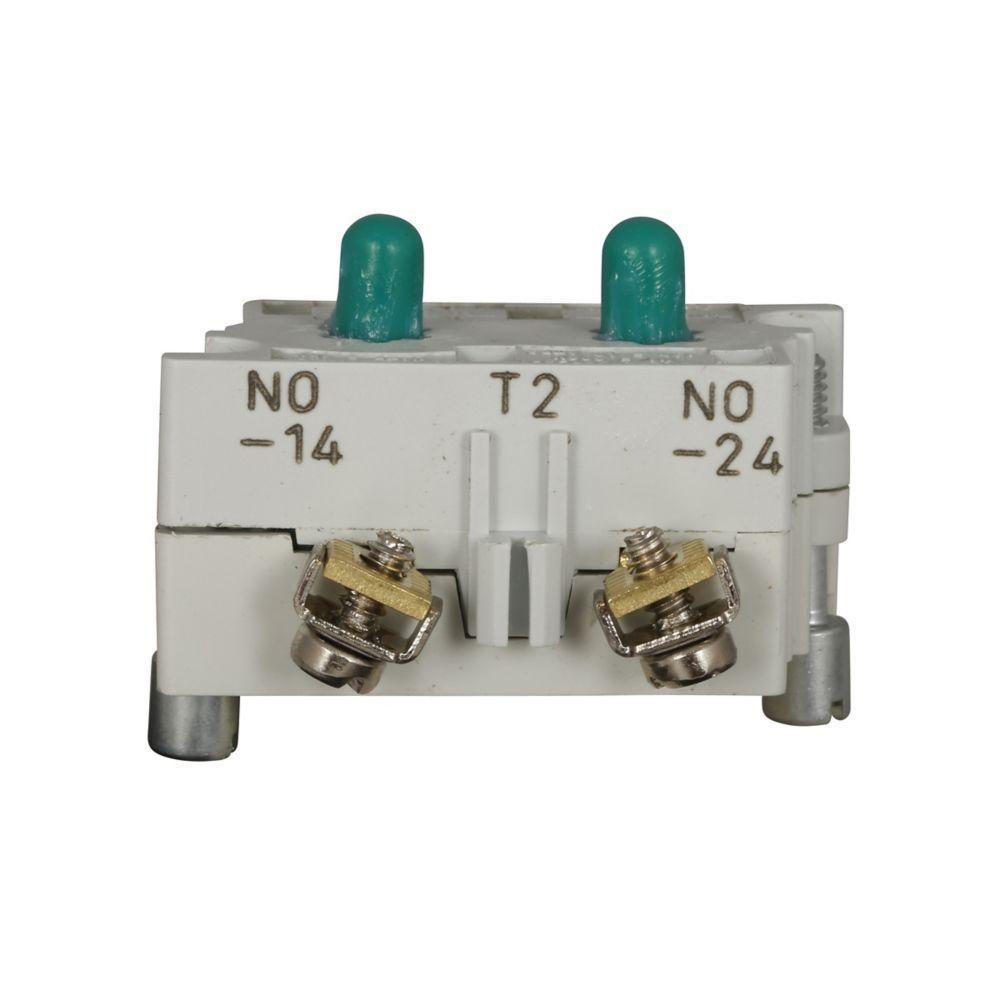

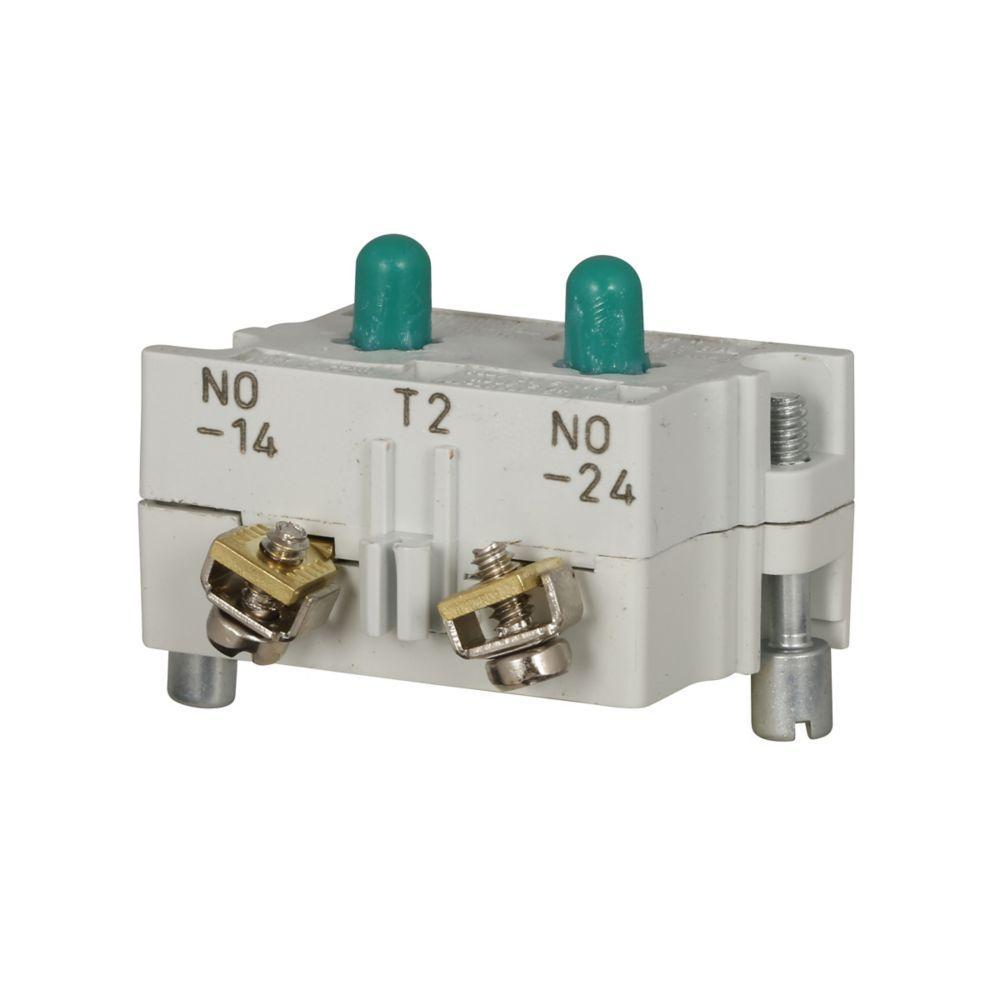

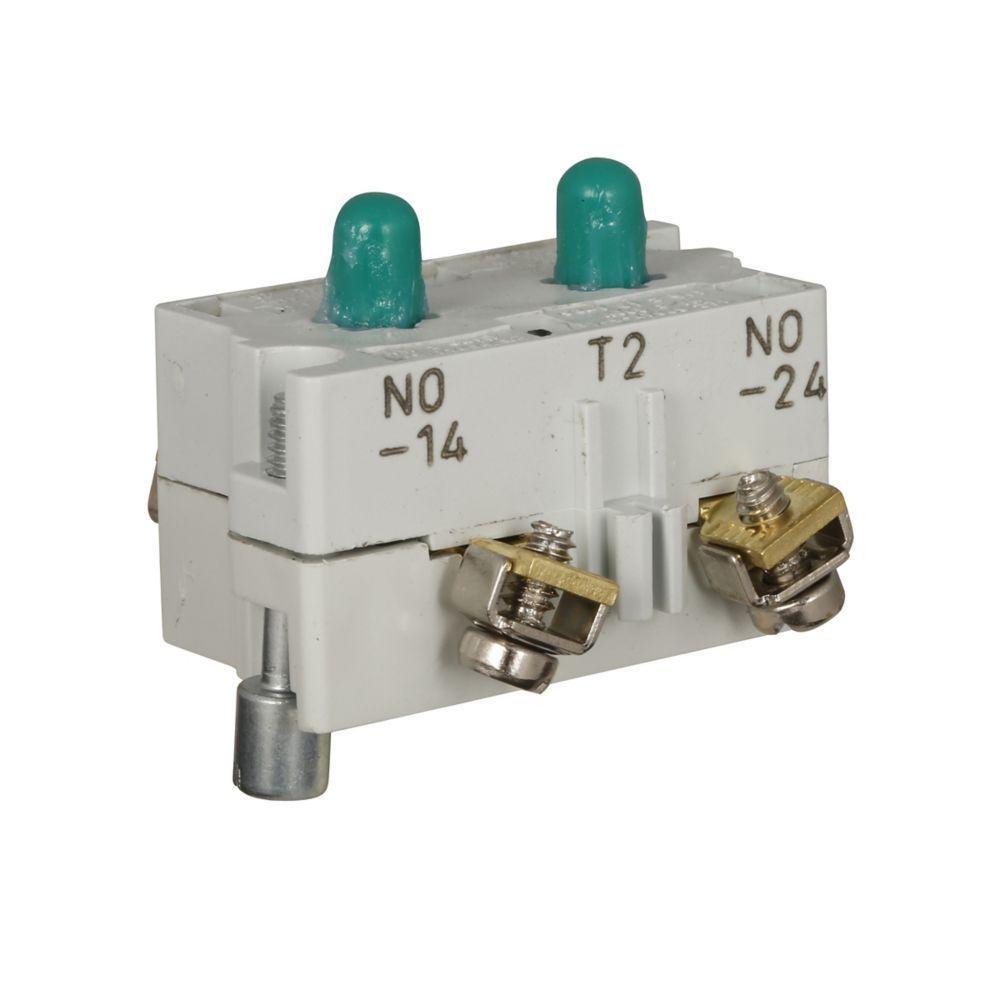

EATON 10250T2 Heavy Duty Contact Block, 30.5 mm, 2NO Contact, 10 A at 600 V AC, 5 A at 250 V DC Contact, Silver Contact, Black
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113203423
-
Manufacturer Part Number10250T2
-
CountryUSA|Canada
-
Terminal TypePressure
-
ColorBlack
-
TypeHeavy Duty
-
Contact Configuration2NO
-
Mounting TypeStackable
-
Contact Rating10 A at 600 V AC, 5 A at 250 V DC
-
NEMA RatingNEMA 3/3R/4/4X/12/13
-
Series10250T
-
Dimensions1.9 in L x 1.2 in W x 0.1 in H
-
Size30.5 mm
- Stack up to six blocks (12-circuits) unless otherwise noted
-
Alternative Part Number7342343
-
UNSPSC39122221
-
IDEA Index ID7342343
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed,CE Marked
-
Specification Sheet
-
Technical Bulletin
