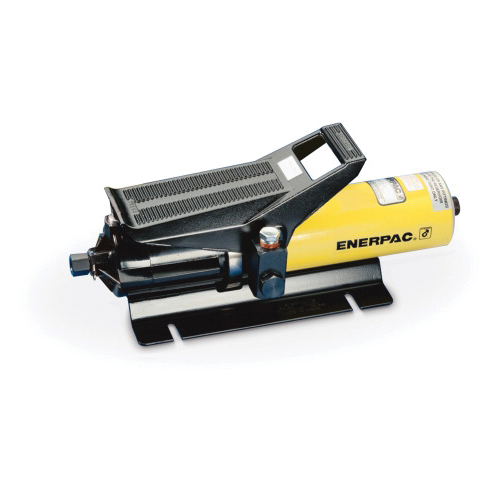

Enerpac® PA136 PA Series/Workholding Tools 3-Way 2-Position Advance/Retract Valve Hydraulic Air Pump, 120 cu-in/min At 0 psi Oil Displacement Rating, 3/8 NPT Fluid Port, 1/4-18 FNPT Air Inlet
Enerpac® PA136 PA Series/Workholding Tools 3-Way 2-Position Advance/Retract Valve Hydraulic Air Pump, 120 cu-in/min At 0 psi Oil Displacement Rating, 3/8 NPT Fluid Port, 1/4-18 FNPT Air Inlet
-
BrandEnerpac®
-
Manufacturer Part NumberPA136
-
CountryUSA
-
Capacity120 cu-in
-
Reservoir Capacity37 cu-in
-
Type3-Way 2-Position Advance/Retract Valve
-
Air Inlet1/4-18 FNPT
-
Air Pressure60 to 120 psi
-
Height5.71 in
-
Width14.69 in
-
SeriesPA Series/Workholding Tools
-
Sound Level80 dB
-
Oil Capacity36.6 cu-in
-
Oil Displacement Rating120 cu-in/min At 0 psi
- Patented air saver design minimal air usage for lower cost operation
- Quiet internal air muffler 80 dBa
- 360 deg swivel oil and air fittings for easier system setup
- External adjustable relief valve
- Built-in 3-way, 2-position valve provides advance retract cycle operation for single acting cylinders
-
UNSPSC40151533
-
Full Engineering Drawing
-
Catalog
