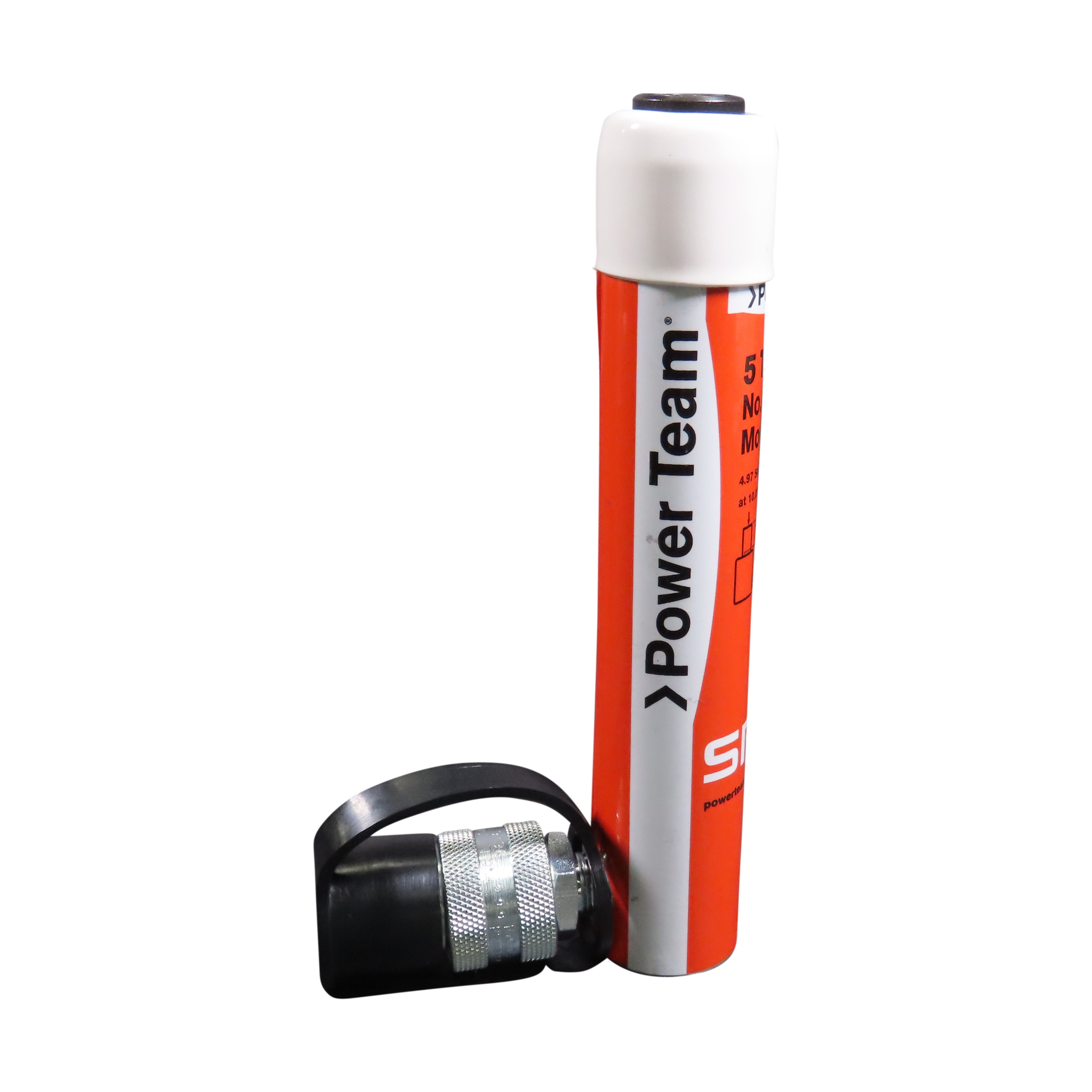

Power Team® C55C C Series General Purpose Single Acting Spring Return Hydraulic Cylinder, 5 ton Capacity, 1-1/8 in Dia Bore, 5-1/4 in L Stroke, 8-1/2 in H Retract, 1 in Dia Rod, 10061 psi
Power Team® C55C C Series General Purpose Single Acting Spring Return Hydraulic Cylinder, 5 ton Capacity, 1-1/8 in Dia Bore, 5-1/4 in L Stroke, 8-1/2 in H Retract, 1 in Dia Rod, 10061 psi
-
BrandPower Team®
-
UPC662536000338
-
Manufacturer Part NumberC55C
-
CountryUSA|Canada
-
Capacity5 ton
-
Port Size3/8 in NPTF
-
Pressure Rating10061 psi
-
TypeGeneral Purpose Single Acting Spring Return
-
Retract8-1/2 in H
-
Rod Diameter1 in
-
Mounting TypeBase
-
SeriesC Series
-
Housing MaterialSolid Steel
-
Dimensions1-1/2 in OD
-
Stroke Length5-1/4 in
-
Bore Size1-1/8 in Dia
- Aluminum bronze bearing reduces wear caused by aluminum bronze bearing reduces wear caused by off-center loads
- Maximum sized springs speed piston return and increase spring life
- Removable rubber boots protect collar threads during transport and storage
- Chrome plated piston rod resists wear and corrosion
- Wide range of accessories available that mount onto the piston rod, collar, or base
- Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders
- Base mounting holes standard on 5 through 55 ton cylinders, optional on 75 and 100 ton cylinders
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1
-
Catalog
-
Instruction/Installation Manual
