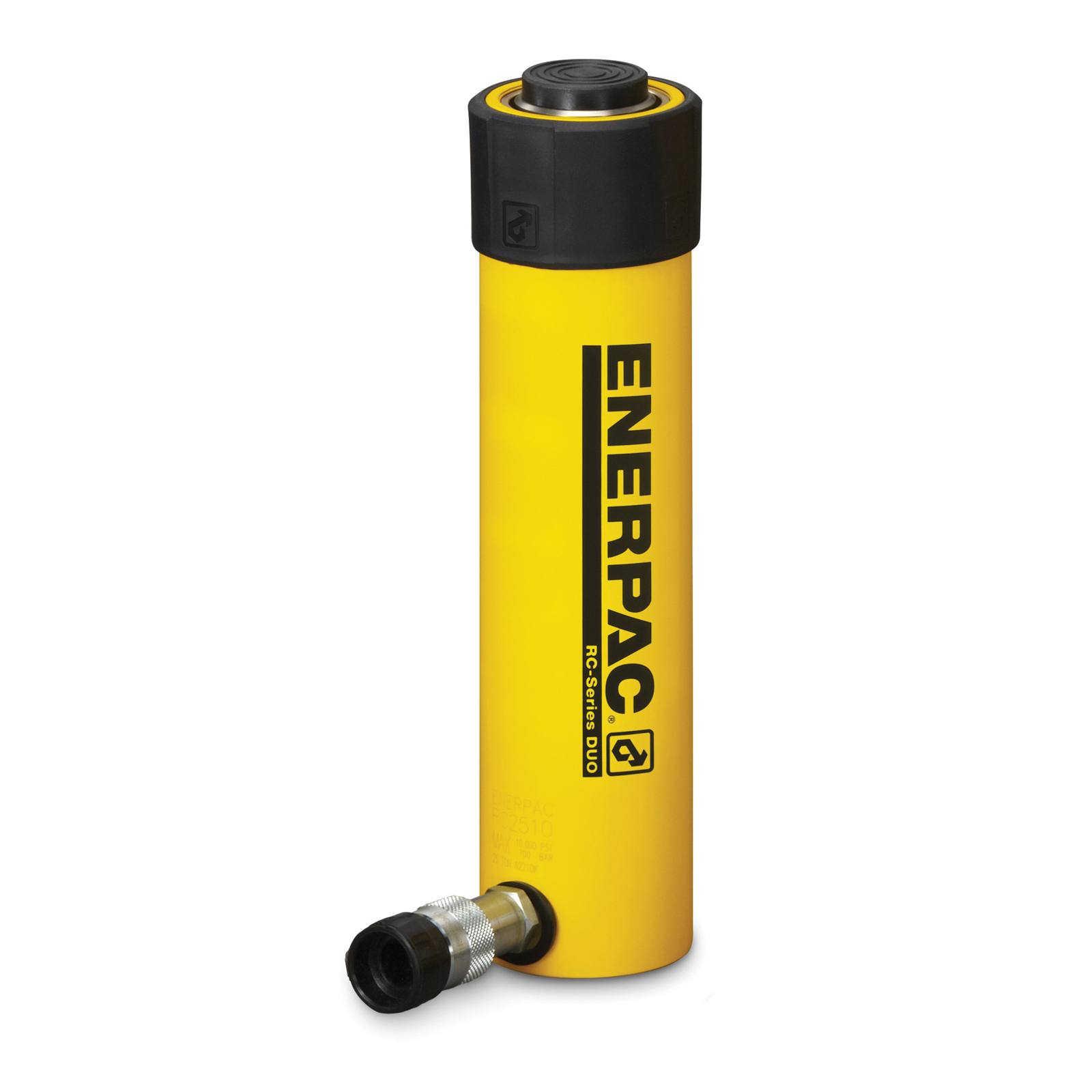

Enerpac® RC2512 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 25.8 ton Capacity, 2.56 in Bore, 12-1/4 in L Stroke, 16-3/4 in Retract, 2 in Dia Rod, 10000 psi Pressure
Enerpac® RC2512 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 25.8 ton Capacity, 2.56 in Bore, 12-1/4 in L Stroke, 16-3/4 in Retract, 2 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005301485
-
Manufacturer Part NumberRC2512
-
CountryUSA
-
Capacity25.8 ton
-
FinishBaked Enamel
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeGeneral Purpose Single Acting Spring Return Solid Plunger
-
Retract16-3/4 in
-
Rod Diameter2 in
-
Mounting TypeBase
-
SeriesRC Series
-
Housing MaterialSteel
-
Dimensions3.38 in OD x 29 in H
-
Stroke Length12-1/4 in
-
Bore Size2.56 in
- Unique GR2 bearing design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretension spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending
-
UNSPSC27121602
-
WarrantyLimited
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
