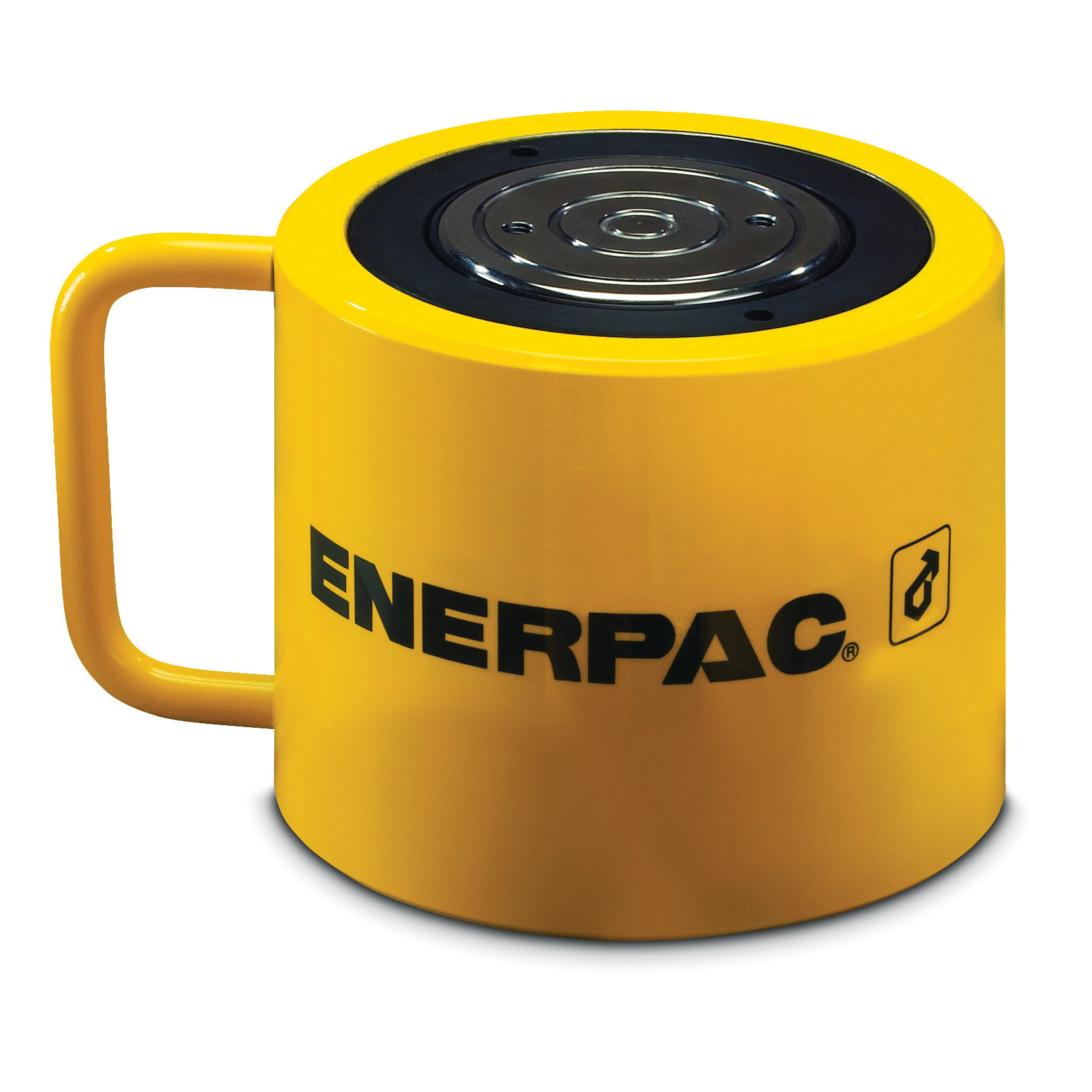

Enerpac® Flat-Jac® RCS-1002 Low Height Single Acting Spring Return Hydraulic Cylinder, 100 ton Capacity, 5 in Dia Bore, 2-1/4 in L Stroke, 5.56 in H Retract, 3.63 in Dia Rod, 10000 psi
Enerpac® Flat-Jac® RCS-1002 Low Height Single Acting Spring Return Hydraulic Cylinder, 100 ton Capacity, 5 in Dia Bore, 2-1/4 in L Stroke, 5.56 in H Retract, 3.63 in Dia Rod, 10000 psi
-
BrandEnerpac®
-
UPC662005302161
-
Manufacturer Part NumberRCS-1002
-
CountryUSA
-
Capacity100 ton
-
FinishBaked Enamel
-
Pressure Rating10000 psi
-
TypeLow Height Single Acting Spring Return
-
Retract5.56 in H
-
Rod Diameter3.63 in
-
SeriesRCS
-
Housing MaterialSteel
-
Dimensions6-1/2 in OD
-
Stroke Length2-1/4 in
-
Bore Size5 in Dia
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Integral handle for easy carrying
- Maximum power to height ratio
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 102146676 |
-
UNSPSC27121602
-
Package Description1/PK
-
WarrantyLimited
-
Catalog
-
Instruction/Installation Manual
-
Warranty Information
