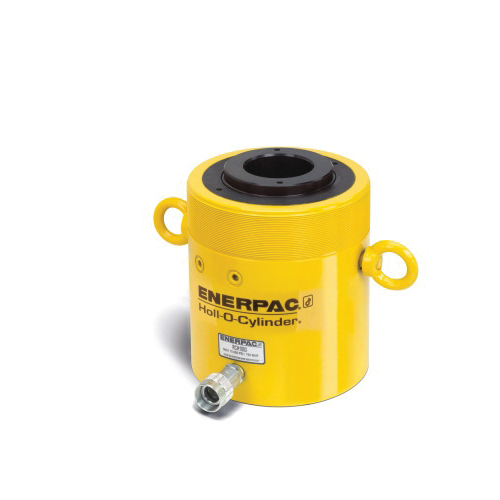

Enerpac® RCH1211 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 12 ton, 2.13 in Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi
Enerpac® RCH1211 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 12 ton, 2.13 in Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi
-
BrandEnerpac®
-
UPC066200530313
-
Manufacturer Part NumberRCH1211
-
CountryUSA
-
Capacity12 ton
-
FinishBaked Enamel
-
Port Size1/4 in
-
Pressure Rating10000 psi
-
TypeHollow Plunger Single Acting Spring Return
-
Retract4-3/4 in H
-
Rod Diameter1.38 in
-
Mounting TypeSurface
-
SeriesRCH
-
Housing MaterialSteel
-
Dimensions2.75 in OD x 6.38 in H
-
Stroke Length1.63 in
-
Bore Size2.13 in
- Hollow plunger design allows for both pull and push forces
- Nickel plated, floating center tube on models over 20 ton increases product life
- Baked enamel finish for increased corrosion-resistance
- Collar threads for easy fixturing
- Features CR-400 coupler
- Have FZ-1630 reducer and AR-630 coupler
- Safely erecting a bridge over water with a hydraulic driven launching nose

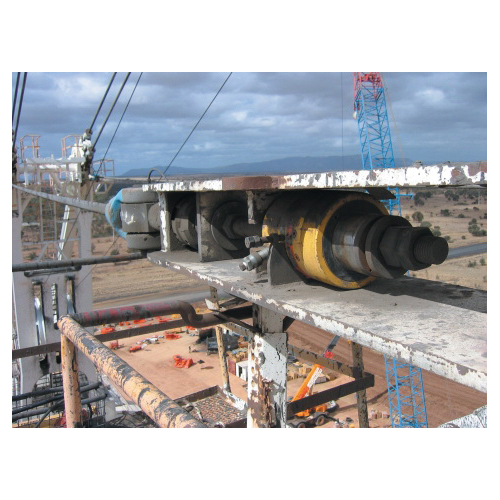

- Pre-loading bridge cables with a battery powered hydraulic pump
- Pulling pins on an oil well casing elevator spider
-
