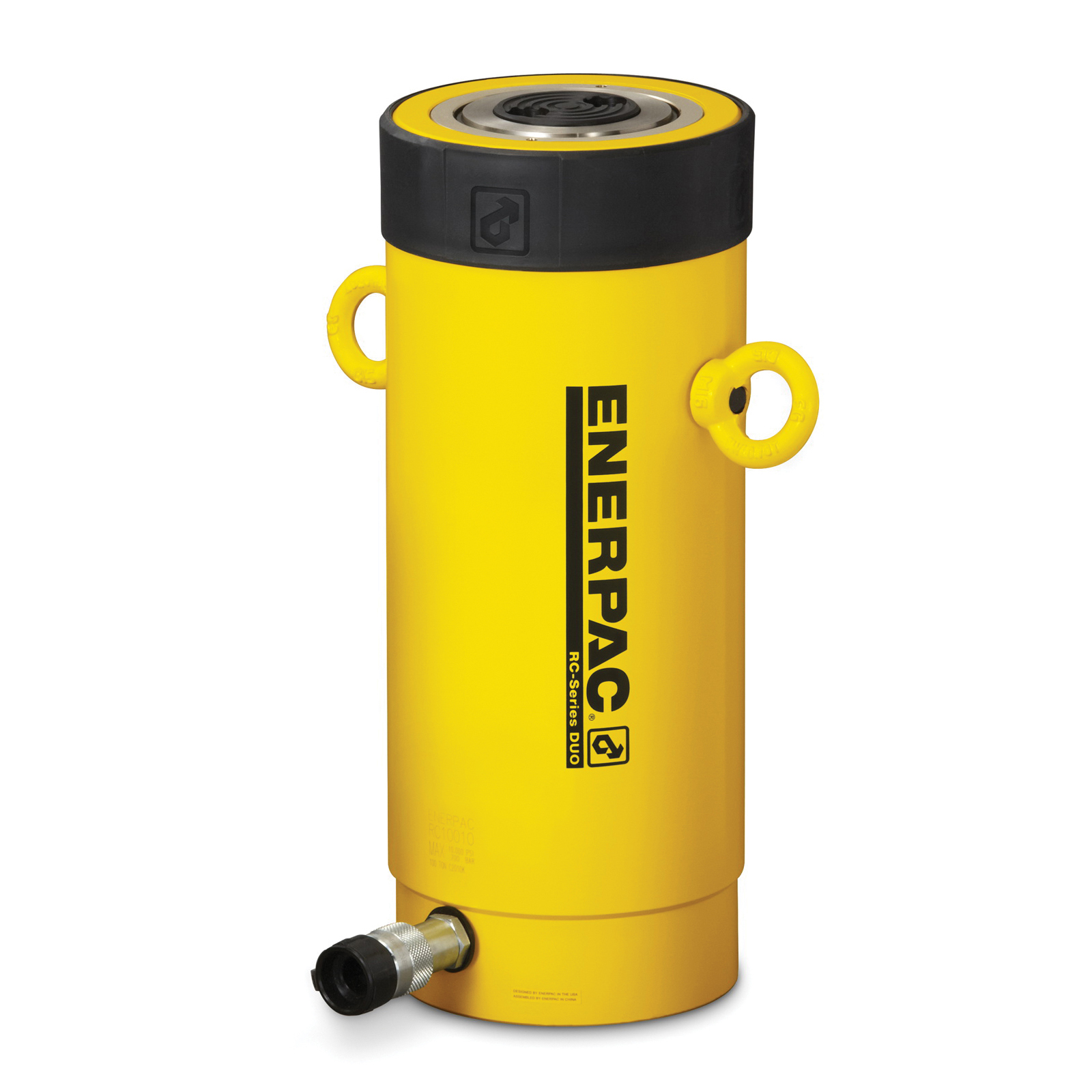

Enerpac® RC10010 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 103.1 ton Capacity, 5.13 in Bore, 10-1/4 in L Stroke, 17.69 in Retract, 2.81 in Dia Rod, 10000 psi Pressure
Enerpac® RC10010 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 103.1 ton Capacity, 5.13 in Bore, 10-1/4 in L Stroke, 17.69 in Retract, 2.81 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005301904
-
Manufacturer Part NumberRC10010
-
CountryUSA
-
Capacity103.1 ton
-
FinishBaked Enamel
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeGeneral Purpose Single Acting Spring Return Solid Plunger
-
Retract17.69 in
-
Rod Diameter2.81 in
-
Mounting TypeBase
-
SeriesRC Series
-
Housing MaterialSteel
-
Dimensions7 in OD x 27.94 in H
-
Stroke Length10-1/4 in
-
Bore Size5.13 in
- Unique GR2 bearing design, reduces wear, extending life
- Collar threads and plunger threads enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretension spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending
-
UNSPSC27121602
-
IncludesCR-400 Coupler and Dust Cap
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
-
Warranty Information
