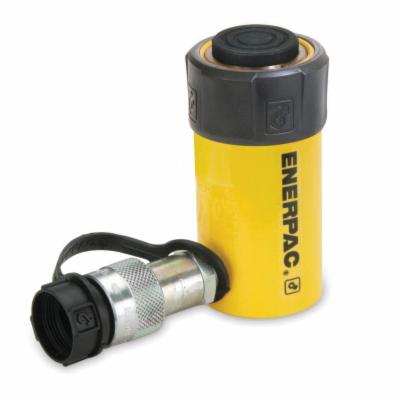

Enerpac® RC-102 General Purpose Industry Standard Single Acting Hydraulic Cylinder, 10 ton Capacity, 2.13 in L Stroke, 10000 psi
Enerpac® hydraulic cylinders are available in hundreds of different configurations. Whatever the industrial application lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac® has the cylinder to suit your high force application.
-
BrandEnerpac®
-
UPC662005300761
-
Manufacturer Part NumberRC-102
-
CountryUSA
-
Capacity10 ton
-
FinishBaked Enamel
-
Pressure Rating10000 psi
-
TypeGeneral Purpose Industry Standard Single Acting
-
SeriesRC
-
Housing MaterialSteel
-
Stroke Length2.13 in
- RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
- Unique GR2 bearing design, reduces wear and extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretension spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- All RC cylinders are equipped with hardened removable grooved saddles
- The exclusive GR2 is a unique bearing design on RC series DUO cylinders which absorbs eccentric load stresses to protect your cylinder against abrasion, over-extending or plunger blow-outs and jamming or top-end mushrooming
- 1.69 in cylindrical bore diameter
- 3/4 in base to advance port
- 1.38 in saddle diameter
- 1/4 in saddle protruding from plunger
- 1-8 UN plunger internal thread
- 3/4 in plunger thread length
- 1.56 in bolt circle
- 5/16-18 UN thread
- 1/2 in thread depth
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 110006917 |
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1
-
