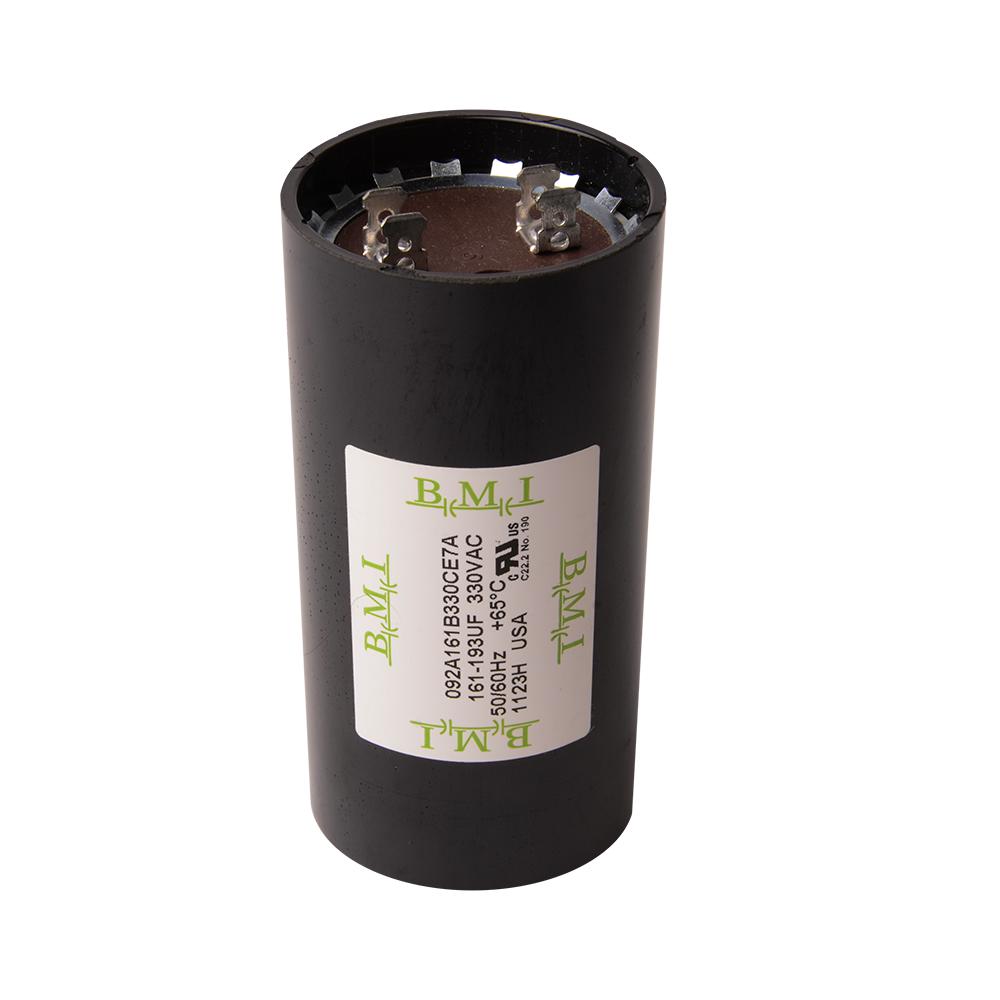

Diversitech 161-193330 Variable Motor Start Capacitor, 161 to 193 uF, 330 V AC, Round
This DiversiTech® 161-193330 Motor Start Capacitor, 161-193µF, 330 volts motor start, electrolytic, non-polarized capacitor is designed for normal intermittent service on single-phase A/C motor starting circuits .
-
BrandDiversitech
-
UPC095247707058
-
Manufacturer Part Number161-193330
-
CountryUSA
-
Capacitance161 to 193 uF
-
Case MaterialPlastic
-
ColorBlack
-
TypeVariable
-
Voltage Rating330 V AC
-
ShapeRound
-
Dimensions2.062 in Dia x 4.37 in H
-
Domestic/ImportDomestic
-
Specifications50/60 Hz
- Features a round, molded case that protects it from oil, dirt, moisture, and grease
- Motor Start Capacitor lets the motor turn on and off rapidly, and helps the motor run more efficiently
- Permissible temperature range of -40C to +65C
-
UNSPSC32121500
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty1 year
-
Specification Sheet
