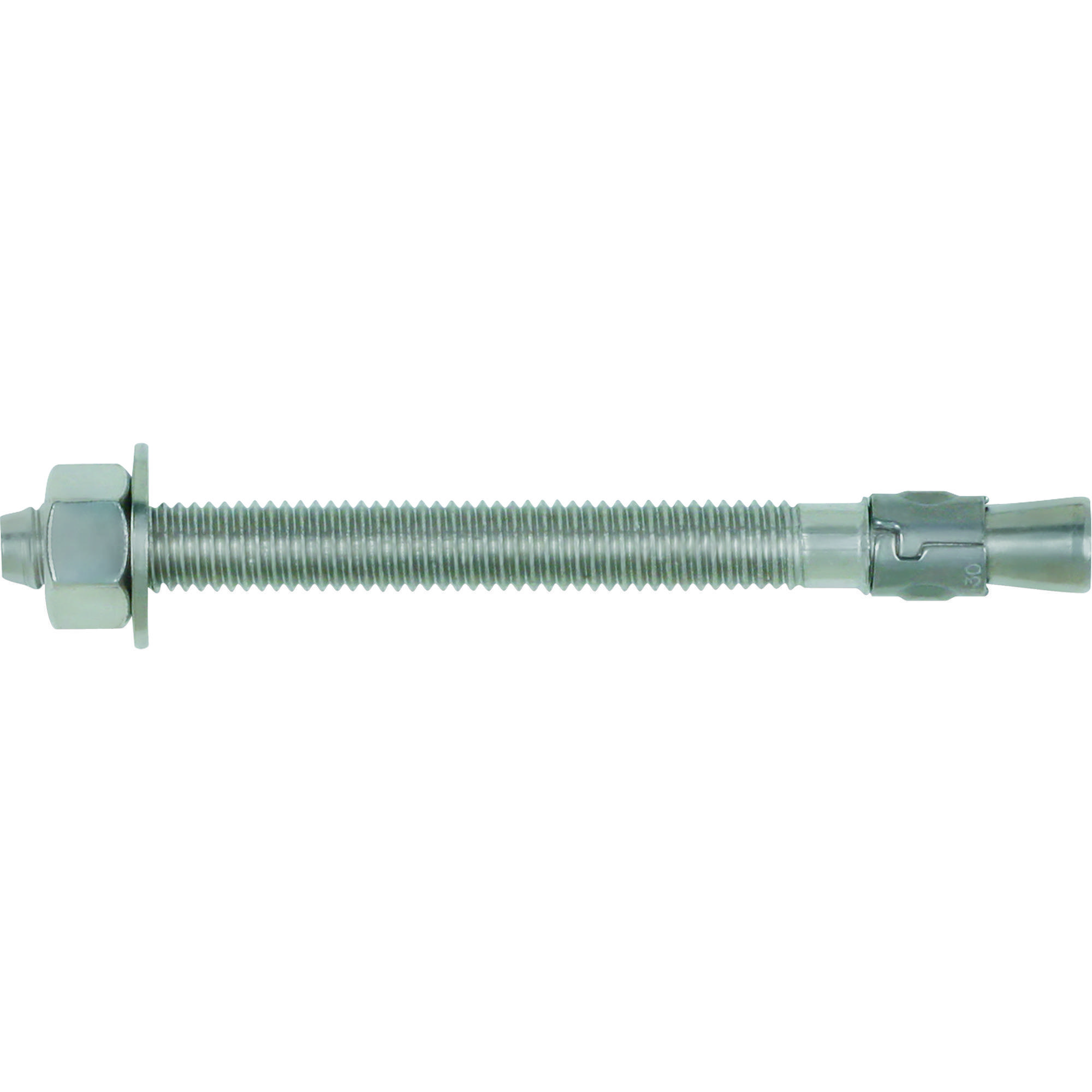

POWERS 3/8" X 3-1/2" S/S CONCRETE ANCHORS PWR 7314
The Power-Stud® Anchor, is a fully threaded, torque controlled, wedge expansion Anchor. It is available in a threaded version suitable for applications in solid concrete and grout filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.
-
BrandDeWALT®
-
UPC075352073149
-
Manufacturer Part Number07314-PWR
-
CountryUSA|Canada
-
Tensile Strength3040 lb
-
Thread Length2-3/8 in
-
Material304 Stainless Steel
-
Thread Size3/8-16
-
Thread TypeUNC
-
Maximum Work Thickness1-7/8 in
-
Minimum Embedment Depth1-5/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
Shear Strength3760 lb
-
Diameter3/8 in
-
Overall Length3-1/2 in
- Fully threaded, medium duty all-purpose Anchor
- Anchors can be installed through the fixture for hole spotting not required
- Clip design prevents spinning during installation
- Length ID stamped on each threaded Anchor
- Chamfered impact section prevents damage to threads
- Nominal drill bit diameter same as Anchor diameter
- Ultimate load capacity: 1920 lb tensile strength when embedded in 2000 psi, 3040 lb tensile strength when embedded in 4000/6000 psi compressive strength concrete
- Ultimate load capacity: 3560 lb shear strength when embedded in 2000 psi, 3760 lb shear strength when embedded in 4000/6000 psi compressive strength concrete
- Allowable load capacity - 480 lb tensile strength when embedded in 2000 psi and 760 lb tensile strength when embedded in 4000/6000 psi compressive strength concrete
- Allowable load capacity - 890 lb shear strength when embedded in 2000 psi and 940 lb shear strength when embedded in 4000/6000 psi compressive strength concrete
- Ultimate load capacity - 1600 lb tensile strength when embedded in 3000 psi, 1940 lb tensile strength when embedded in 4000 psi and 2300 lb tensile strength when embedded in 5000 psi compressive strength concrete in structural lightweight concrete
- Ultimate load capacity - 1840 lb shear strength when embedded in 3000 psi compressive strength concrete in structural lightweight concrete
- Allowable load capacity - 400 lb tensile strength when embedded in 3000 psi, 485 lb tensile strength when embedded in 4000 psi and 575 lb tensile strength when embedded in 5000 psi compressive strength concrete in structural lightweight concrete
- Allowable load capacity - 460 lb shear strength when embedded in 3000 psi compressive strength concrete in structural lightweight concrete
- Ultimate load capacity - 1990 lb tensile strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Ultimate load capacity - 3240 lb shear strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Allowable load capacity - 400 lb tensile strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Allowable load capacity - 650 lb shear strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2140562 |
-
UNSPSC31162102
-
Package Description50/BX
-
Standards/ApprovalsASTM E488|GSA CID-A-A-1923A Type 4|UL EX1289
-
Specification Sheet
