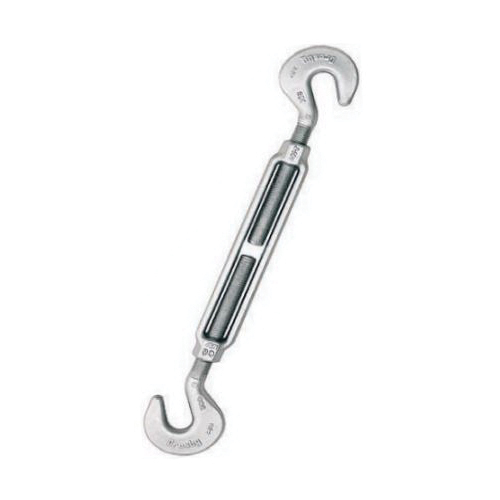

Crosby® 1030011, HG-223-1/4 X 4, Turnbuckle, Hook/Hook, 1/4 in Thread, 400 lb Working, 4 in Take Up, 8.2 in L Close, Steel
Crosby® 1030011 HG-223 Turnbuckle, Hook/Hook, 1/4 in Thread, 400 lb Working, 4 in Take Up, 8.2 in L Close, Steel
-
BrandCrosby®
-
Manufacturer Part Number1030011
-
CountryUSA
-
FinishHot Dipped Galvanized
-
Thread Diameter1/4 in
-
MaterialSteel
-
Closed Length8.2 in
-
SeriesHG-223
-
Working Load400 lb
-
End/EndHook/Hook
-
Take Up4 in
- End fittings are quenched and tempered or normalized, bodies heat treated by normalizing
- Hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties
- Modified UNJ thread on end fittings for improved fatigue properties
- Body has UNC threads
- Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
-
UNSPSC31162405
-
Standards/ApprovalsFederal Spec FF-T-791b, Type 1, Form 1, Class 5|ASTM F-1145|ASME B30.26
-
