Proto Tools 60-300-FT/LB 3/4"-DR TORQUE WRENCH PRO J-6018-A-B

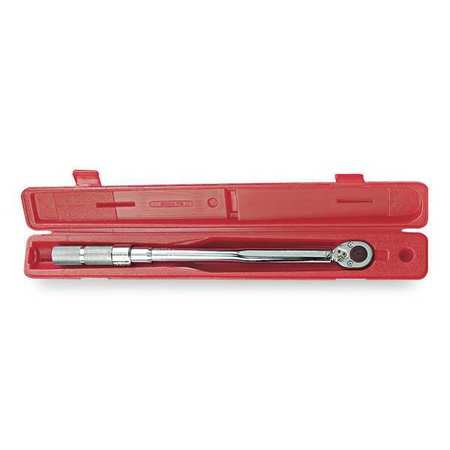

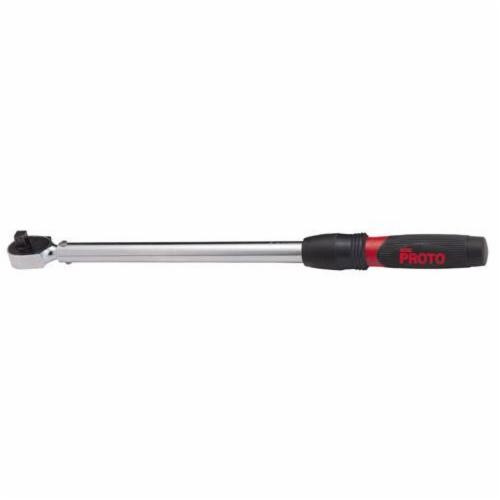

Proto® J6018AB Micrometer Torque Wrench, 3/4 in Drive, 60 to 300 ft-lb, Ratcheting Head, 2 ft-lb Graduation, 32 in OAL, ASME B107.14M
-
BrandProto®
-
UPC662679134570
-
Manufacturer Part NumberJ6018AB
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialSteel
-
Torque Range60 to 300 ft-lb
-
Minimum Number of Cycles5000
-
Graduations2 ft-lb
-
Accuracy+/-3% CW, +/-6% CCW
-
Rotation TypeCW/CCW
-
Handle TypeKnurled Grip
-
Head TypeRatcheting
-
SettingAutomatic Reset
-
Indicator TypeAudible Click
-
Specifications MetASME B107.14M
-
Drive Size3/4 in
-
Overall Length32 in
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- 45-tooth gear/floating pawl design for small 6.8 in arc swing
- 13% smaller head for access in tight work areas
- Reversing lever designed for quick, 1-hand operation
- Calibrated Plus or Minus 2%
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4220830 |
-
UNSPSC27111715
-
Standards/ApprovalsASME B107.14
