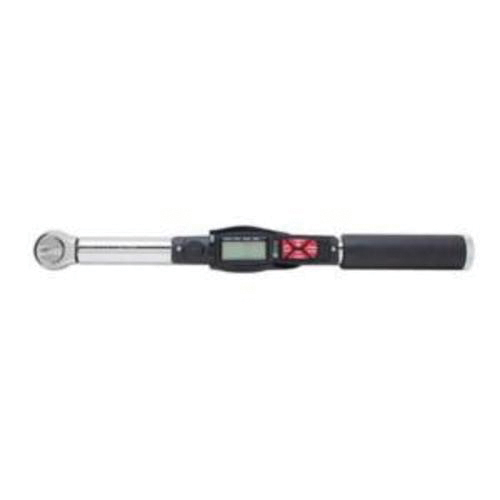

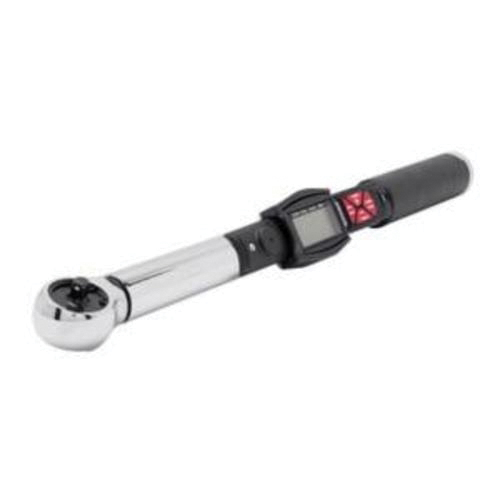

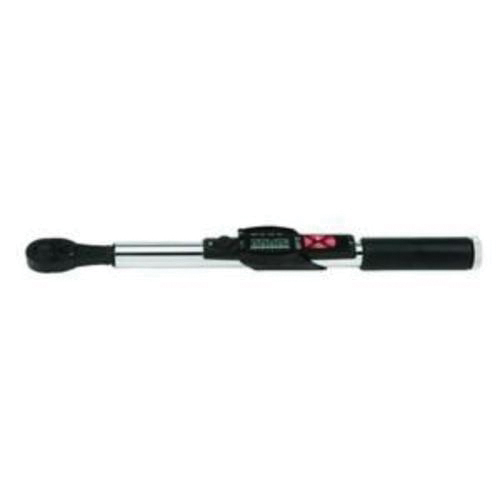

Proto® JH5-100FRB SAE Electronic Torque Wrench, 3/8 in Drive, 10 to 100 ft-lb, Fixed/Ratcheting Head, 0.01 ft-lb/0.1 in-lb Graduation, 20-1/2 in OAL, ASME B107.28
Proto® JH5-100FRB SAE Electronic Torque Wrench, 3/8 in Drive, 10 to 100 ft-lb, Fixed/Ratcheting Head, 0.01 ft-lb/0.1 in-lb Graduation, 20-1/2 in OAL, ASME B107.28
-
BrandProto®
-
UPC662679142964
-
Manufacturer Part NumberJH5-100FRB
-
CountryUSA|Canada
-
MaterialSteel
-
Power SourceAA Battery
-
Torque Range10 to 100 ft-lb
-
TypeSAE
-
Graduations0.01 ft-lb/0.1 in-lb
-
Accuracy+/-2 %
-
Rotation TypeCW/CCW
-
Handle TypeSteel Grip
-
Head TypeFixed/Ratcheting
-
SettingTrack Mode/Peak Hold/Auto Clear
-
Indicator TypeYellow/Green/Red Light/Audible Buzzer
-
Display TypeLCD
-
Specifications MetASME B107.28
-
Drive Size3/8 in
-
Overall Length20-1/2 in
- Accuracy of +/-2% of indicated value in both clockwise and counter clockwise directions
- Broad accuracy range extends from 10% of full scale to 100% of full scale to help reduce the number of torque wrenches required
- Ninety-nine in on-board in memory storage locations help improve efficiency when taking multiple torque readings
- Three units of measure are available, ft-lb, in-lb and N-m
- Three operating modes are track mode, peak hold and auto clear
- Fast sampling rate helps maintain high accuracy during torque applications
- Torque wrench head rotates to allow for easy viewing of LCD display
- Easy to read LCD display with large digits
- An audible buzzer helps identify when desired torque target zones are approaching and met
- Target torque zone is adjustable from 1 to 10% of targeted torque value
- Fixed ratcheting head features a robust 24 tooth design with 15 deg arc swing, alloy steel drive gear for strength and durability, low profile for easy access and a reversing lever design for quick, 1-handed operation
- Ergonomically designed, comfortable cushion grip
- 3-way red/green/yellow lights, yellow light appears at the low end of the zone, green light appears and buzzer sounds when the target is reached and red light appears with intermittent buzzer when it is over torqued
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 36WX47 |
| Grainger | 36WX47 |
-
UNSPSC27111715
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.28
