Proto Tools 7/32" SPLINE RATCHETING GEARWRENCH PRO J-SC-V-07

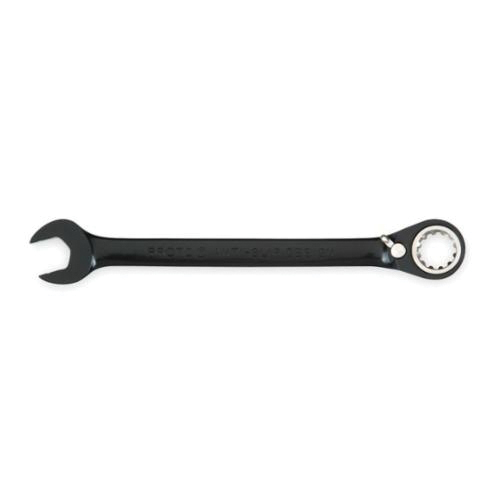

Proto® JSCV07 Reversible Combination Wrench, Imperial, 7/32 in, 12 Points, 15 deg Offset, 5 in OAL, Chrome Vanadium Steel, Polished Chrome/Black, ASME Specified
-
BrandProto®
-
UPC662679972486
-
Manufacturer Part NumberJSCV07
-
CountryUSA|Canada
-
Finish/CoatingPolished Chrome/Black
-
MaterialChrome Vanadium Steel
-
Measurement SystemImperial
-
TypeReversible
-
Wrench Opening7/32 in
-
Number of Geared Teeth72
-
Wrench TypeRatcheting, Spline
-
Number of Points12
-
Specifications MetASME Specified
-
Offset Angle15 deg
-
Open End Thickness1/8 in
-
Open End Width9/16 in
-
Overall Length5 in
-
Box End Thickness1/8 in
-
Box End Width35/64 in
- Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx® fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Black chrome finish is corrosion-resistant and visually distinctive
- Box end is countersunk for easy application to the fastener
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
- Chrome vanadium box ends and switch levers provide high strength and durability
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4217750 |
| Berkshire eSupply | KP4217750 |
-
UNSPSC27111713
-
Package DescriptionEACH
-
