Proto Tools 16-MM REVERSIBLE GEARWRENCHES PRO J-SC-V-M-16-T

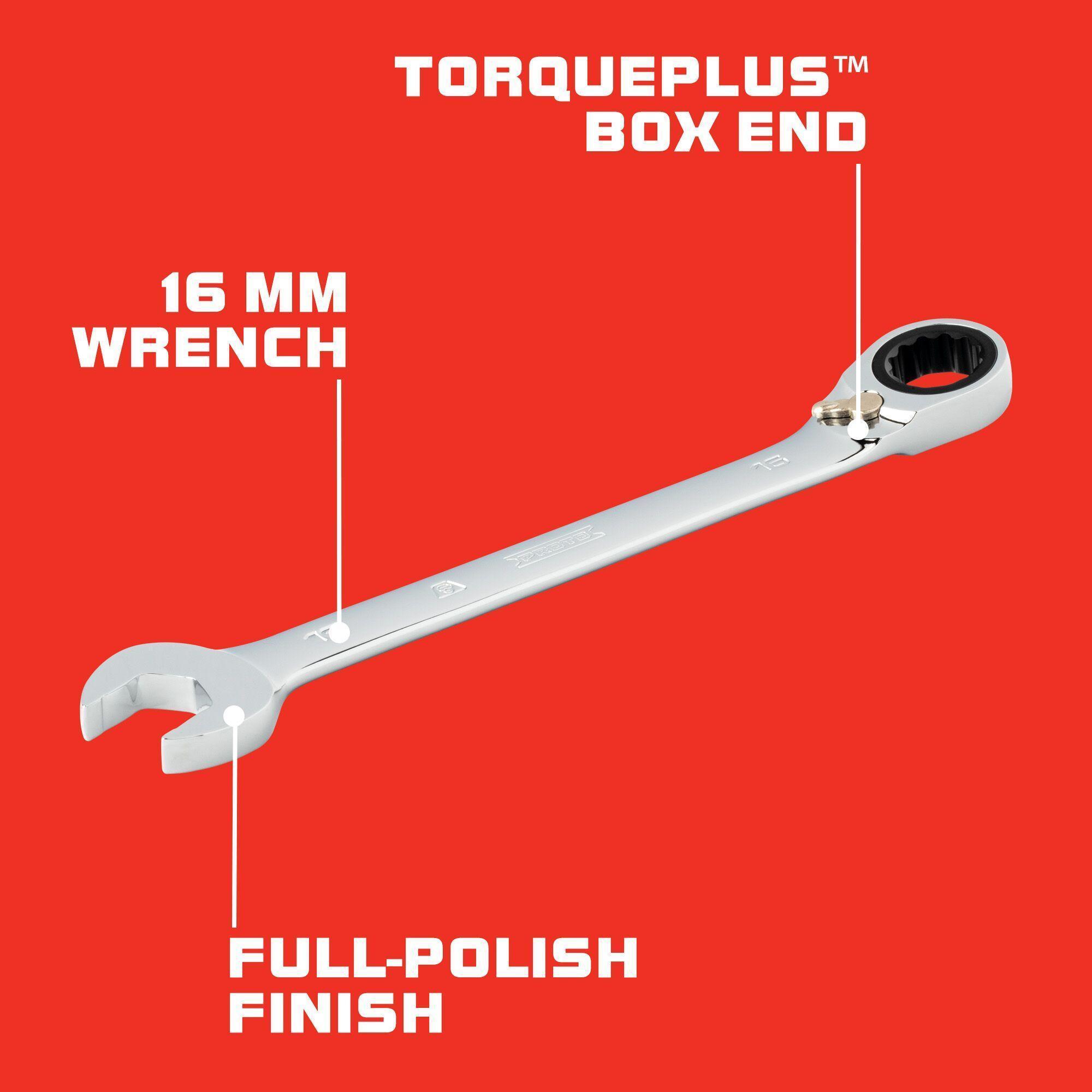

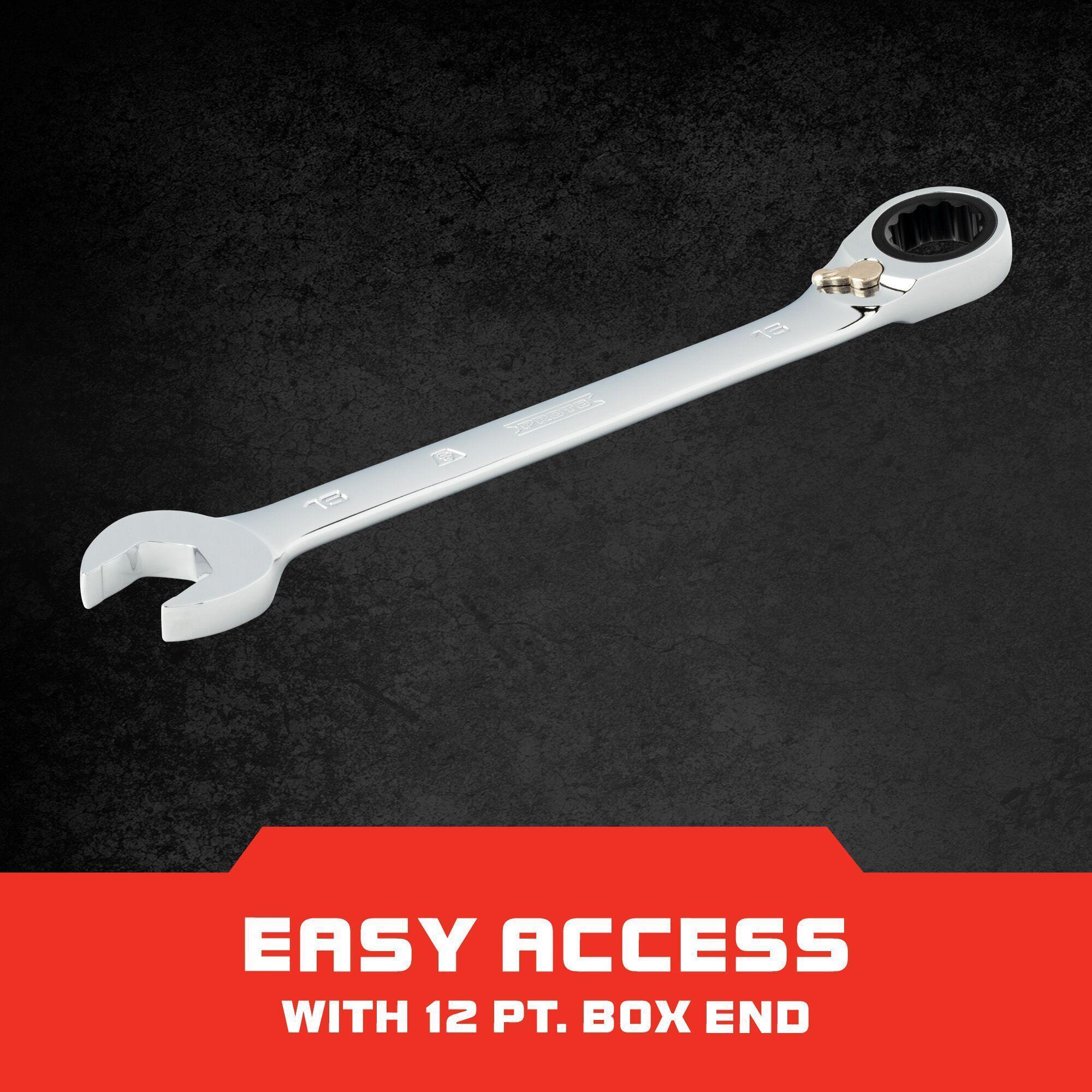

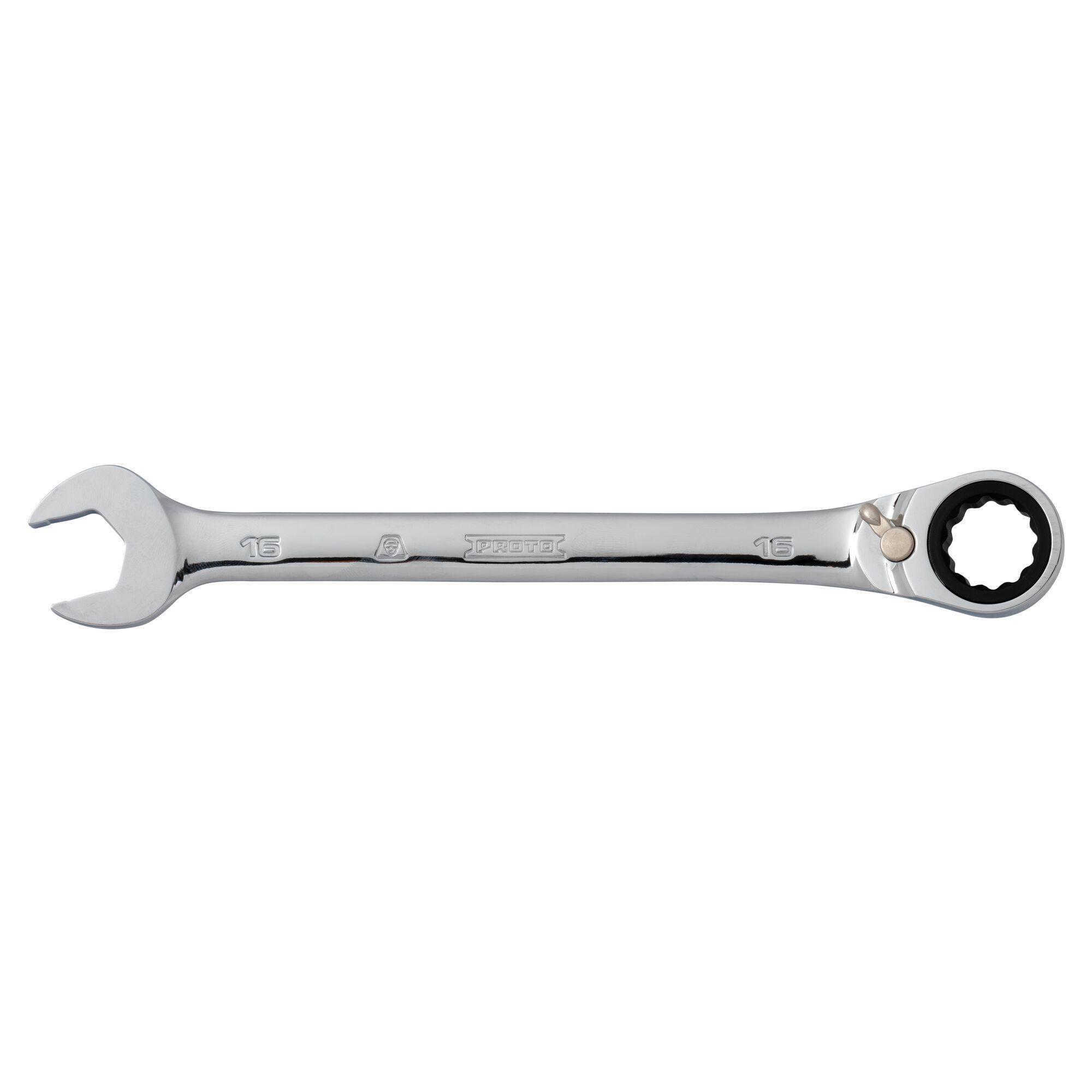

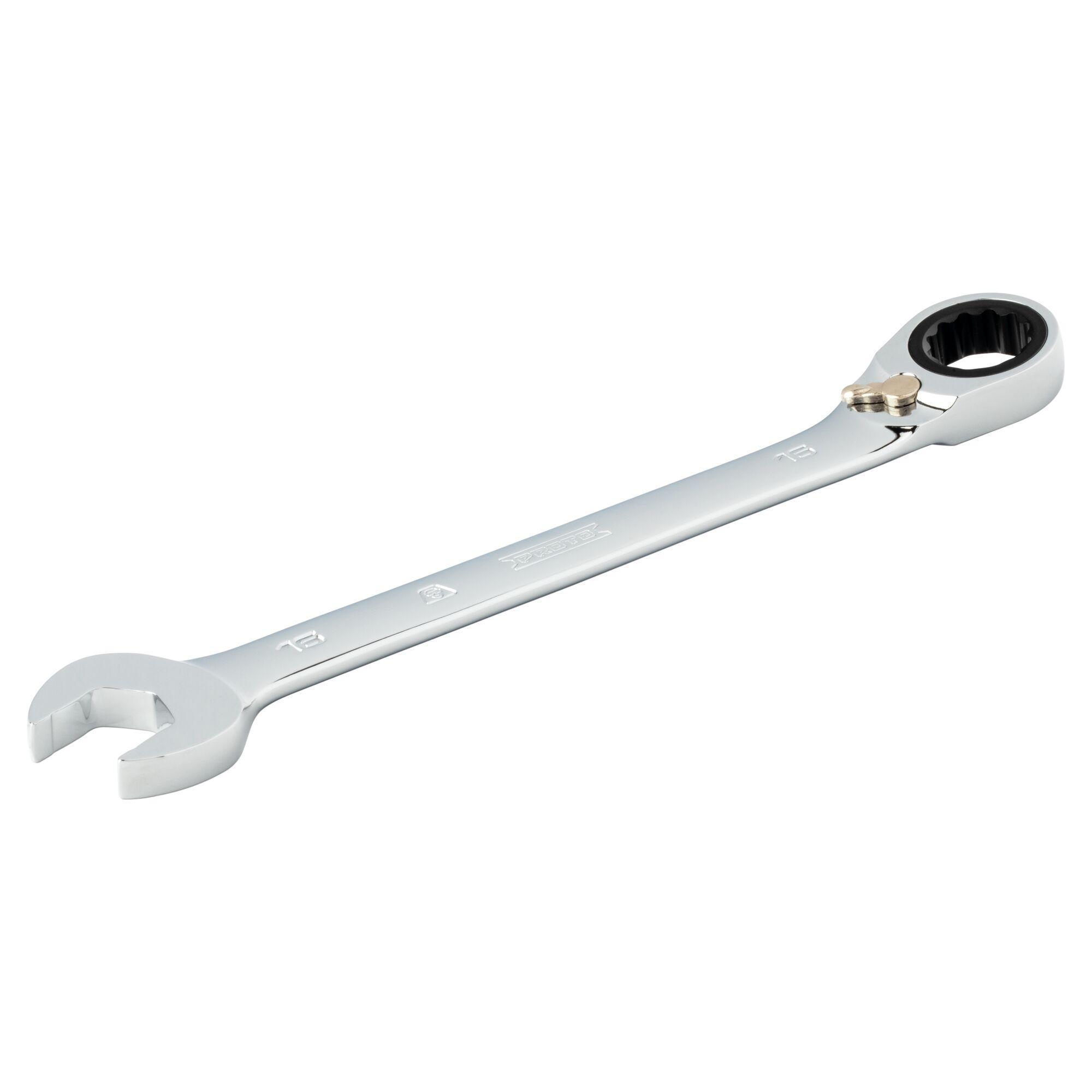

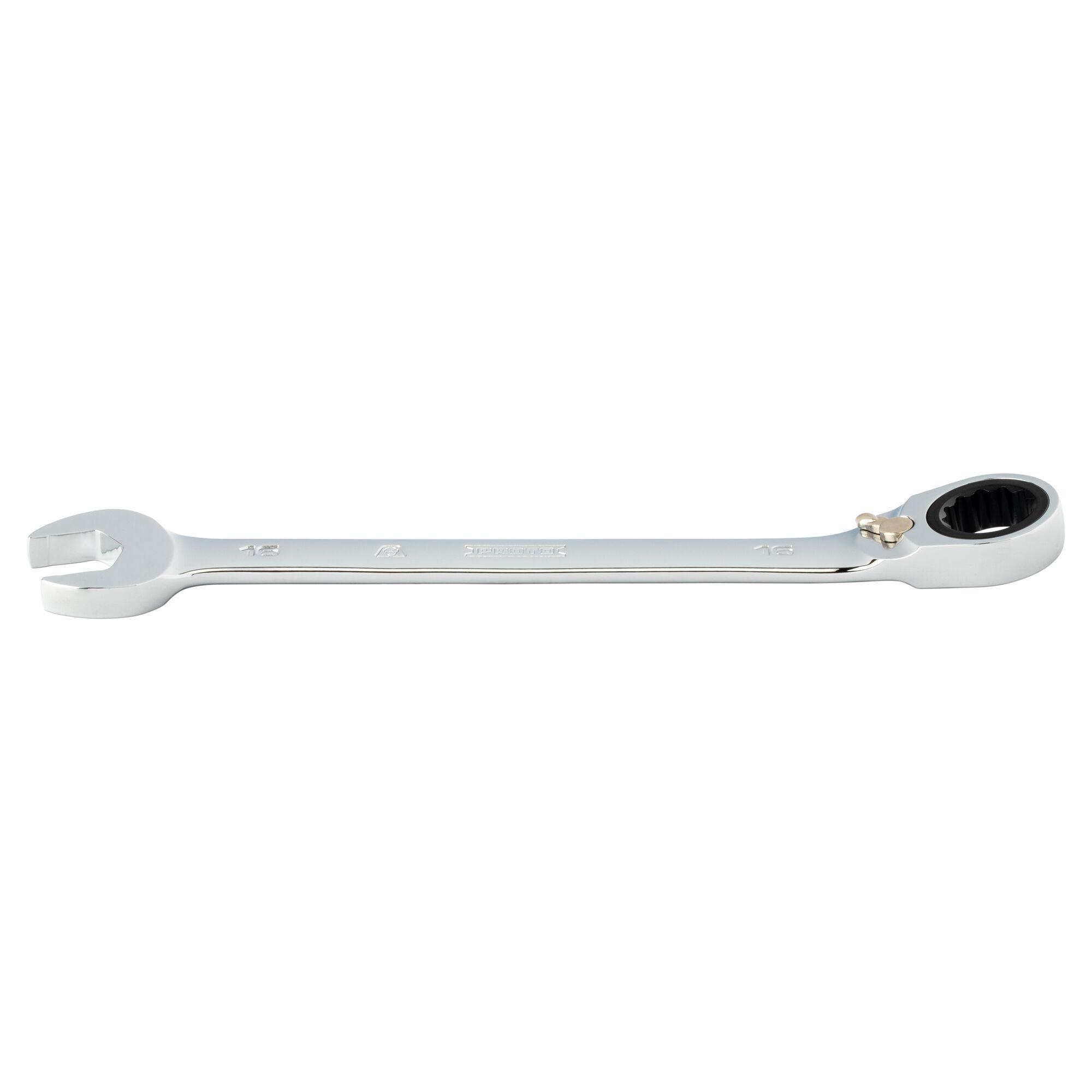

Proto® JSCVM16T Reversible Spline Combination Wrench, 16 mm, 12 Points, 15 deg Offset, 8-3/16 in OAL, Forged Steel, Full Polished, ASME Specified
-
BrandProto®
-
UPC662679114725
-
Manufacturer Part NumberJSCVM16T
-
CountryUSA|Canada
-
Finish/CoatingFull Polished
-
MaterialForged Steel
-
Measurement SystemMetric
-
TypeReversible Spline
-
Wrench Opening16 mm
-
Number of Geared Teeth72
-
Wrench TypeRatcheting
-
Number of Points12
-
Specifications MetASME Specified
-
Offset Angle15 deg
-
Open End Thickness3/16 in
-
Open End Width1-5/16 in
-
Overall Length8-3/16 in
-
Box End Thickness3/16 in
-
Box End Width1-3/16 in
- Metric spline wrenches can be used on metric 4, 6, 12 point, spline and Torx fasteners
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 22DH58 |
-
Alternative Part Number16730571
-
UNSPSC27111713
-
IDEA Index ID16730571
-
Package DescriptionEACH
