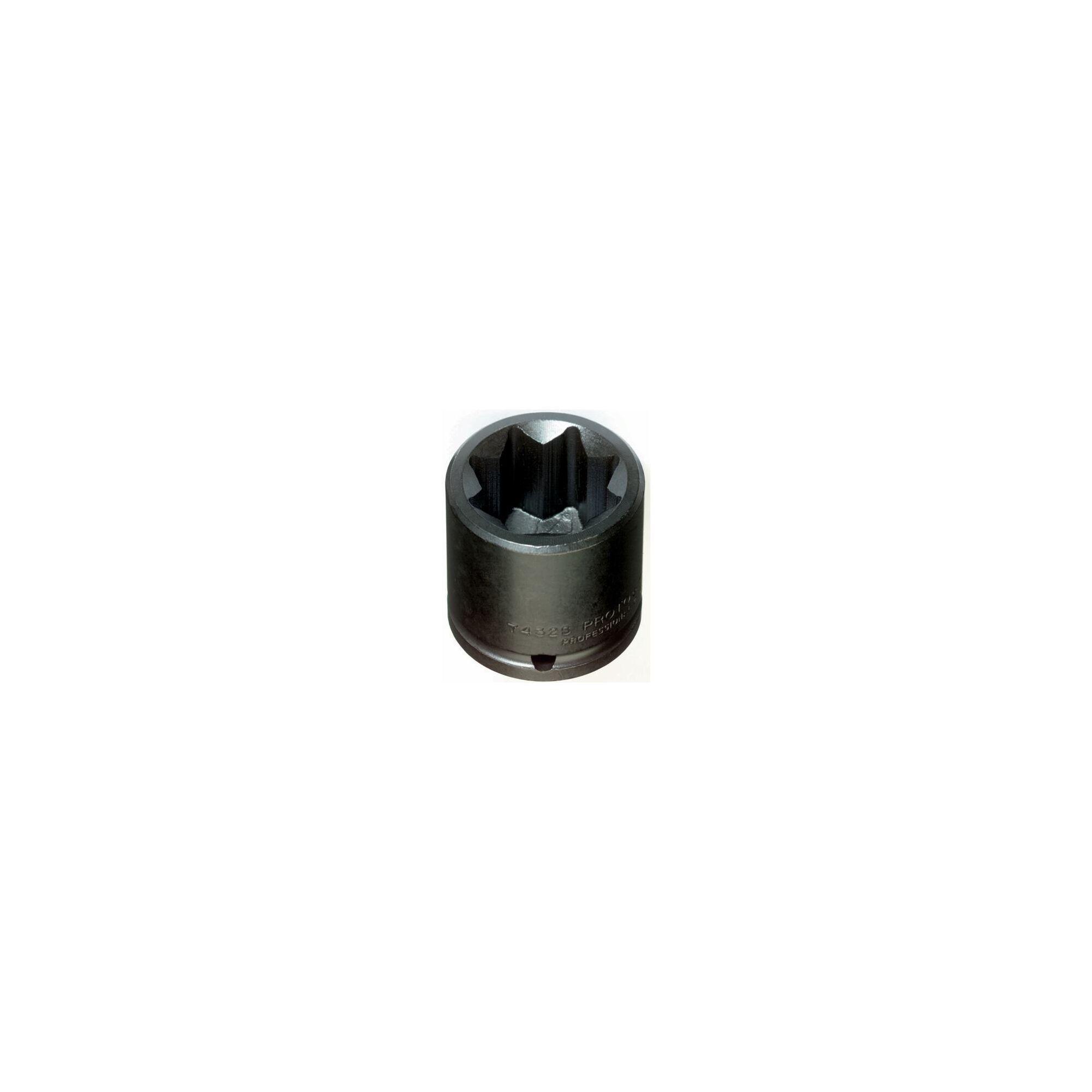

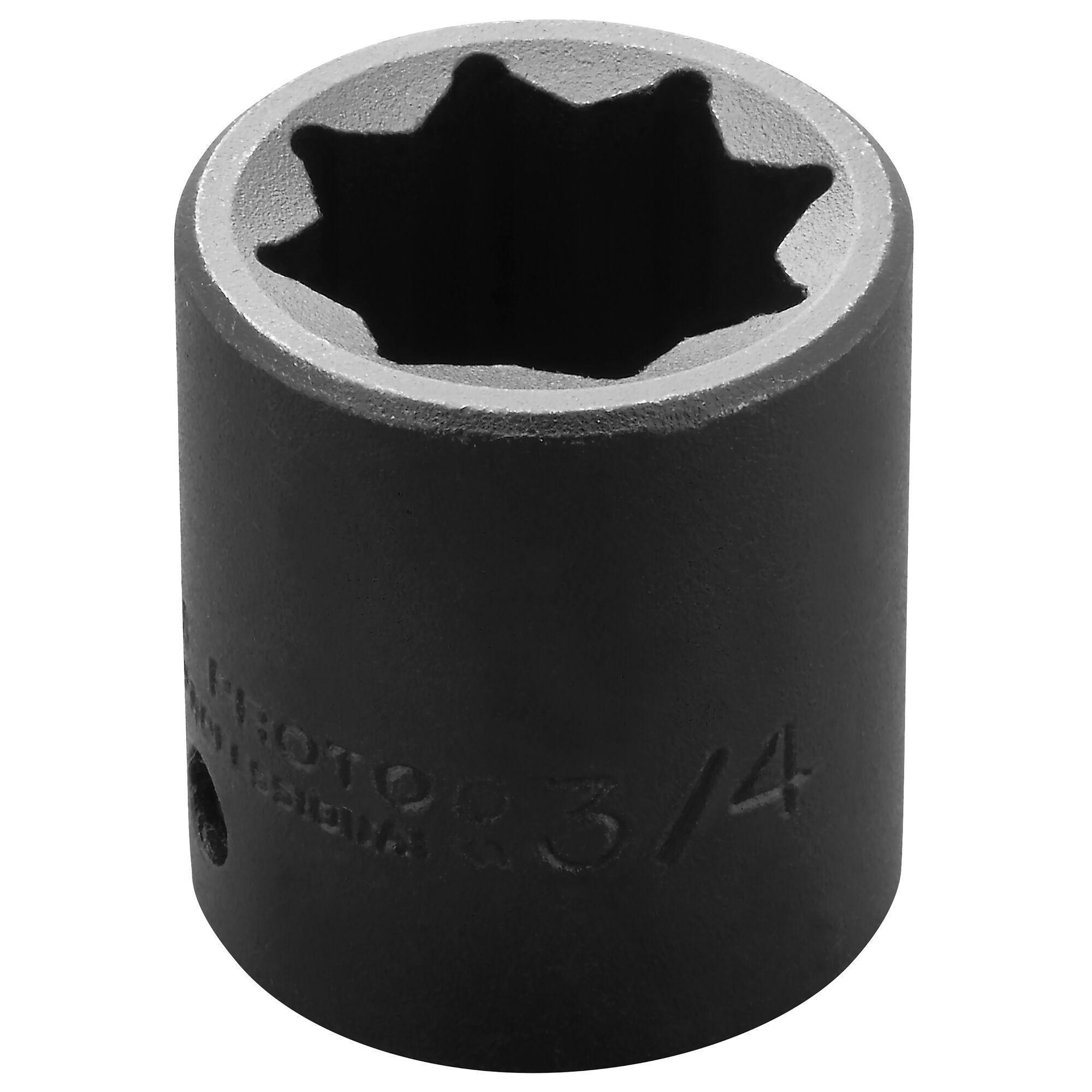

Proto Tools 3/4" 8-PT 1/2"-DR IMPACT SOCKET PRO J-7424-S
Proto® TorquePlus™ J7424S Standard Length Socket, Imperial, 1/2 in Square Drive, 3/4 in
-
BrandProto®
-
UPC662679341299
-
Manufacturer Part NumberJ7424S
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points8
-
Socket End Width1-11/32 in
-
Socket Size3/4 in
-
Opening Depth27/32 in
-
Drive End Width1-11/32 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth27/32 in
-
Overall Length1-1/2 in
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Socket size stamped on tool for easy identification
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4206310 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.2
-
