Proto Tools 16-MM 12-PT 3/8"-DRIVE SOCKETS PRO J-5216-M

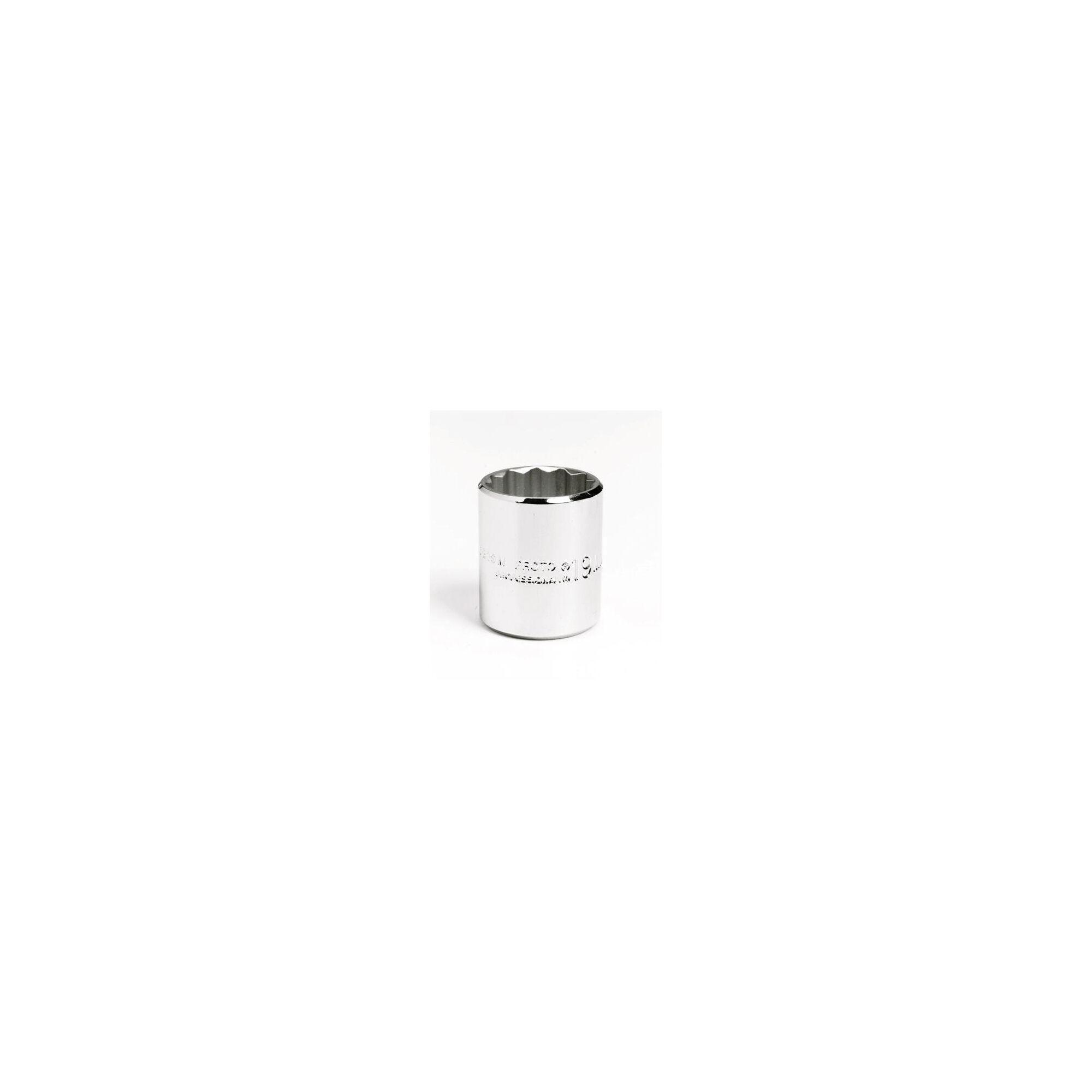

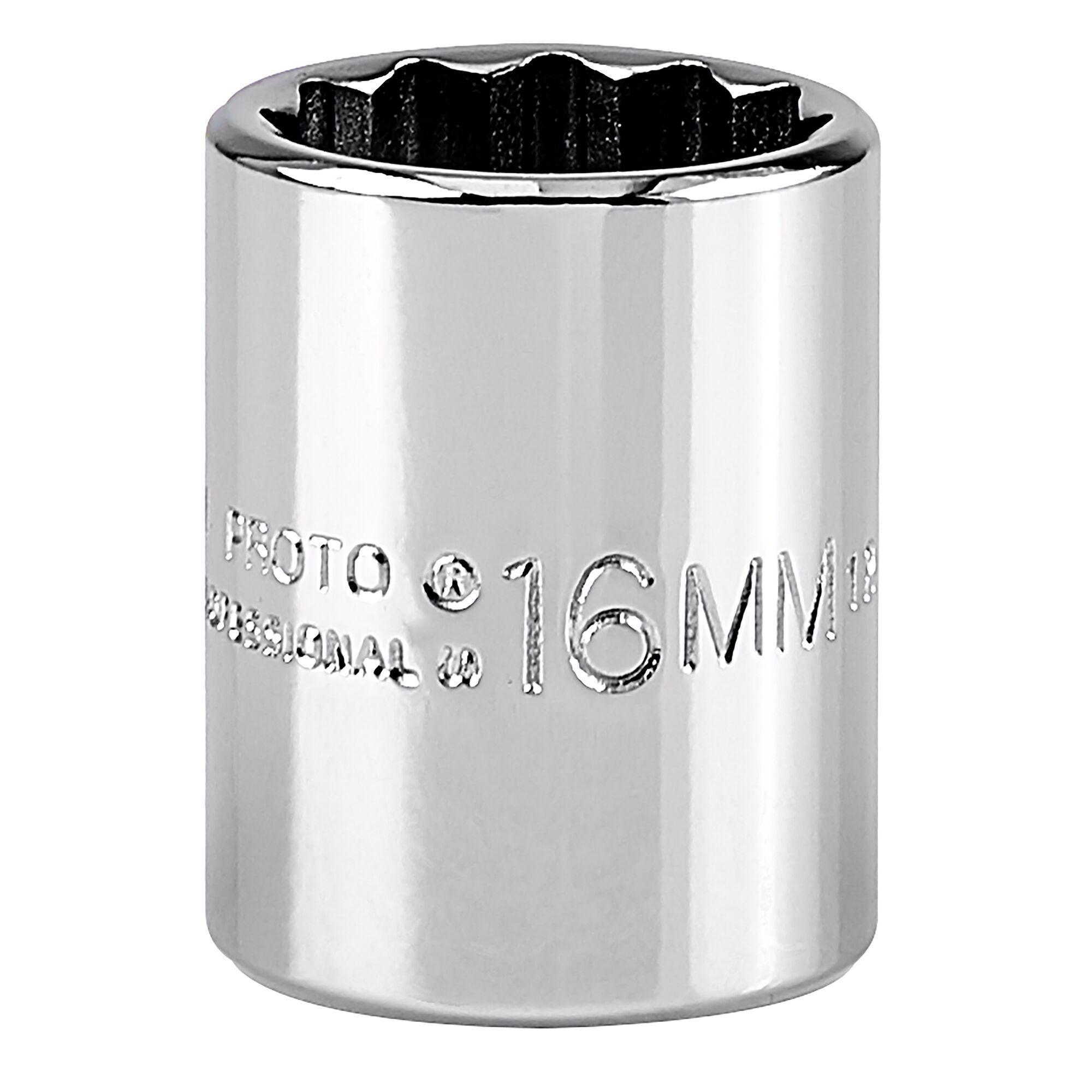

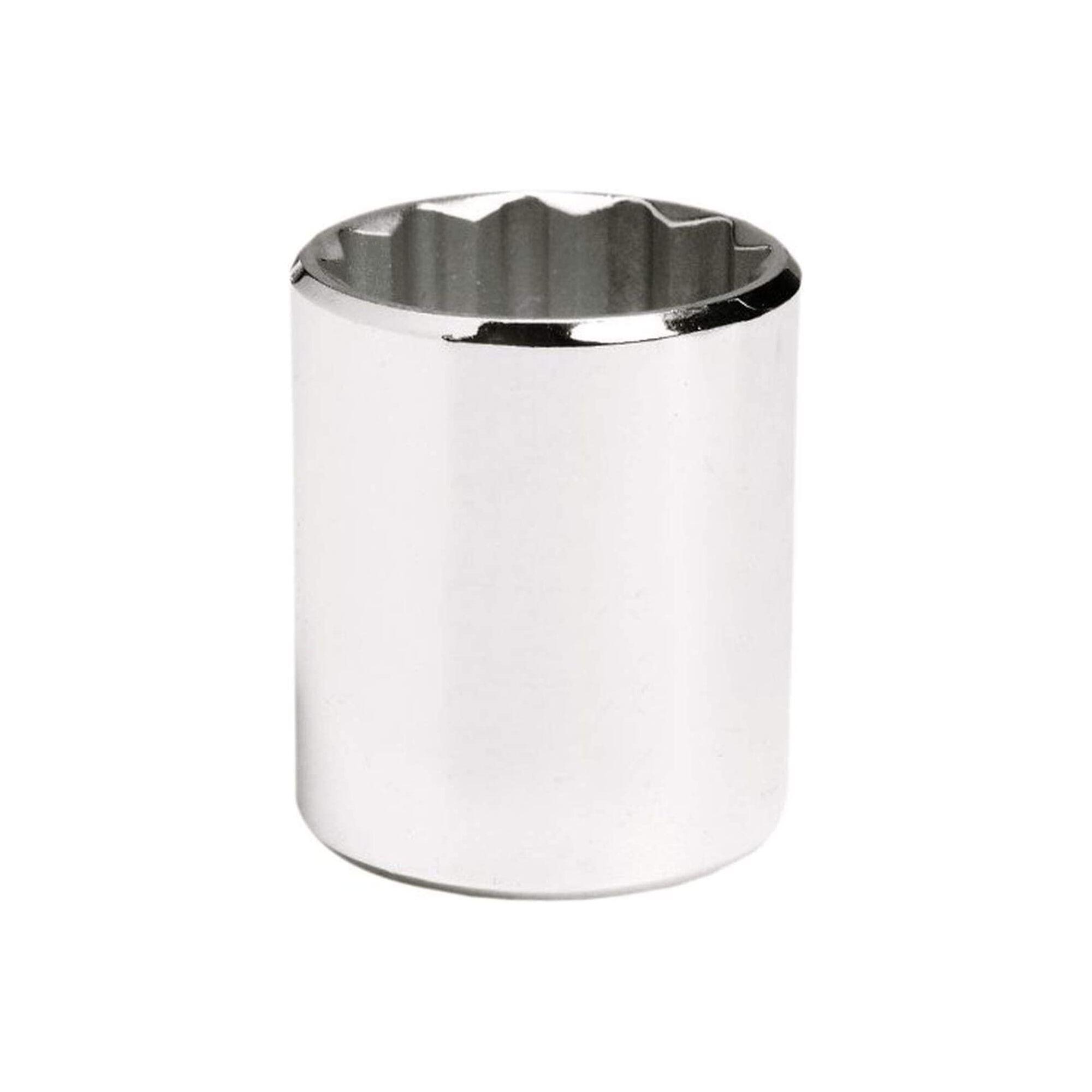

Proto® TorquePlus™ J5216M Standard Length Socket, Metric, 3/8 in Square Drive, 16 mm
-
BrandProto®
-
UPC662679161507
-
Manufacturer Part NumberJ5216M
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width22 mm
-
Socket Size16 mm
-
Opening Depth13.5 mm
-
Drive End Width22 mm
-
Drive Size3/8 in
-
Drive TypeSquare
-
Bolt Clearance Depth11 mm
-
Overall Length28.5 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4202815 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.5M|AS954E S3.8.1
-
