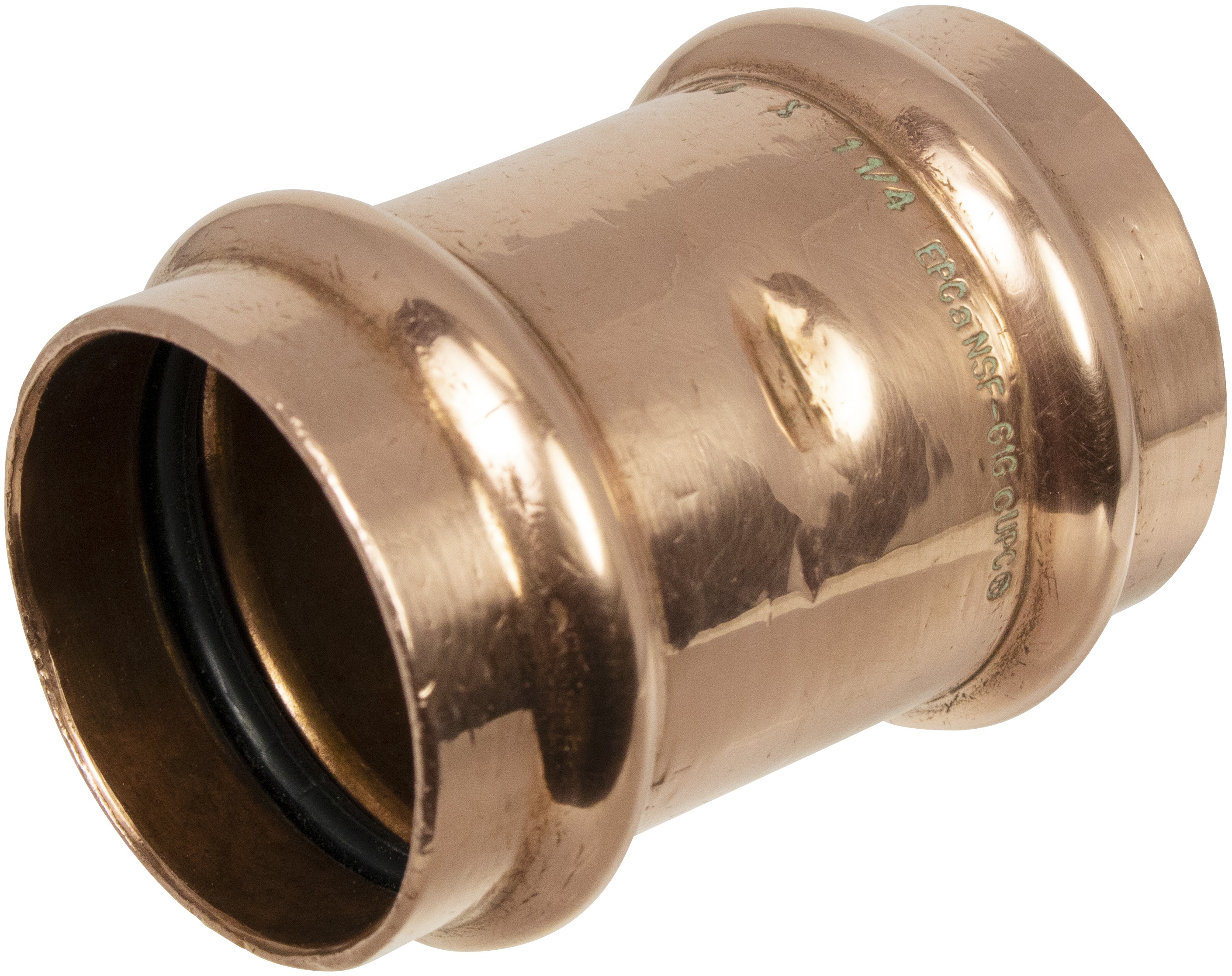

NIBCO 800-1 ApolloPress Small Diameter Press Tube Coupling, 1 in Nominal, Copper, Domestic
The APOLLOXPRESS® 800 Small Diameter Press Coupling features a Lead-Free dezincification resistant copper body and an EPDM O-Ring. Our Small Diameter APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly Made In The USA.
-
BrandApollo™
-
UPC683264755048
-
Manufacturer Part Number10075504
-
CountryUSA
-
Temperature Rating0 to 250 deg F
-
MaterialCopper
-
Fitting/Connector TypeCoupling
-
Pressure Rating200 psi
-
TypeSmall Diameter
-
Nominal Size1 in
-
SeriesApolloPress
-
Domestic/ImportDomestic
-
End StyleC x C
- Leak before Press® technology
- Compatible with Pro-Press™ pressing tools
- EPDM O-ring
- Silicone lubrication
- Hot water up to 250 deg F, chilled water down to 33 deg F
- Approved for underground installation (per local installation code)
- UNS C12200 copper
- Use with hard/soft ASTM B88 K, L and M copper tube
-
UNSPSC40183107
-
Package Description5/PK
-
Standards/ApprovalsARRA Compliant|cUPC Listed|IAPMO 4861/6174/N-4951|NSF/ANSI NSF-372
-
Warranty Information
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
