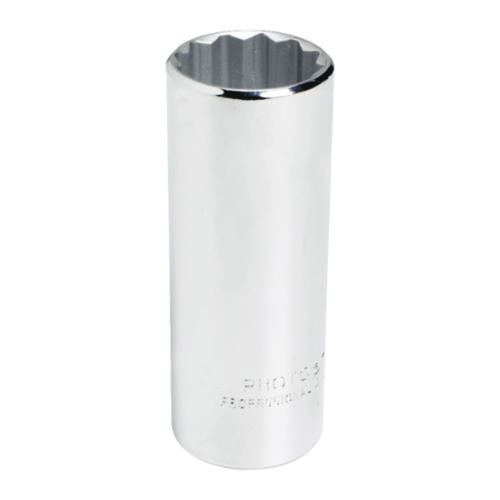

Proto Tools 9/16" 12-PT 1/2"-DRIVE DEEP SOCKET PRO J-5318
Proto® TorquePlus™ J5318 Deep Length Socket, Imperial, 1/2 in Square Drive, 9/16 in
-
BrandProto®
-
UPC662679180102
-
Manufacturer Part NumberJ5318
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeDeep Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width13/16 in
-
Socket Size9/16 in
-
Opening Depth15/16 in
-
Drive End Width27/32 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth2-39/64 in
-
Overall Length3-1/4 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener rounding
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4203460 |
| Berkshire eSupply | KP4203460 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E
