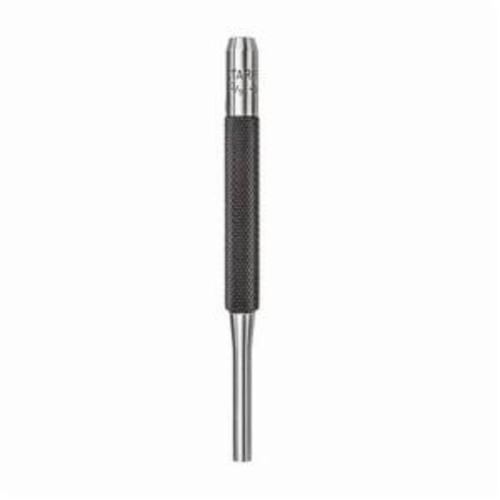

Starrett 3/16"-TIP X 4"-LENGTH PIN PUNCHES STR 565-E
The Starrett 565 Drive Pin Punch is well proportioned, hardened, properly tempered, nicely finished, and have a knurled finger grip. Each punch has the size stamped on the head. 100mm (4") length, 5mm (3/16") Diameter.
-
BrandStarrett®
-
UPC049659525823
-
Manufacturer Part Number565E
-
CountryUSA|Canada
-
Tip MaterialSteel
-
Tip Size3/16 in
-
Series565
-
Overall Length4 in
- Knurled Grip for secure holding
- Hardened and Tempered
- Punch diameter clearly marked on the head
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 30A630 |
| MSC | 86420593 |
| Fastenal | 0324957 |
-
Alternative Part Number52582
-
UNSPSC27111500
-
Package DescriptionEACH
-
Catalog
-

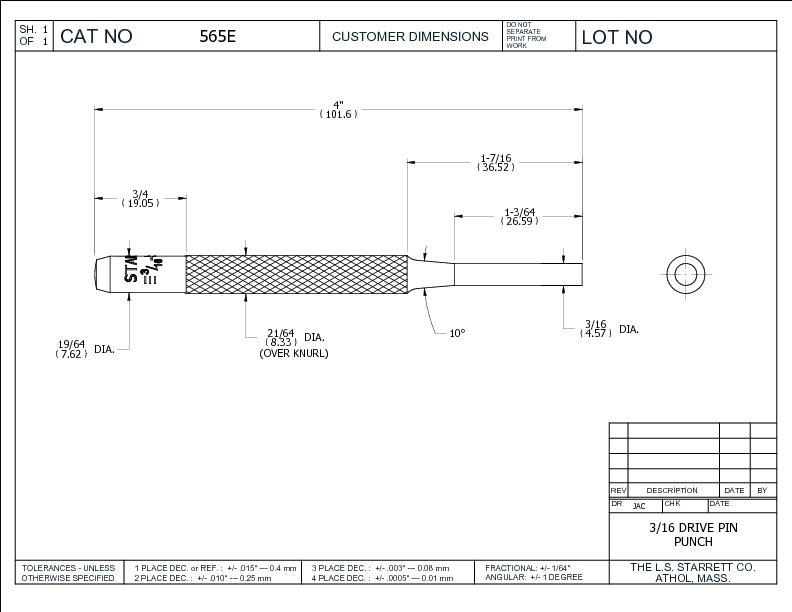

Full Engineering Drawing
