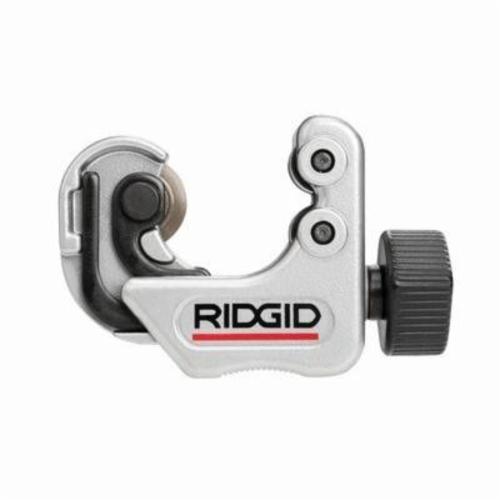

RIDGID® AUTOFEED® 32573, 118 2-in-1 Close Quarter Tubing Cutter, 1/4 to 1-1/8 in, Ergonomic Grip Handle

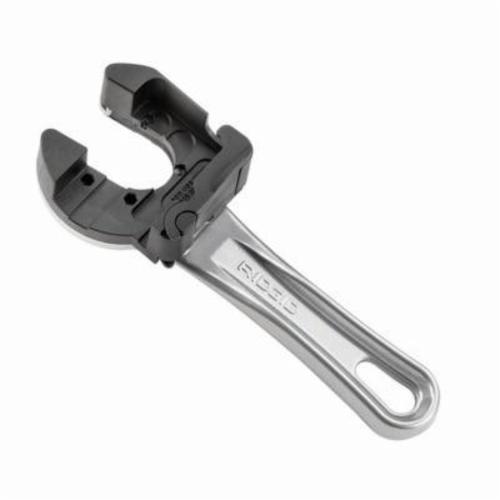

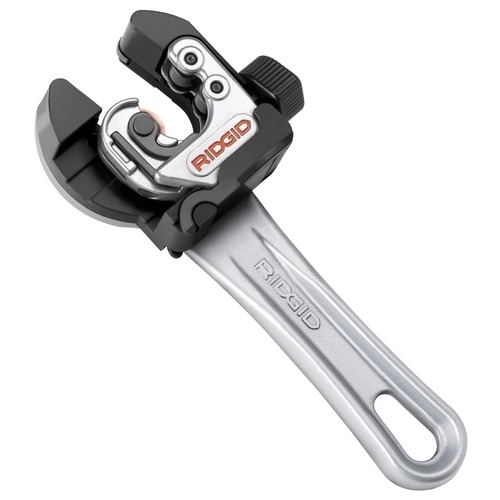

The RIDGID® model 118 Close Quarters with AUTOFEED® operation is available with a ratchet handle to allow for easier cutting in tight, restricted spaces. With its rugged and compact design, the handle can be attached to the cutter and operated in ratchet steps as small as 10 degrees. This allows for fine indexing of the cutter to operate in tight spaces. The new ratchet handle allows more flexibility and mobility while keeping the AUTOFEED® features of the model 118 Cutter, which is designed to cut hard and soft copper, aluminum and brass.
-
BrandRIDGID®
-
UPC095691325730
-
Manufacturer Part Number32573
-
CountryUSA
-
Type2-in-1 Close Quarter
-
Handle TypeErgonomic Grip
-
Nominal Capacity1/4 to 1-1/8 in
-
Applicable MaterialsCopper, Aluminum and Brass
-
Blade MaterialSteel
-
Body MaterialAluminum
- Cutter can be used alone or with the ratchet handle, a light and ergonomic accessory to help use the cutter in tight and restricted spaces
- Easy to use in hard-to-reach areas because the knob only needs to be tightened once
- Adjustable to any size from 1/4 to 1-1/8 in OD
- Tubing cutter comes with a spare E-3469 cutter wheel in knob
- New football-shaped knob in the cutter
- Ratchet handle also compatible with model 101 tubing cutter
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5EPR2 |
| Ferguson | R32573 |
-
UNSPSC99999999
-
Package DescriptionEACH
-
WarrantyLifetime
-
Warranty Information
-
Specification Sheet
