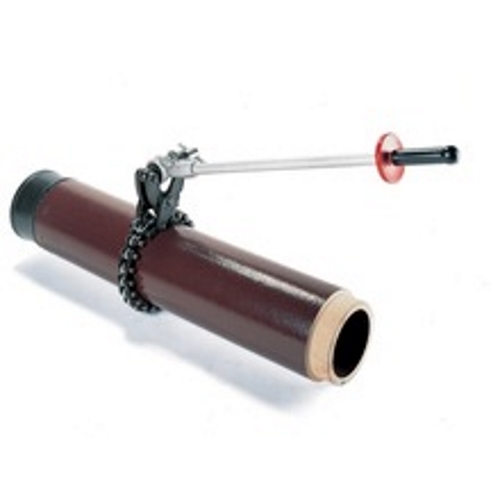

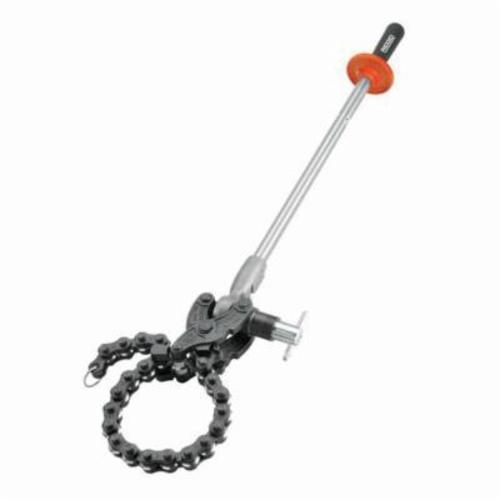

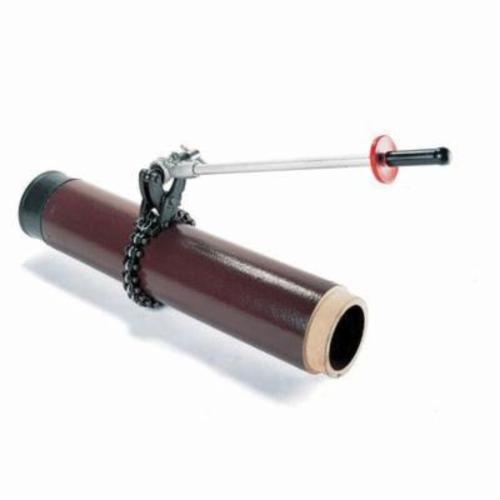

RIDGID® 32900, 246 Ratchet Action Soil Pipe Cutter, 1-1/2 to 6 in
The RIDGID® 206 and 246 Soil Pipe Cutters utilize an integral ratchet handle centered on the pipe. This is especially useful when cutting pipe in trenches, and helps keep the width of the trench to a minimum. Both use a unique hooking mechanism to make hooking the chain easier. The 206 uses the same chain as the 226 and 276, while the chain on the 246 is larger and allows it to cut 4 in class 22 water main and 2 to 5 in extra heavy duty soil pipe.
-
BrandRIDGID®
-
UPC095691329004
-
Manufacturer Part Number32900
-
CountryUSA
-
FinishRed
-
TypeRatchet Action
-
Handle MaterialSteel
-
Nominal Capacity1-1/2 to 6 in
-
Applicable MaterialsCast Iron, Cement and Clay Pipe
-
Body MaterialForged Steel
-
Overall Length33-1/4 in
- Cuts 1-1/2 to 6 in clay, cast iron clay pipe or cement pipe and 4 in class 22 water main
- Ratchet-action handle parallel to pipe allows for application in minimum width trenches
- Complete with hand guard to protect operator's knuckles when cutting
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6YJ36 |
| Ferguson | R32900 |
-
Alternative Part Number246
-
UNSPSC99999999
-
Package DescriptionEACH
-
WarrantyLifetime
-
Warranty Information
