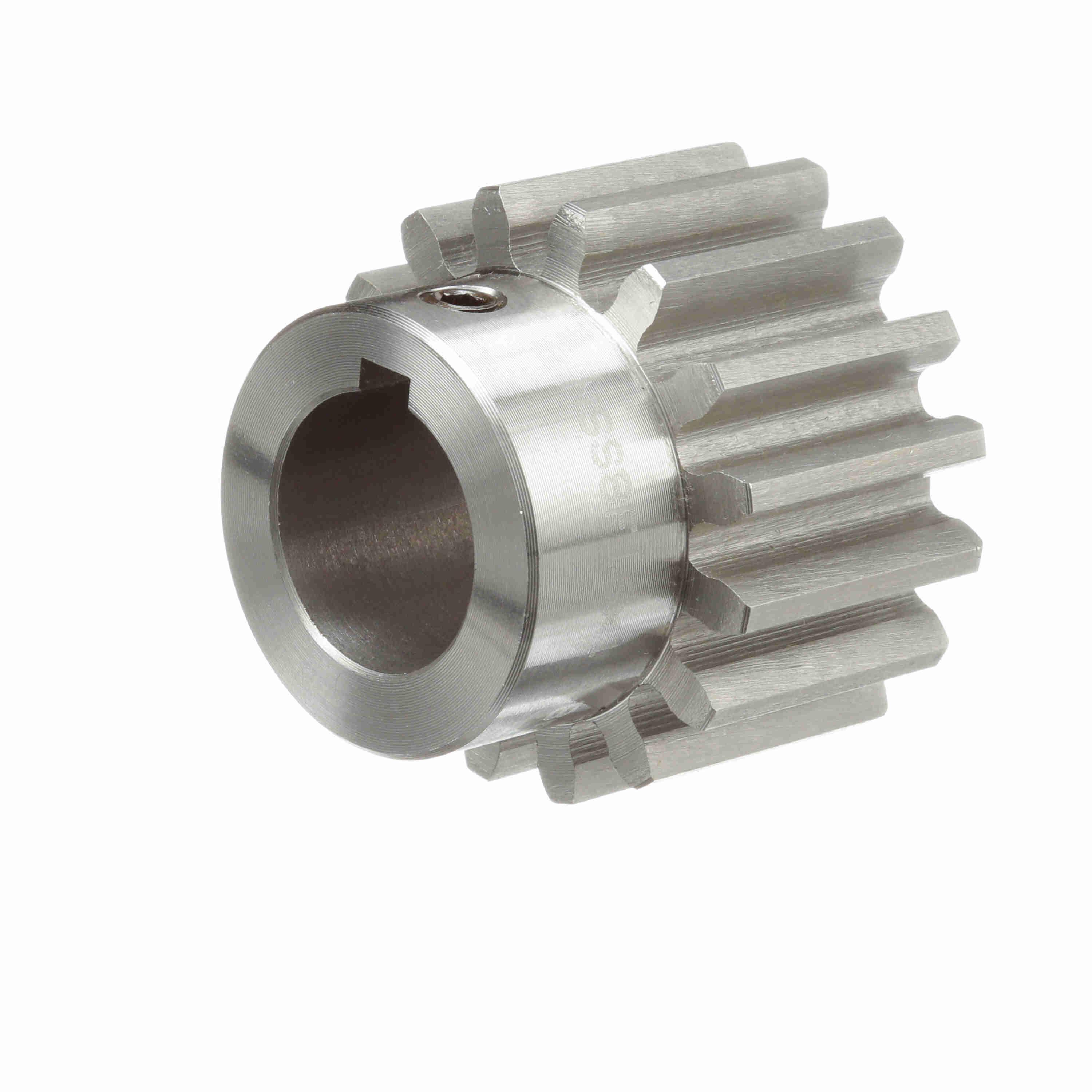

Browning 16-TOOTH 8-PITCH SPUR GEARS BRW NS-S-8-F-16 X 1
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289287611
-
Manufacturer Part Number1215847
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeFinished Bore
-
Hub Diameter1-5/8 in
-
Hub Projection3/4 in
-
Diametral Pitch8
-
Number of Teeth16
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter2-1/4 in
-
Bore Diameter1 in
-
Overall Length2 in
- Browning® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
- All designed to increase output, reduce costs and avoid specials
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS8F16X1
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
