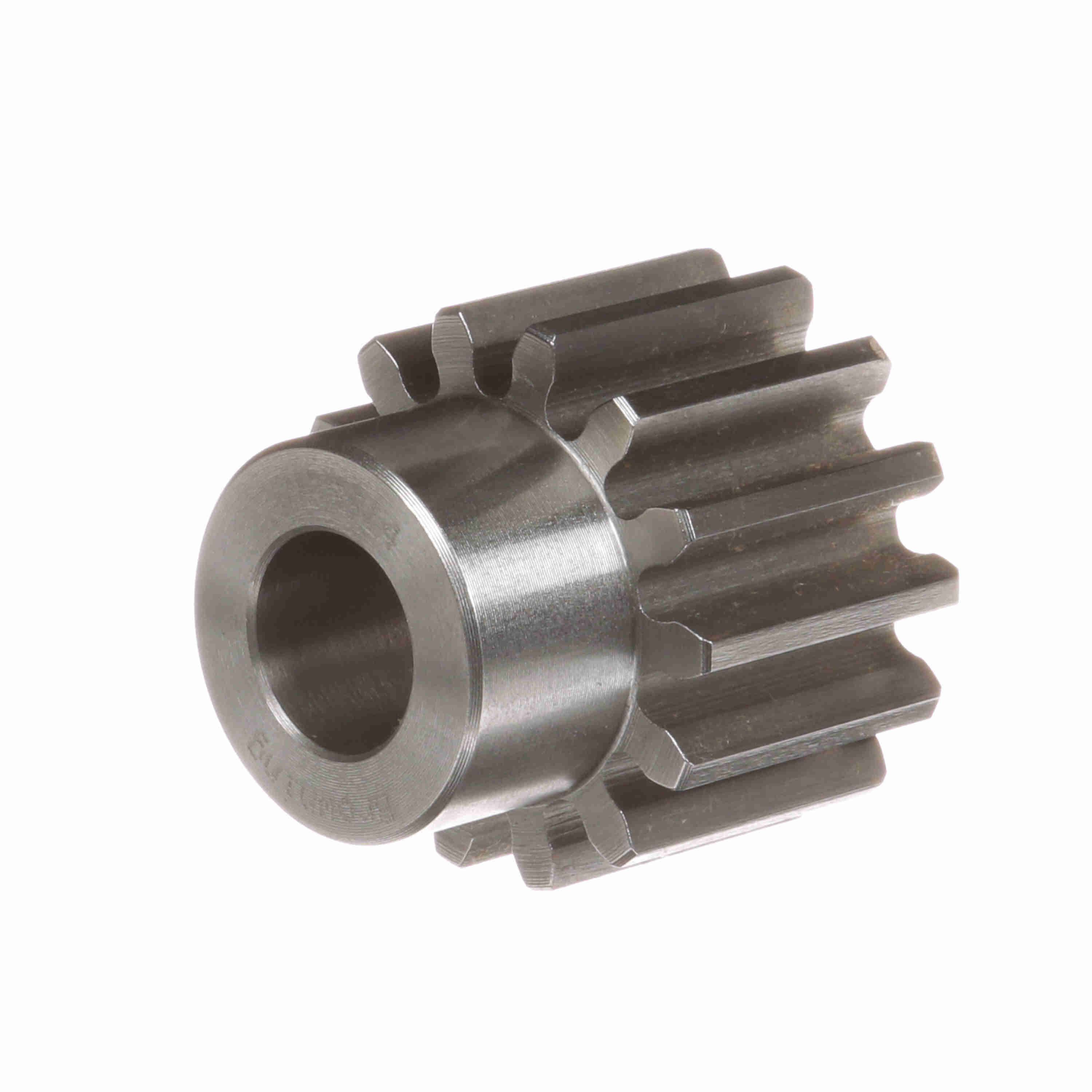

Browning® 1212299 Minimum Plain Bore Spur Gear, 8 Diametral Pitch, 14.5 deg, 1-1/4 in W Face, 14 Teeth, 1-3/4 in Dia Pitch, 3/4 in Dia Bore, Steel
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289133673
-
Manufacturer Part Number1212299
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter1-3/4 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter1-3/8 in
-
Hub Projection3/4 in
-
Diametral Pitch8
-
Number of Teeth14
-
Outside Diameter2 in
-
Bore Diameter3/4 in
-
Overall Length2 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS814
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Package DescriptionEACH
-
