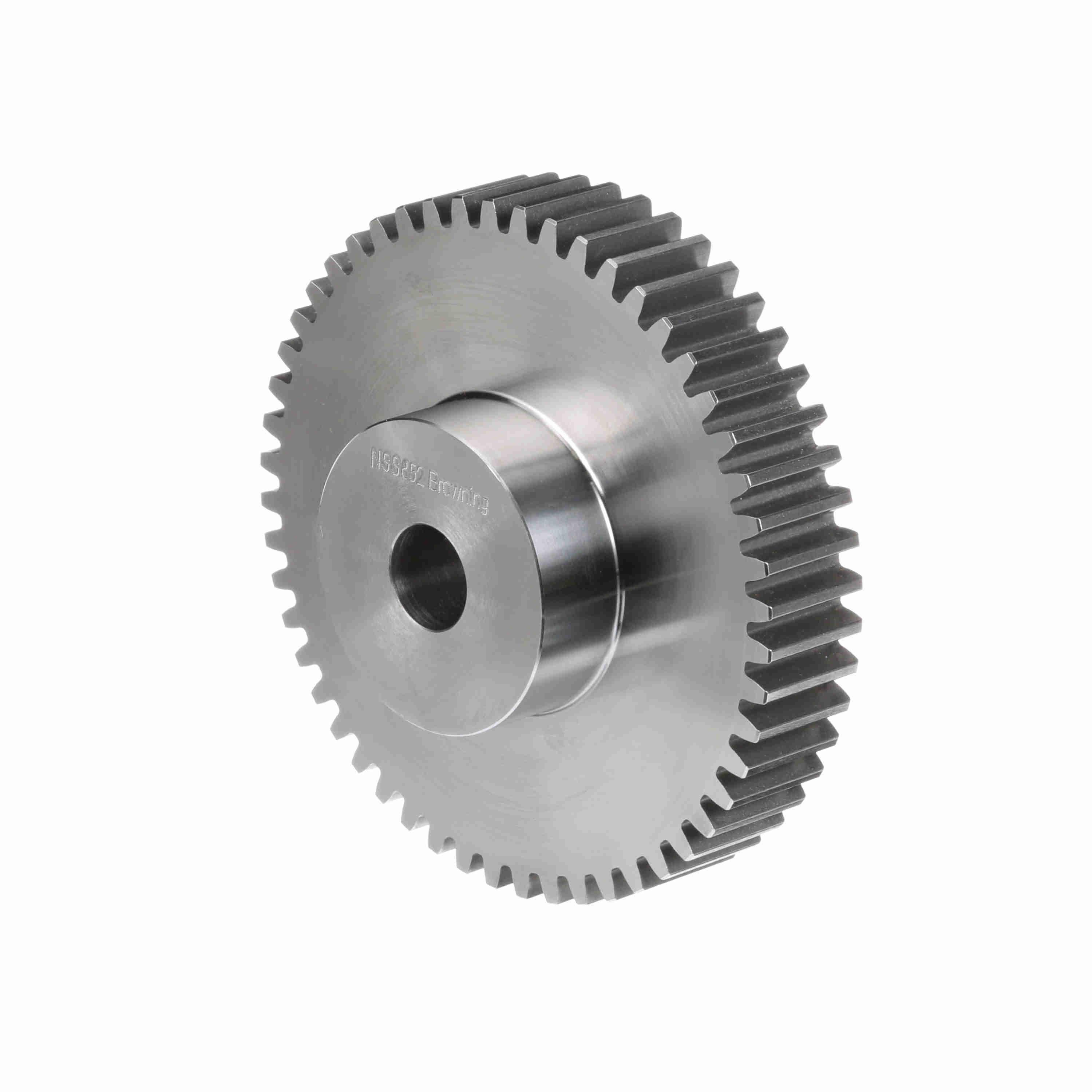

Browning® 1212489 Minimum Plain Bore Type 2 Spur Gear, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 52 Teeth, 6-1/2 in Dia Pitch, 1 to 2 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289153848
-
Manufacturer Part Number1212489
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter6-1/2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter3 in
-
Hub Projection1 in
-
Diametral Pitch8
-
Number of Teeth52
-
Outside Diameter6-3/4 in
-
Bore Diameter1 to 2 in
-
Overall Length2-1/4 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS852
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
