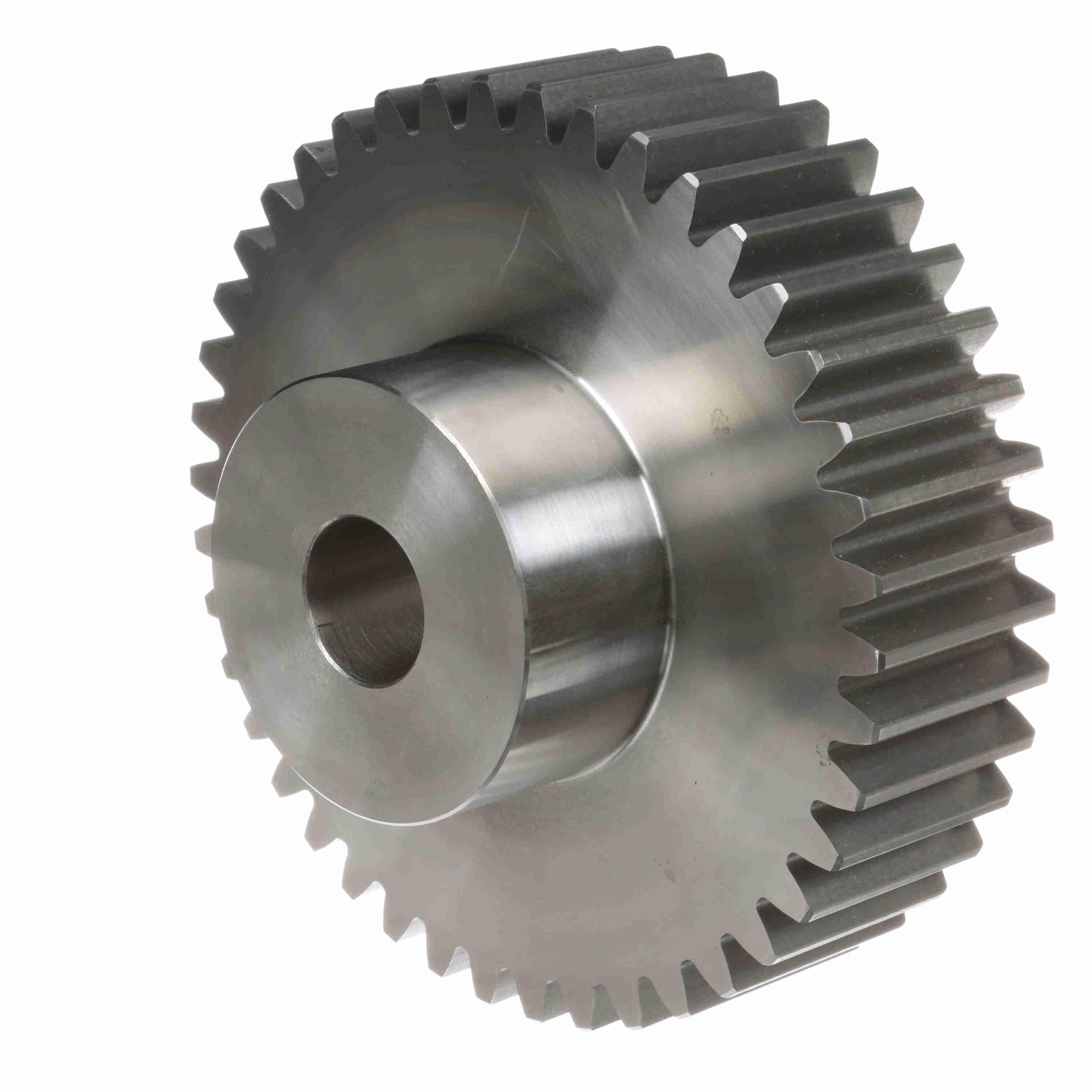

Browning® 1219468 Minimum Plain Bore Type 2 Spur Gear, 6 Diametral Pitch, 20 deg Pressure Angle, 2 in W Face, 42 Teeth, 7 in Dia Pitch, 1-1/4 to 2-5/16 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289157020
-
Manufacturer Part Number1219468
-
CountryUSA
-
Face Width2 in
-
Pitch Diameter7 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter3-3/8 in
-
Hub Projection1-1/2 in
-
Diametral Pitch6
-
Number of Teeth42
-
Outside Diameter7.33 in
-
Bore Diameter1-1/4 to 2-5/16 in
-
Overall Length3-1/2 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberYSS642
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
