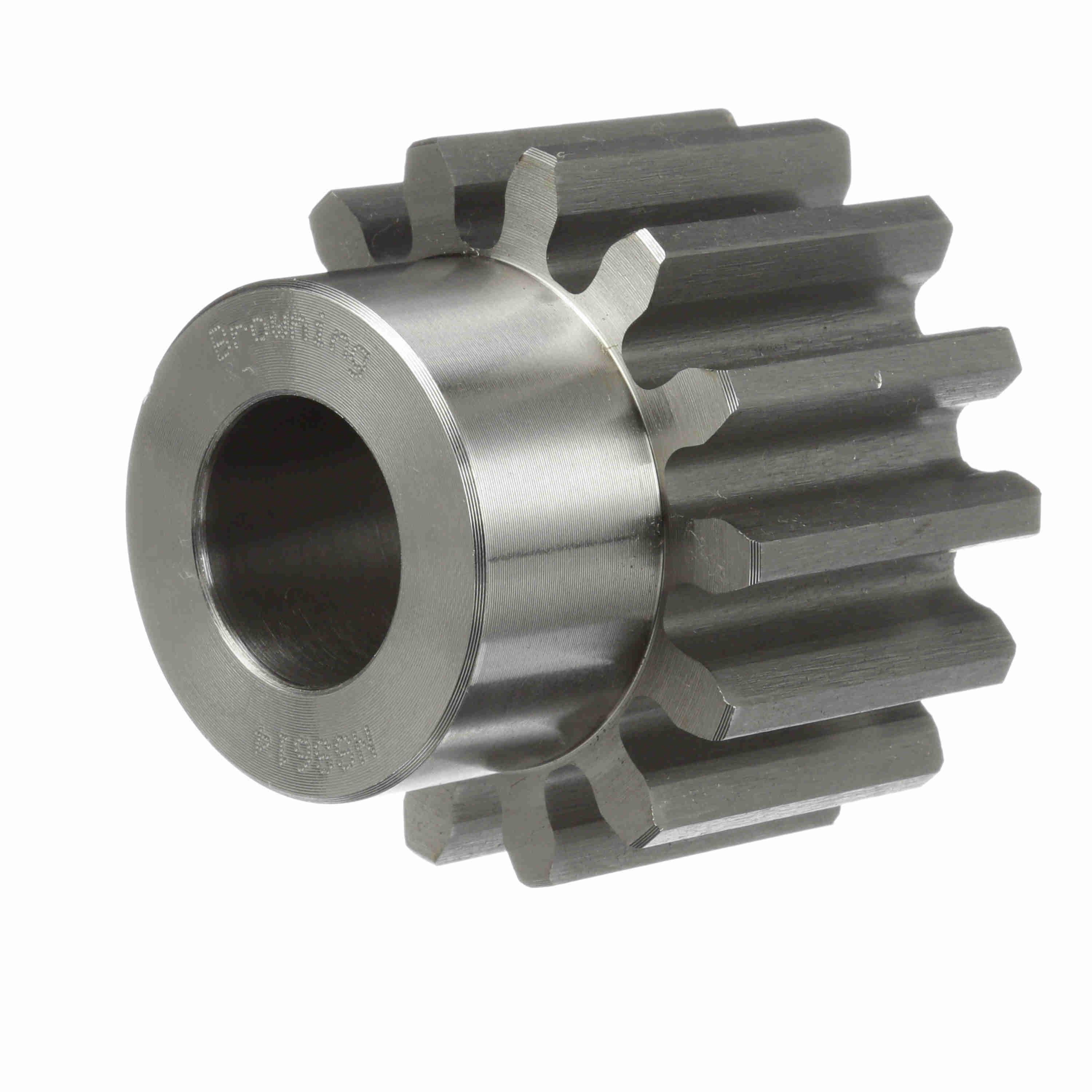

Browning 14-TOOTH 6-PITCH SPUR GEARS BRW NS-S-6-14
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289154074
-
Manufacturer Part Number1212661
-
CountryUSA
-
Face Width1-1/2 in
-
Pitch Diameter2.333 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter1.813 in
-
Hub Projection7/8 in
-
Diametral Pitch6
-
Number of Teeth14
-
Outside Diameter2.66 in
-
Bore Diameter1 to 1-1/8 in
-
Overall Length2-3/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS614
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
