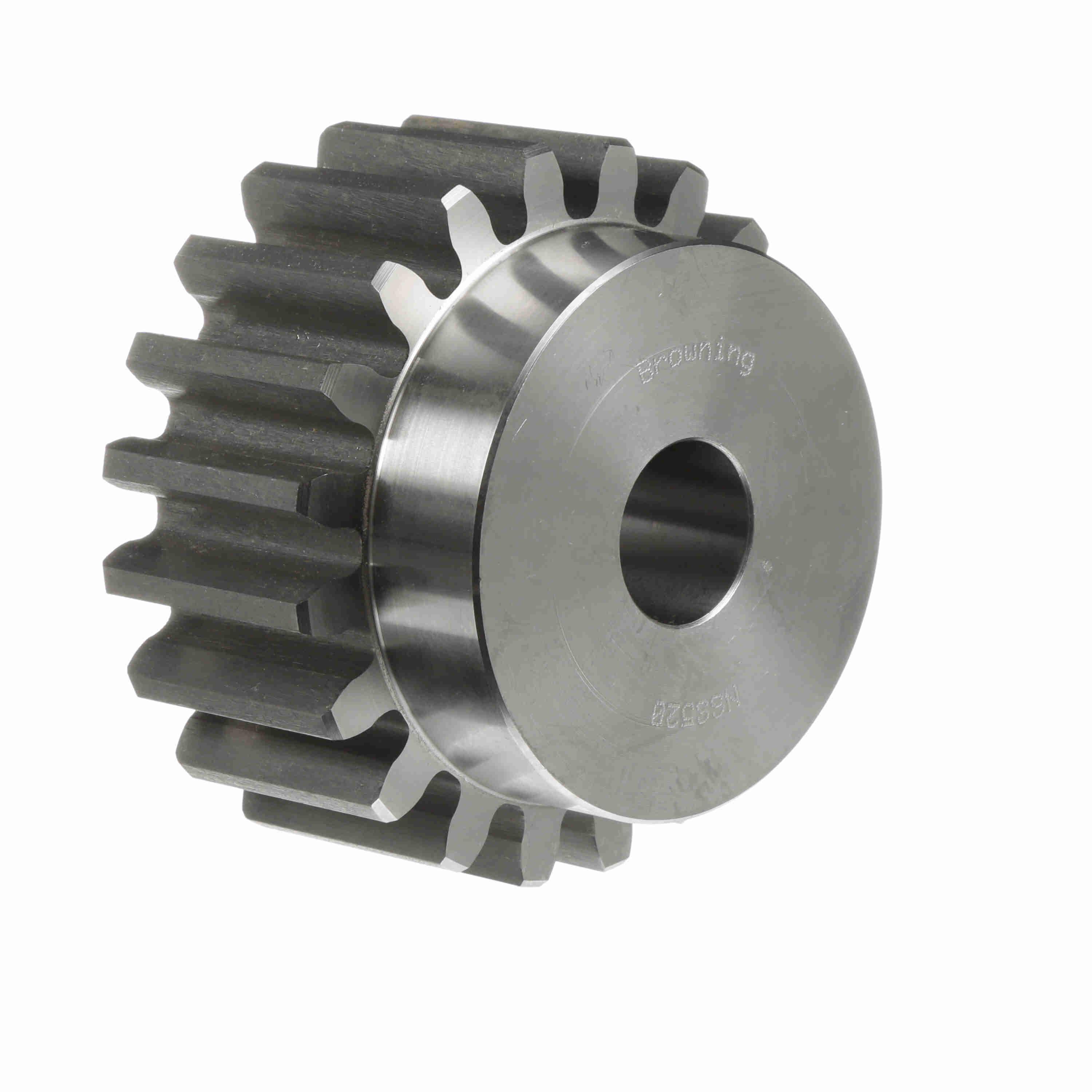

Browning® 1212919 Minimum Plain Bore Type 2 Spur Gear, 5 Diametral Pitch, 14.5 deg Pressure Angle, 1-3/4 in W Face, 14 Teeth, 2.8 in Dia Pitch, 1-1/16 to 1-3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289304264
-
Manufacturer Part Number1212919
-
CountryUSA
-
Face Width1-3/4 in
-
Pitch Diameter2.8 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter2.188 in
-
Hub Projection7/8 in
-
Diametral Pitch5
-
Number of Teeth14
-
Outside Diameter3.2 in
-
Bore Diameter1-1/16 to 1-3/8 in
-
Overall Length2-5/8 in
- Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
-
Alternative Part NumberNSS514
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
