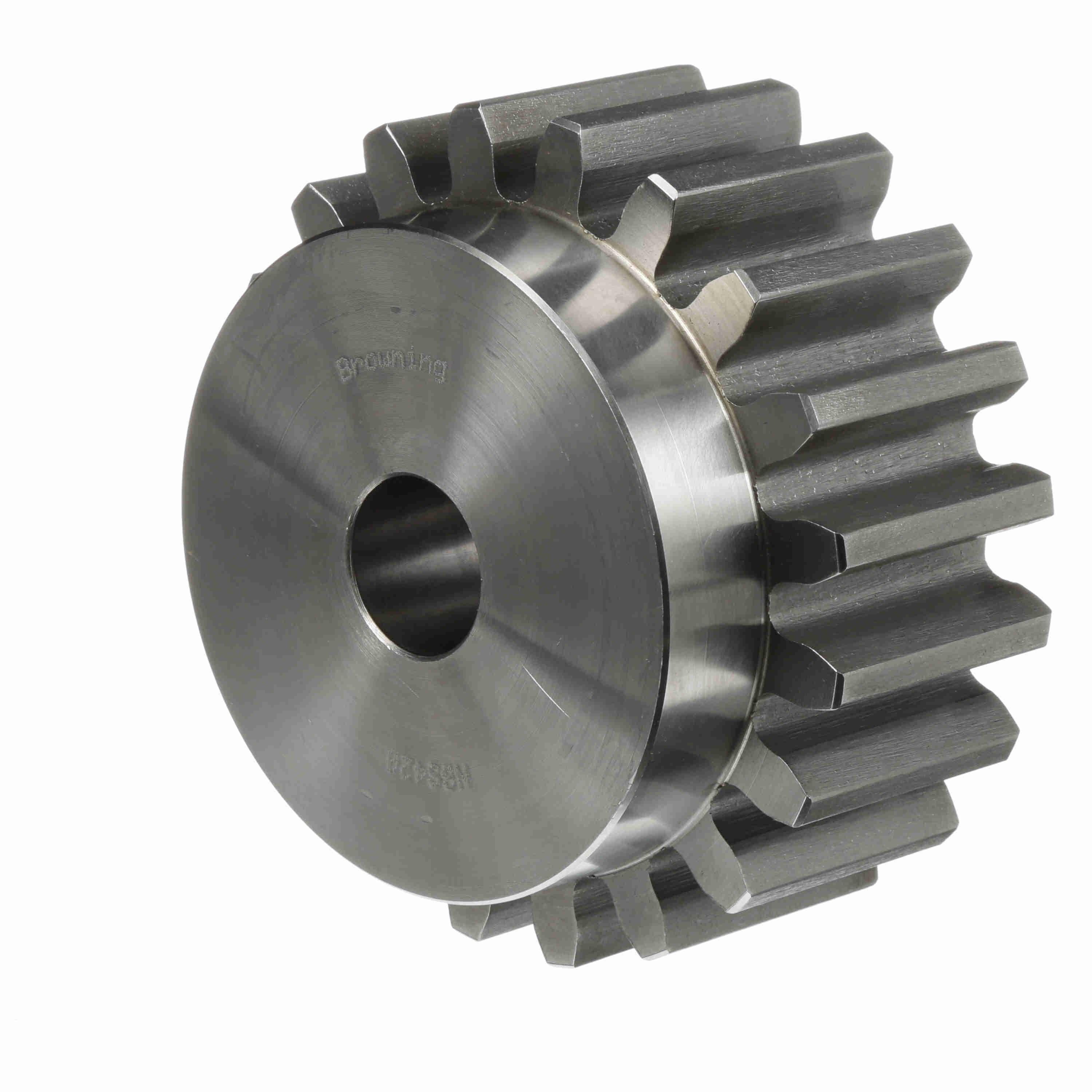

Browning® 1213131 Minimum Plain Bore Type 2 Spur Gear, 4 Diametral Pitch, 14.5 deg Pressure Angle, 2 in W Face, 20 Teeth, 5 in Dia Pitch, 1-1/8 to 3 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289174508
-
Manufacturer Part Number1213131
-
CountryUSA
-
Face Width2 in
-
Pitch Diameter5 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter4-1/4 in
-
Hub Projection7/8 in
-
Diametral Pitch4
-
Number of Teeth20
-
Outside Diameter5-1/2 in
-
Bore Diameter1-1/8 to 3 in
-
Overall Length2-7/8 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Without hardened teeth
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS420
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
