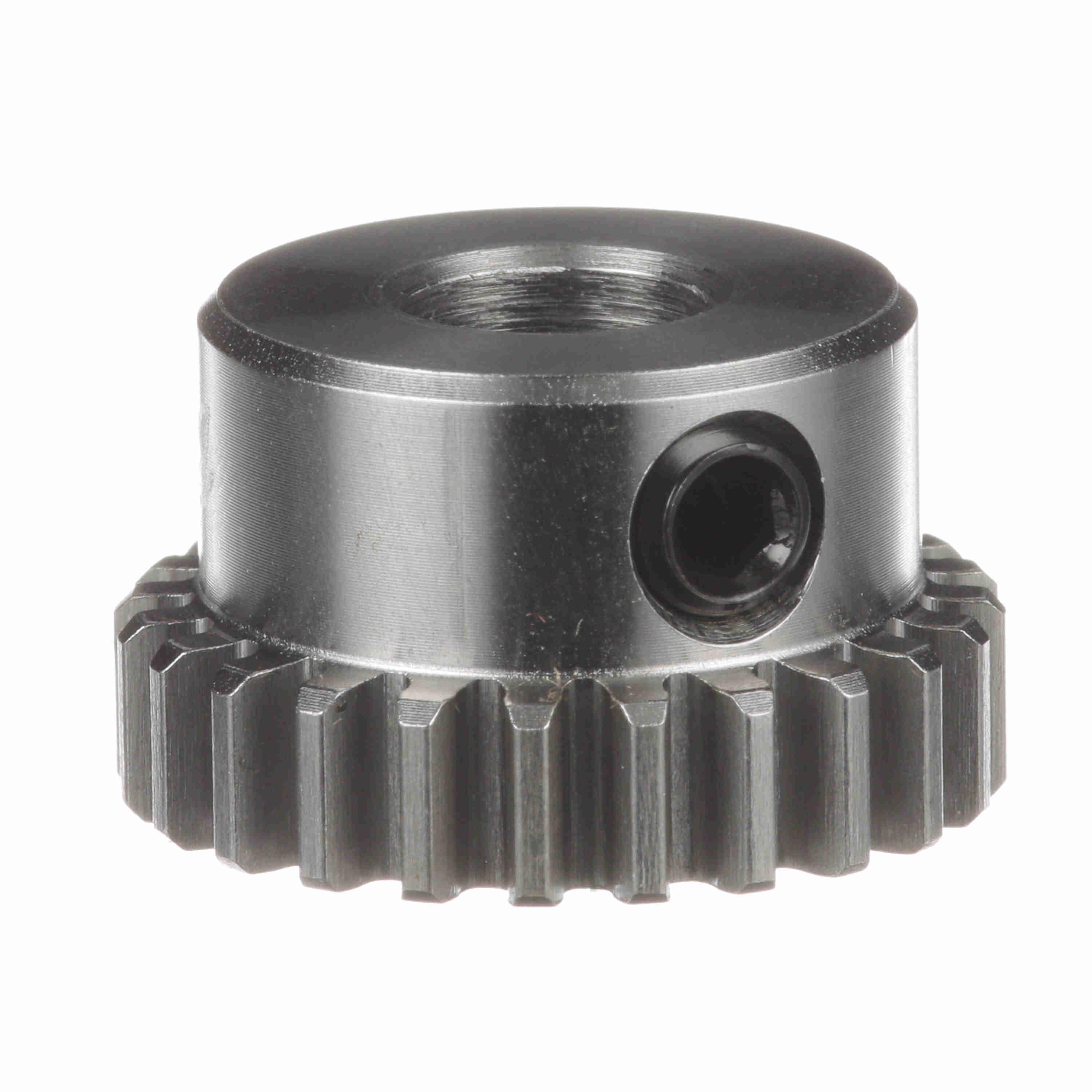

Browning 24-TOOTH 24-PITCH SPUR GEARS BRW NS-S-24-24
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289101467
-
Manufacturer Part Number1210277
-
CountryUSA
-
Face Width1/4 in
-
Pitch Diameter1 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter7/8 in
-
Hub Projection3/8 in
-
Diametral Pitch24
-
Number of Teeth24
-
Outside Diameter1.08 in
-
Bore Diameter3/8 in
-
Overall Length5/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS2424
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
