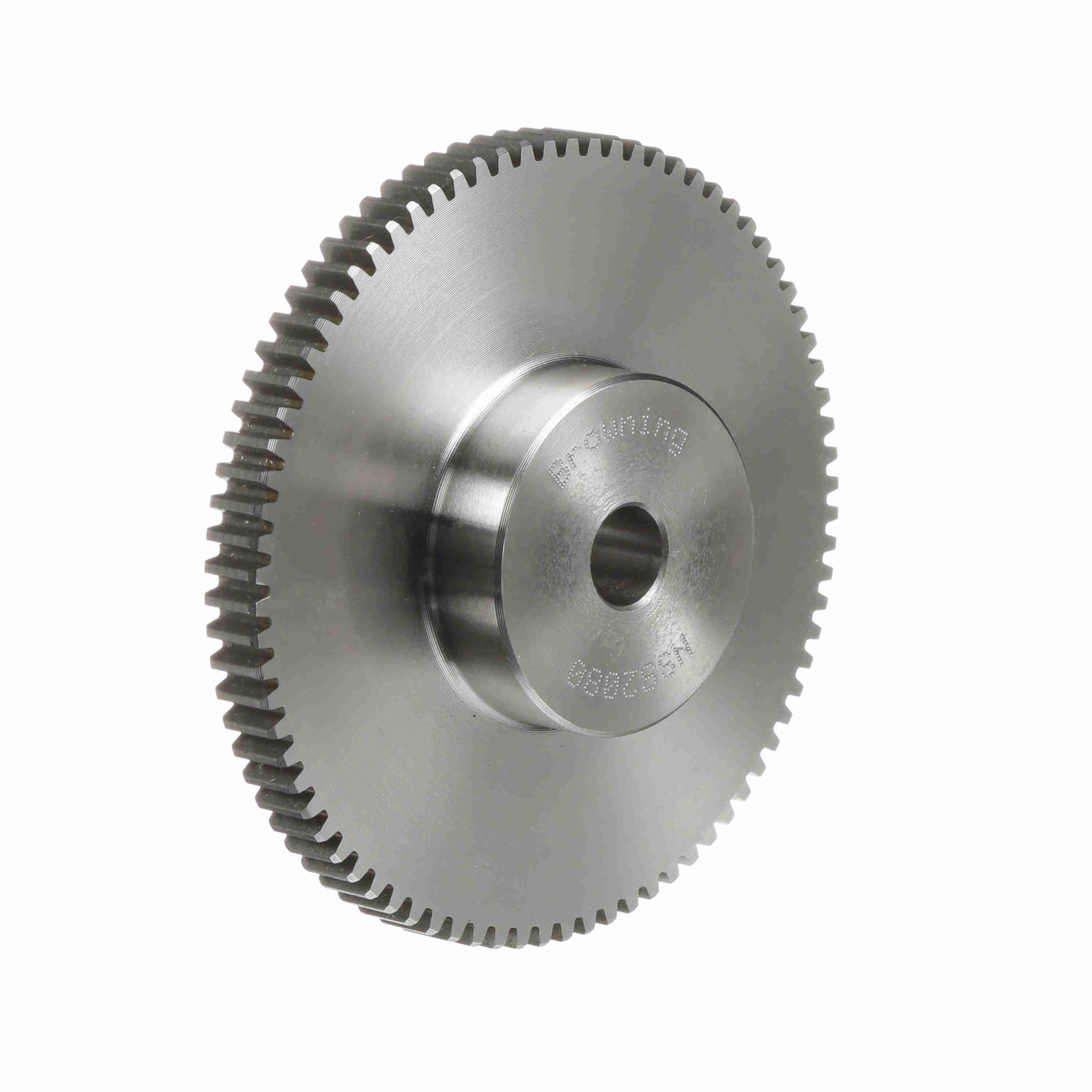

Browning 84-TOOTH 20-PITCH SPUR GEARS BRW NS-S-20-84
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289252022
-
Manufacturer Part Number1210814
-
CountryUSA
-
Face Width3/8 in
-
Pitch Diameter4.2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter1.813 in
-
Hub Projection1/2 in
-
Diametral Pitch20
-
Number of Teeth84
-
Outside Diameter4.3 in
-
Bore Diameter1/2 to 1 in
-
Overall Length7/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS2084
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
