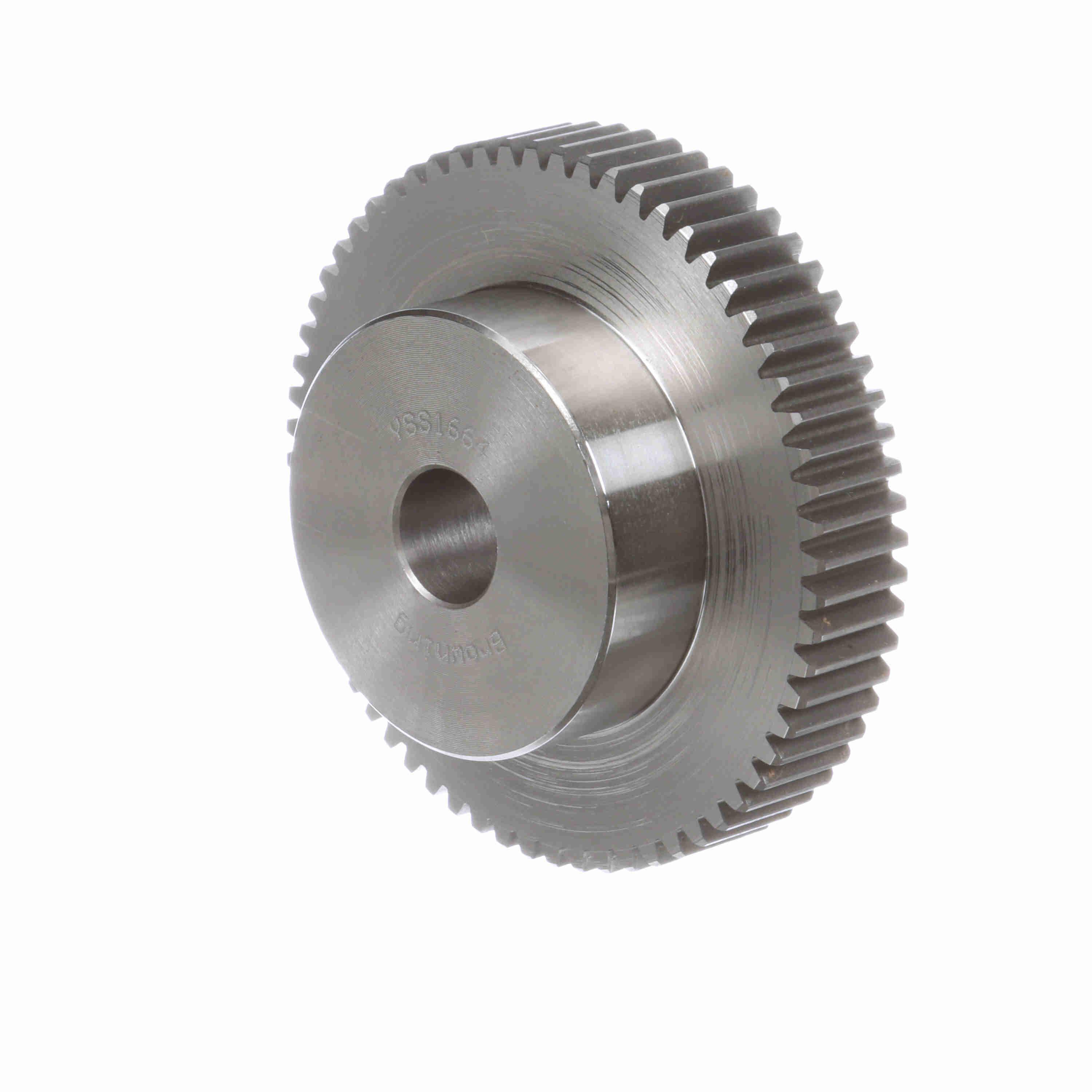

Browning® 1218536 Minimum Plain Bore Type 2 Spur Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 3/4 in W Face, 64 Teeth, 4 in Dia Pitch, 3/4 to 1-3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289206094
-
Manufacturer Part Number1218536
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter4 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter2-1/2 in
-
Hub Projection3/4 in
-
Diametral Pitch16
-
Number of Teeth64
-
Outside Diameter4.12 in
-
Bore Diameter3/4 to 1-3/8 in
-
Overall Length1-5/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberYSS1664
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
