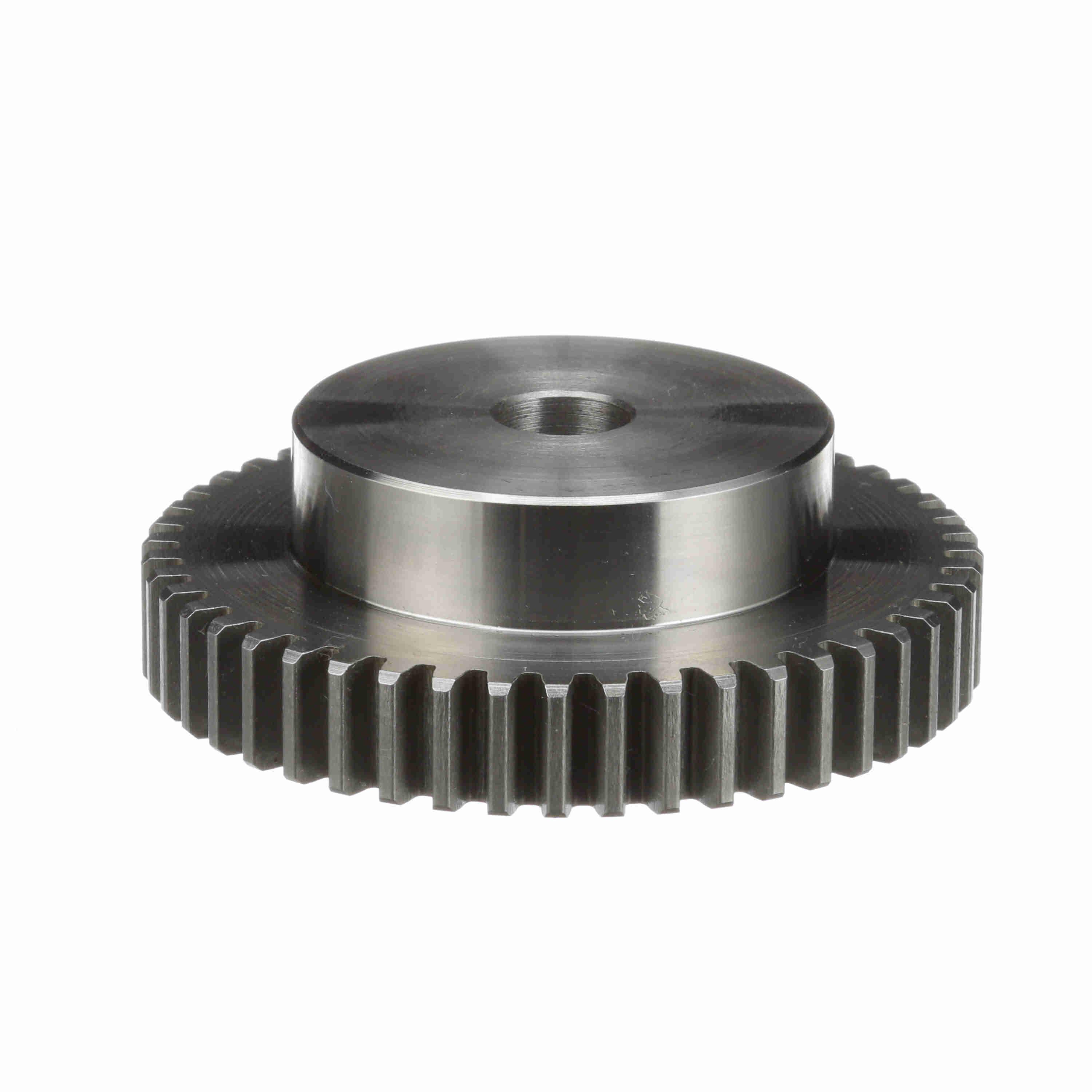

Browning® 1211176 Minimum Plain Bore Spur Gear, 16 Diametral Pitch, 14.5 deg, 1/2 in W Face, 48 Teeth, 3 in Dia Pitch, 1/2 in Dia Bore, Steel
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289242474
-
Manufacturer Part Number1211176
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter3 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter2 in
-
Hub Projection1/2 in
-
Diametral Pitch16
-
Number of Teeth48
-
Outside Diameter3.12 in
-
Bore Diameter1/2 in
-
Overall Length1 in
- Browning® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
-
Alternative Part NumberNSS1648
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Package DescriptionEACH
-
