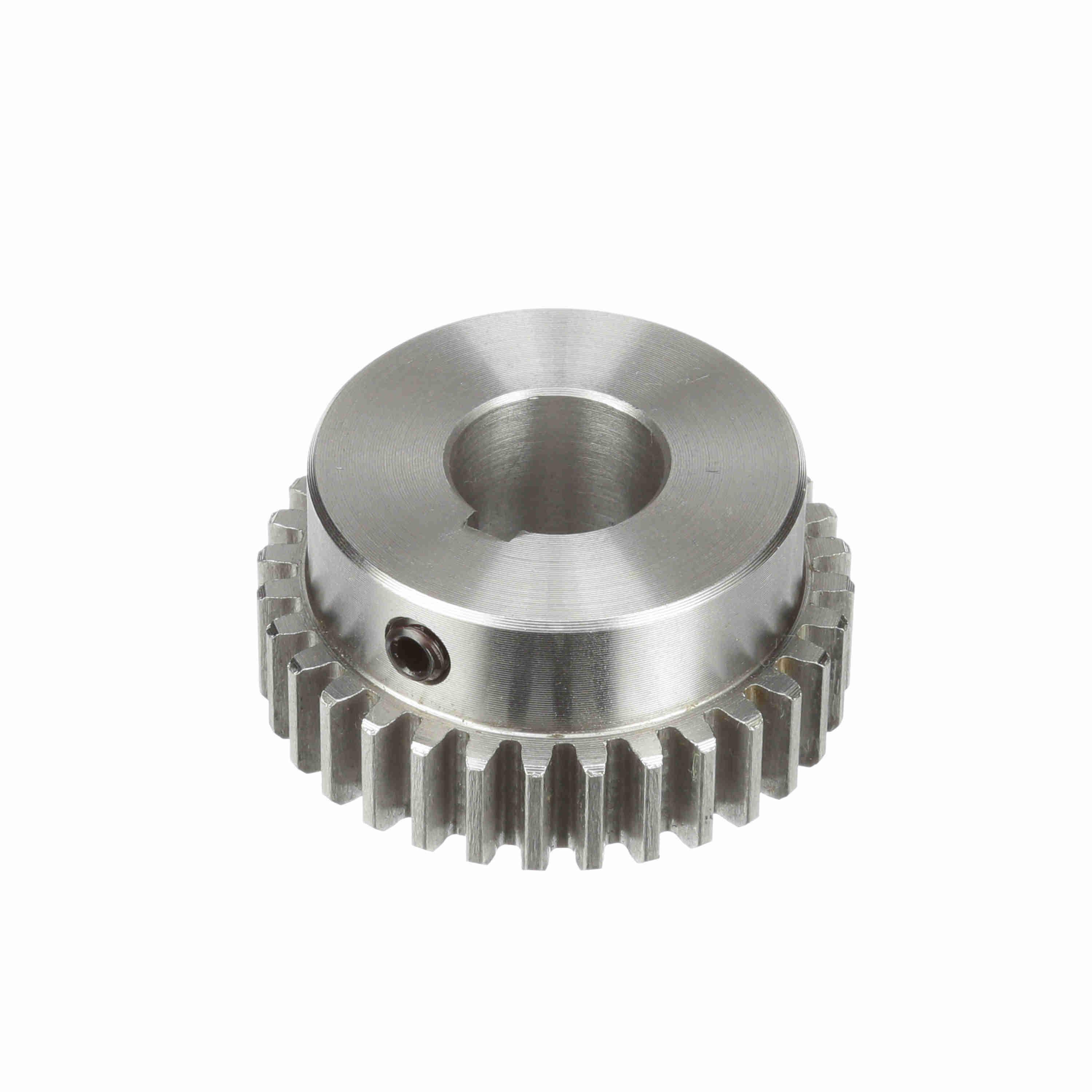

Browning 32-TOOTH 16-PITCH SPUR GEARS BRW NS-S-16-F-32 X 5/8
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289227181
-
Manufacturer Part Number1215474
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeFinished Bore
-
Hub Diameter1-3/4 in
-
Hub Projection1/2 in
-
Diametral Pitch16
-
Number of Teeth32
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.12 in
-
Bore Diameter5/8 in
-
Overall Length1 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS16F32X5/8
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
