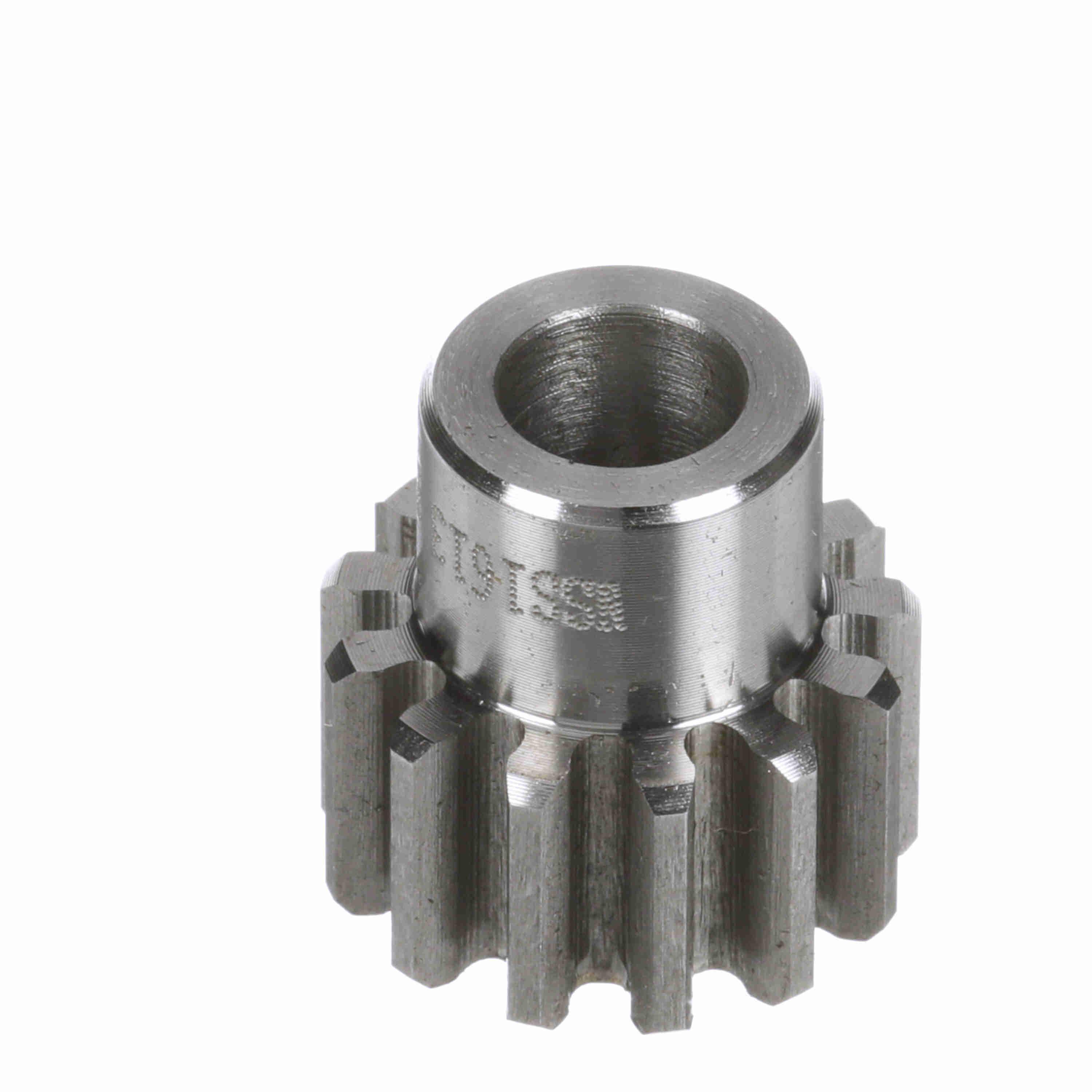

Browning 13-TOOTH 16-PITCH SPUR GEARS BRW NS-S-16-13
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289242245
-
Manufacturer Part Number1210970
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter0.813 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter5/8 in
-
Hub Projection7/16 in
-
Diametral Pitch16
-
Number of Teeth13
-
Outside Diameter0.93 in
-
Bore Diameter3/8 in
-
Overall Length15/16 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS1613
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
