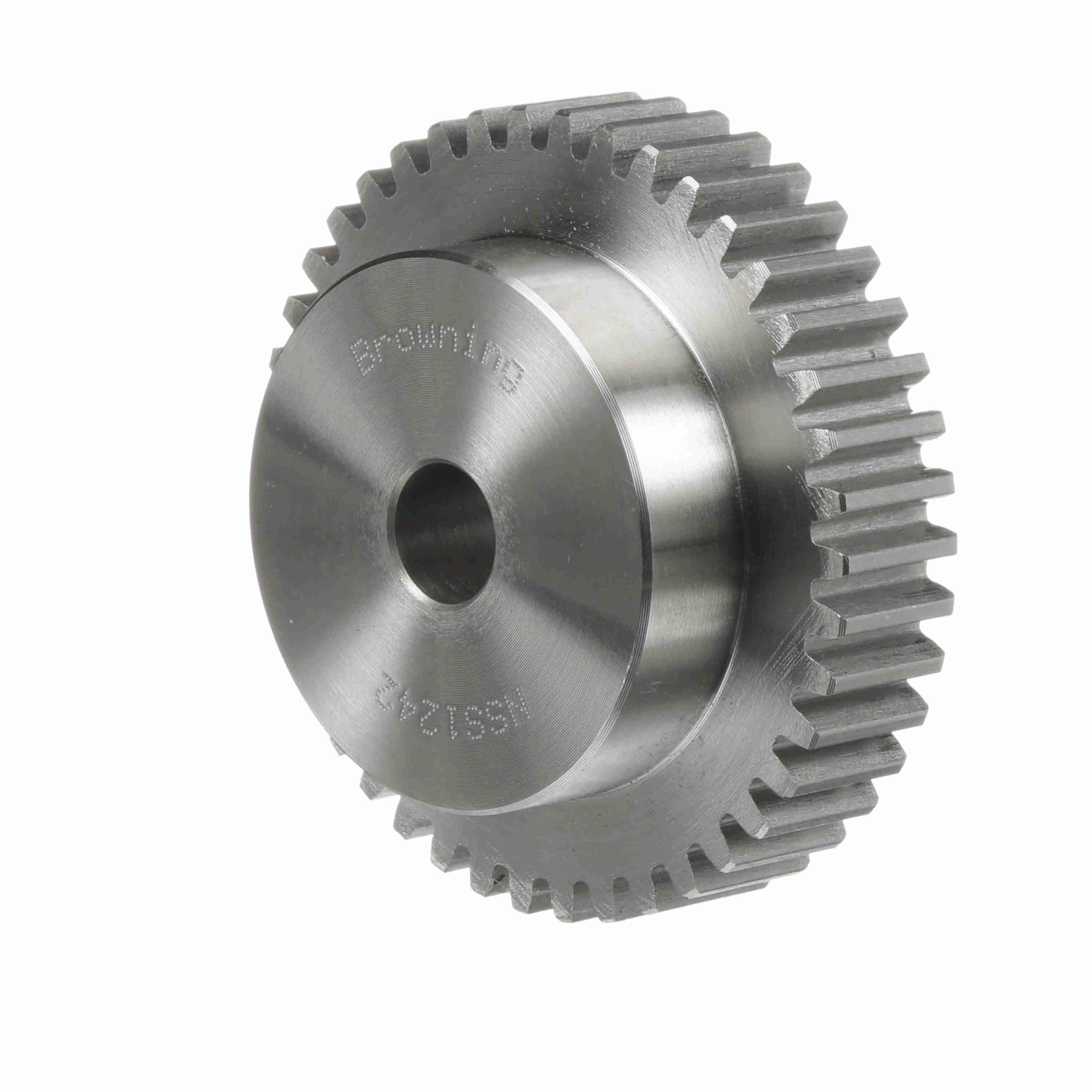

Browning 42-TOOTH 12-PITCH SPUR GEARS BRW NS-S-12-42
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289252862
-
Manufacturer Part Number1211598
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter3-1/2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter2-1/2 in
-
Hub Projection5/8 in
-
Diametral Pitch12
-
Number of Teeth42
-
Outside Diameter3.66 in
-
Bore Diameter5/8 in
-
Overall Length1-3/8 in
- Browning® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
-
Alternative Part NumberNSS1242
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
