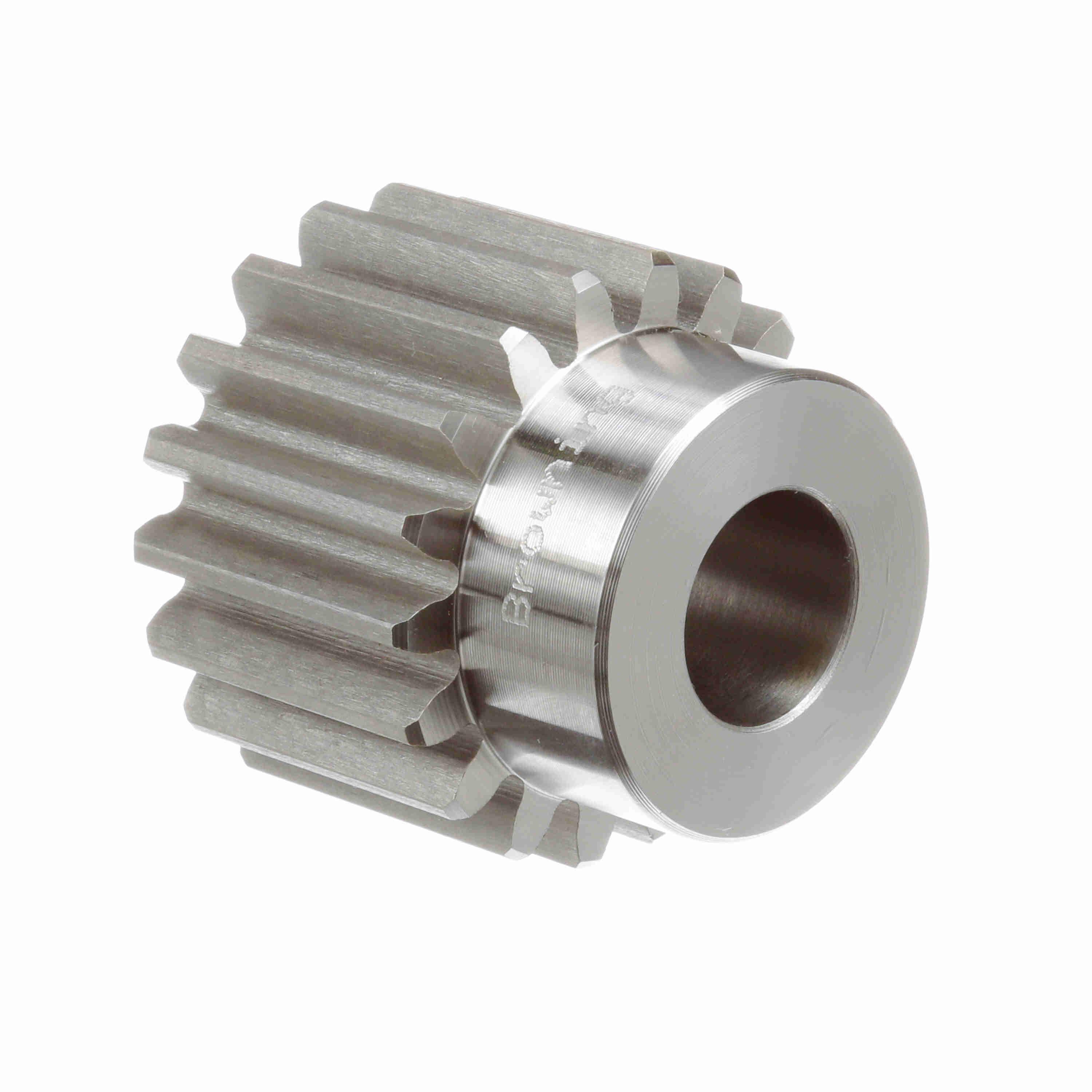

Browning® 1218874 Minimum Plain Bore Type 2 Spur Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 1-1/4 in W Face, 12 Teeth, 1.2 in Dia Pitch, 5/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289266425
-
Manufacturer Part Number1218874
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter1.2 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter0.906 in
-
Hub Projection5/8 in
-
Diametral Pitch10
-
Number of Teeth12
-
Outside Diameter1.4 in
-
Bore Diameter5/8 in
-
Overall Length1-7/8 in
- Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
-
Alternative Part NumberYSS1012
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
