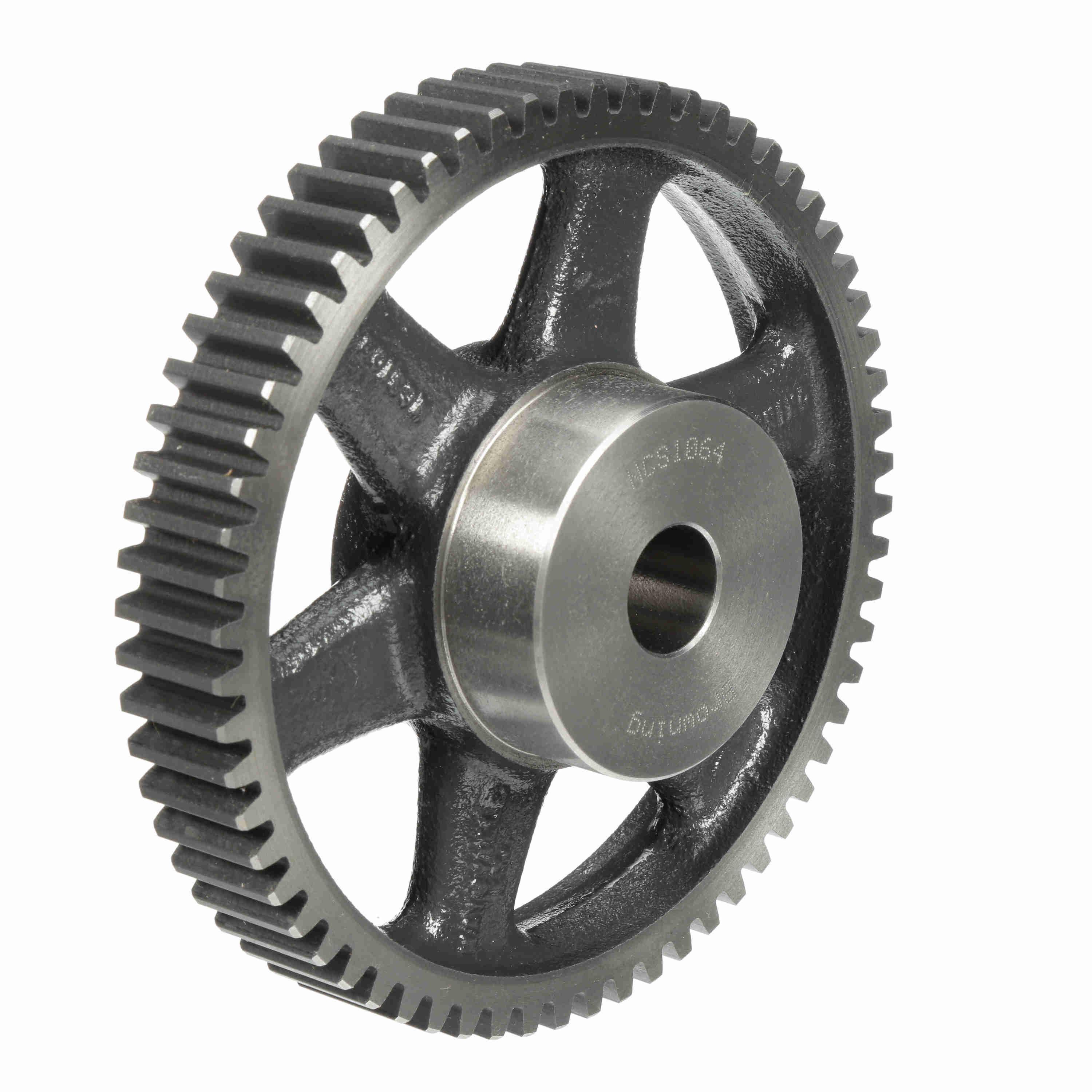

Browning® 1212109 Minimum Plain Bore Type 4 Spur Gear, 10 Diametral Pitch, 14.5 deg Pressure Angle, 1 in W Face, 65 Teeth, 6-1/2 in Dia Pitch, 7/8 to 1-9/16 in Dia Bore, Cast Iron
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289133444
-
Manufacturer Part Number1212109
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter6-1/2 in
-
MaterialCast Iron
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 4
-
Hub Diameter2-5/8 in
-
Hub Projection7/8 in
-
Diametral Pitch10
-
Number of Teeth65
-
Outside Diameter6.7 in
-
Bore Diameter7/8 to 1-9/16 in
-
Overall Length1-7/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCS1065
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
