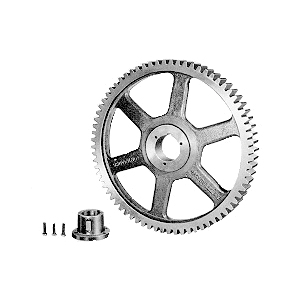

Browning 55-TOOTH 10-PITCH SPUR GEARS BRW NC-S-10-H-55
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289125395
-
Manufacturer Part Number1213941
-
CountryUSA
-

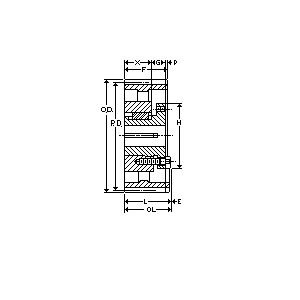

Face Width1 in
-
Pitch Diameter5-1/2 in
-
MaterialCast Iron
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeType 8
-
Hub Diameter2-1/2 in
-
Hub Projection5/16 in
-
Diametral Pitch10
-
Number of Teeth55
-
Keyway Size1/4 x 1/8, 3/16 x 3/32, 5/16 x 5/32, 1/8 x 1/16 in
-
Outside Diameter5.7 in
-
Bore Diameter3/8 to 1-1/2 in
-
Overall Length1-1/2 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
- Less expensive
- Without hardened teeth
-
Alternative Part NumberNCS10H55
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
