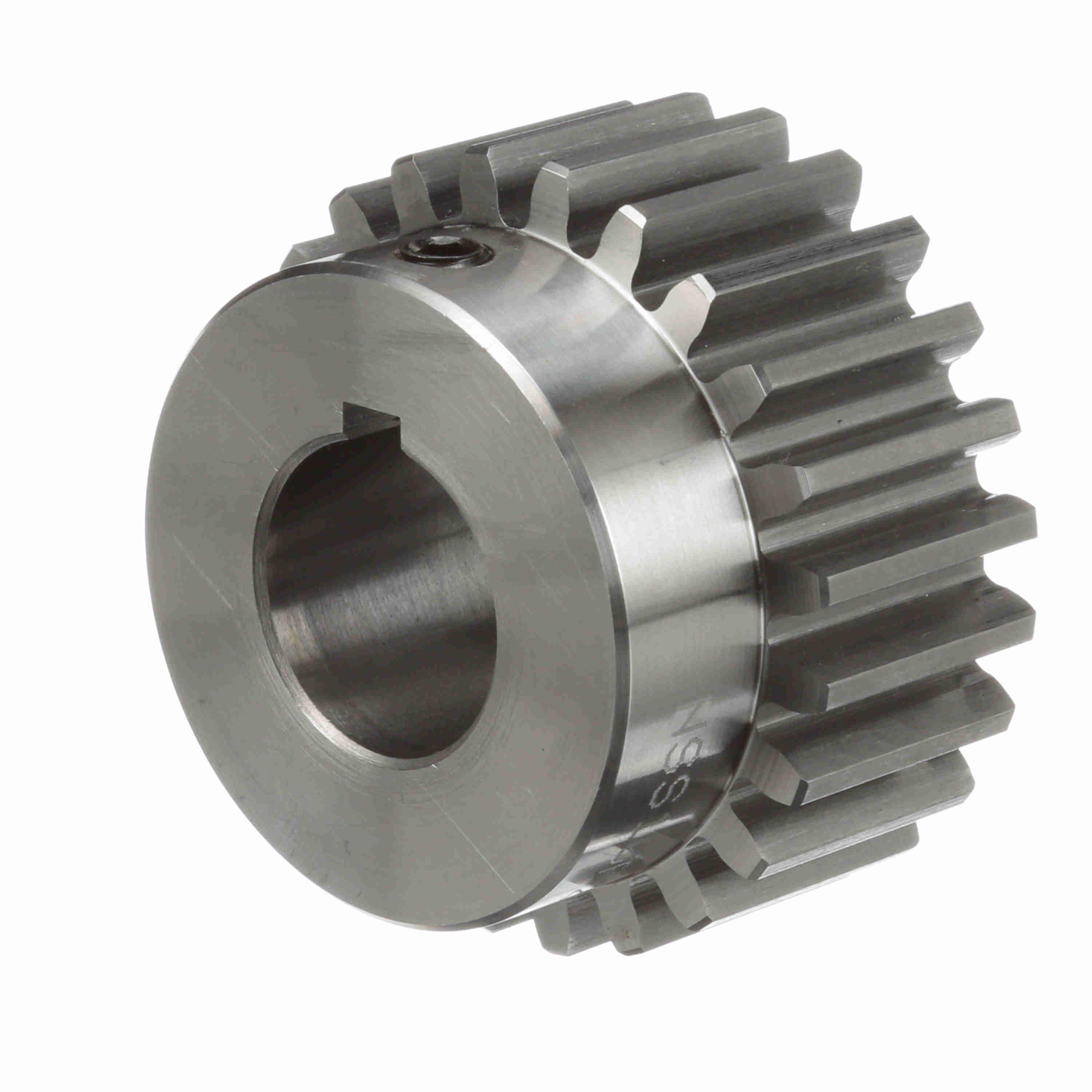

Browning® 1215789 Finished Bore Type 1 Spur Gear, 10 Diametral Pitch, 14.5 deg Pressure Angle, 1 in W Face, 24 Teeth, 2.6 in Dia Pitch, 1 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289237579
-
Manufacturer Part Number1215789
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter2.6 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeFinished Bore Type 1
-
Hub Diameter2.109 in
-
Hub Projection5/8 in
-
Diametral Pitch10
-
Number of Teeth24
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter2.6 in
-
Bore Diameter1 in
-
Overall Length1-5/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS10F24X1
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
