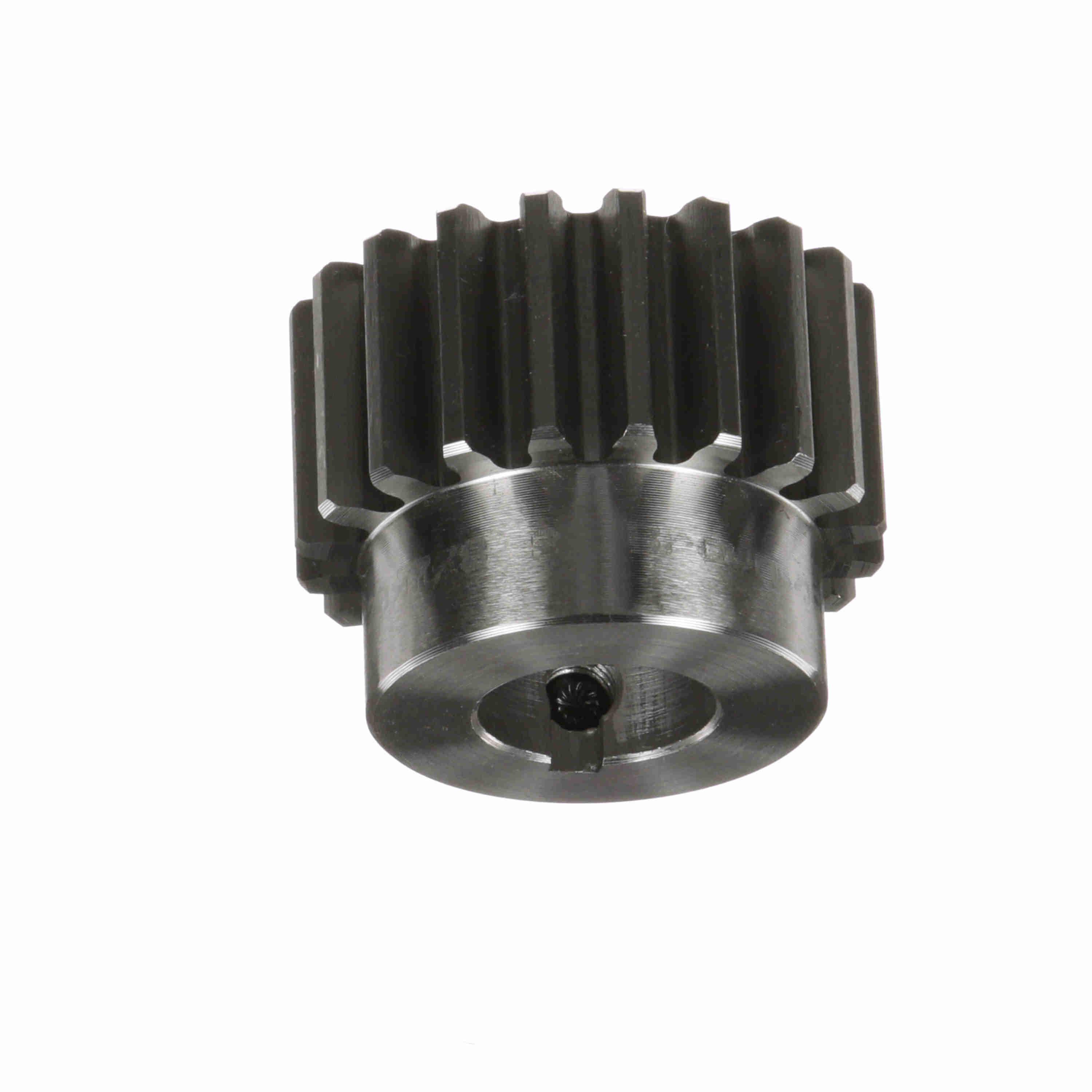

Browning 20-TOOTH 10-PITCH SPUR GEARS BRW NS-S-10-F-20 X 7/8
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289207466
-
Manufacturer Part Number1215755
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeFinished Bore Type 1
-
Hub Diameter1.719 in
-
Hub Projection5/8 in
-
Diametral Pitch10
-
Number of Teeth20
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.2 in
-
Bore Diameter7/8 in
-
Overall Length1-5/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS10F20X7/8
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
