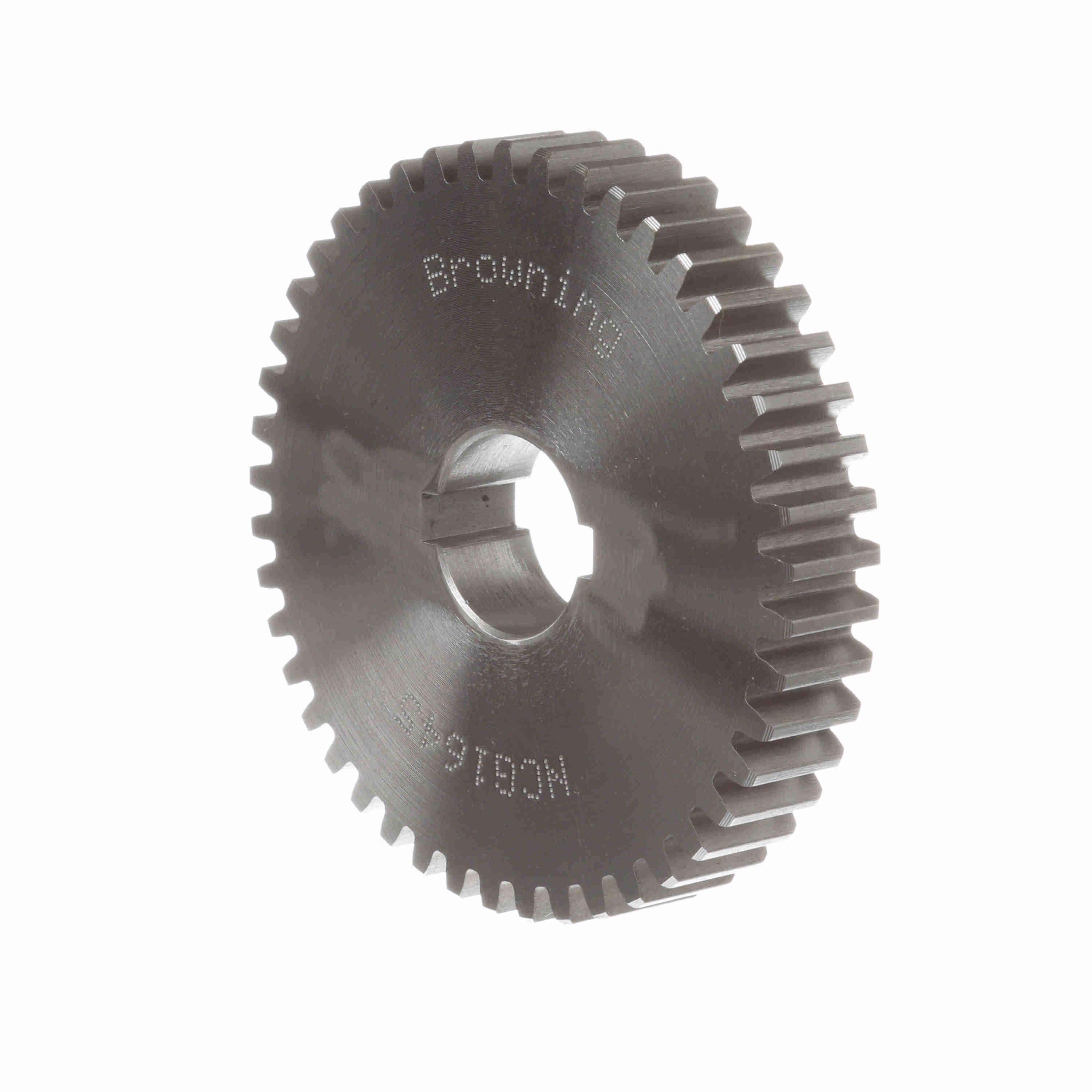

Browning® 1222678 Minimum Plain Bore Type C1 Change Gear Without Hardened Teeth, 3/4 in Dia Bore
Browning® is one of the most comprehensive lines of off-the shelf gears in the industry, including spur, miter and bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 dp and 14-1/2 deg pressure angle from 48 to 3 dp all designed to increase output, reduce costs and avoid specials.
-
BrandBrowning®
-
UPC662289219179
-
Manufacturer Part Number1222678
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter2.813 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch16
-
Number of Teeth45
-
Outside Diameter2.93 in
-
Bore Diameter3/4 in
-
Overall Length1/2 in
- Thousands of shaft-ready finished bore and bushing types eliminate rework costs, assure true-running precision at all times
- More stock sizes made of steel and weldability plus greater strength, at cast iron prices
- Extra tooth depth and larger radii provide stronger teeth, a deeper lubrication reservoir and more clearance
- Many odd tooth sizes
- Custom gear capabilities up to 60 in Dia and 17 in face
-
Alternative Part NumberNCG1645
-
UNSPSC31171700
-
Standards/ApprovalsAGMA Standard
-
