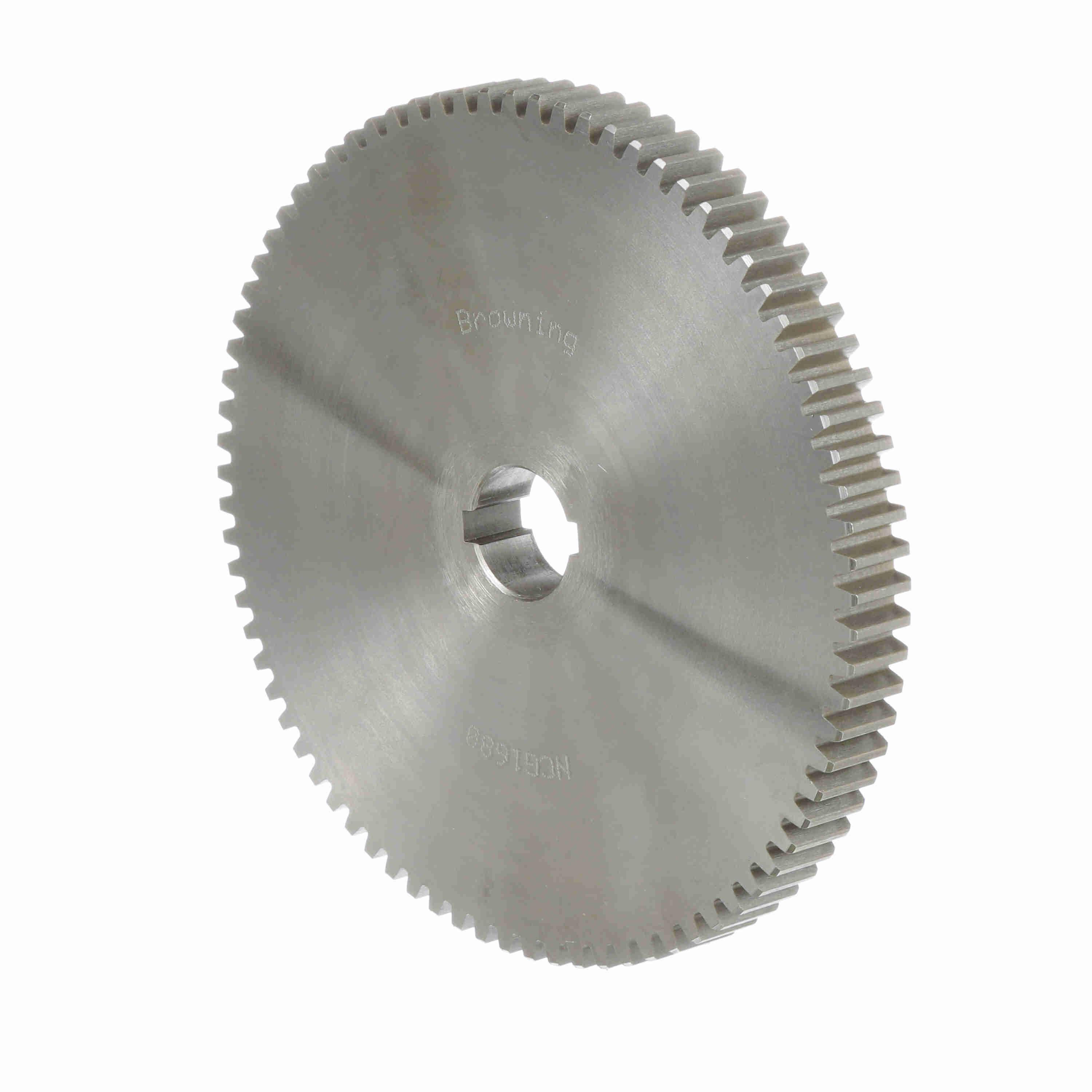

Browning 80-TOOTH 16-PITCH CHANGE GEARS BRW N-CG-16-80
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289109487
-
Manufacturer Part Number1223015
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter5 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch16
-
Number of Teeth80
-
Outside Diameter5.12 in
-
Bore Diameter3/4 in
-
Overall Length1/2 in
- Are stocked with finished bore and two keyways
- For use with stock change gear bushings
- Used for easy ratio changes
- Can weld on a steel hub to create a spur gear
- Can drill and tap for bolt on applications
- Can weld on steel hub for use with Browning® split taper bushing
- Browning Change Gears, change gear bushing sold separately
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCG1680
-
UNSPSC31171700
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
