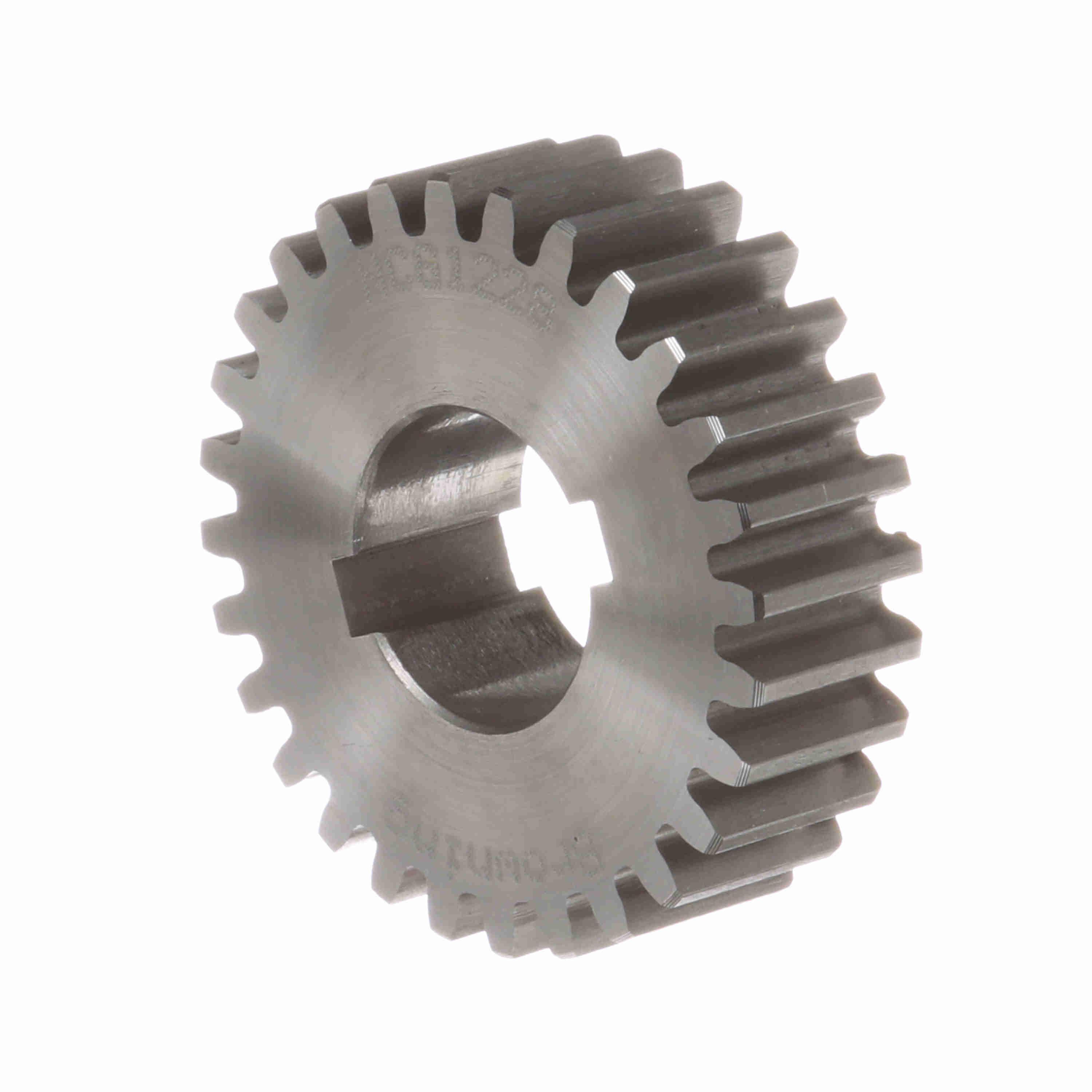

Browning 28-TOOTH 12-PITCH CHANGE GEARS BRW N-CG-12-28
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289119936
-
Manufacturer Part Number1223411
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter2.333 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch12
-
Number of Teeth28
-
Outside Diameter2-1/2 in
-
Bore Diameter1 in
-
Overall Length3/4 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCG1228
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
